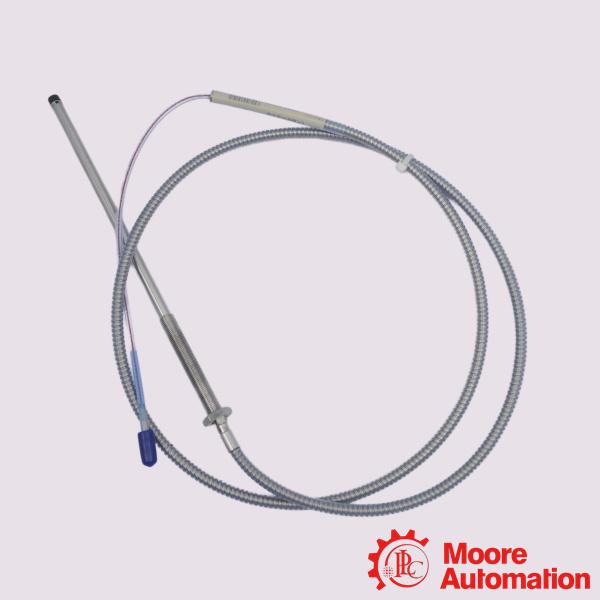

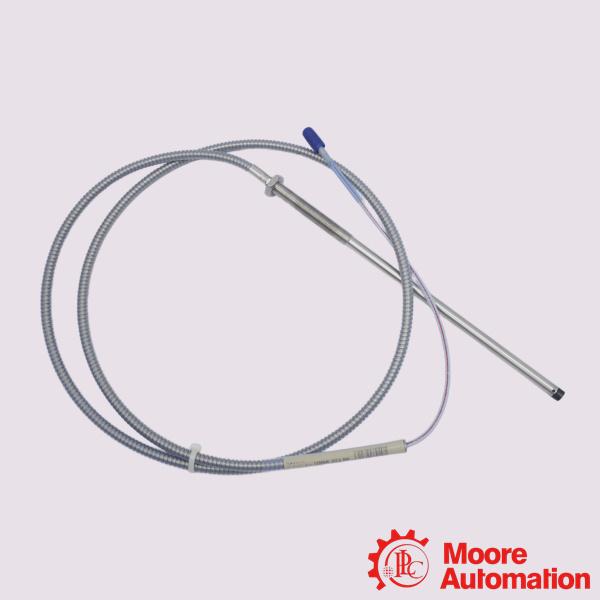

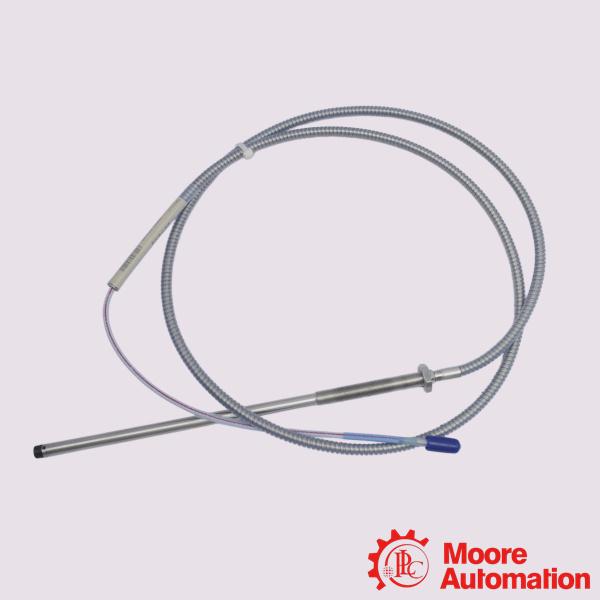

Bently Nevada 330194-00-06-05-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
330194-00-06-05-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330194-00-06-05-00 is an Extended Temperature Range (ETR) proximity probe. It is part of the 3300 XL series and is specifically for non-contact eddy-current displacement measurement in harsh industrial environments.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Oil & Gas: Continuous monitoring of critical assets like compressors, pumps, and turbines in upstream, midstream, and downstream operations.
Power Generation: Real-time protection for steam turbines, gas turbines, and generators to prevent mechanical failures and ensure grid stability.
Petrochemical & Chemical Plants: Ensuring the reliable operation of reactors, blowers, and process pumps.
Heavy Manufacturing: Monitoring gearboxes, conveyors, crushers, and kilns in industries such as cement, steel, mining, and pulp and paper.
Frequently Asked Questions (FAQ)
Q:What is the normal gap voltage range for this sensor system?
A:When paired with a 3300 XL Proximitor Sensor and properly gapped against an AISI 4140 steel target surface, the typical operating gap voltage sits around −9 VDC to −11 VDC at the center of its linear range.
Q:Is the 330194-00-06-05-00 a direct replacement for older parts?
A:Yes. The 330194 series functions as a direct, modern, migration-ready upgrade for older, discontinued Bently Nevada probe lines like the 330100 series, matching the physical dimensions and core system compatibility.
Q:What makes an ETR probe different from a standard Bently Nevada probe?
A:The Extended Temperature Range (ETR) series uses high-durability perfluoroalkoxy (PFA) insulated probe cabling rather than standard FEP insulation. This allows the probe and cable assembly to safely withstand much higher ambient temperatures in harsh operating environments.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330194-00-06-05-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
60 mm |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistanc |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
