in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
35x24x2cmWeight:
0.24kgCountry of Origin: :
USADescription:

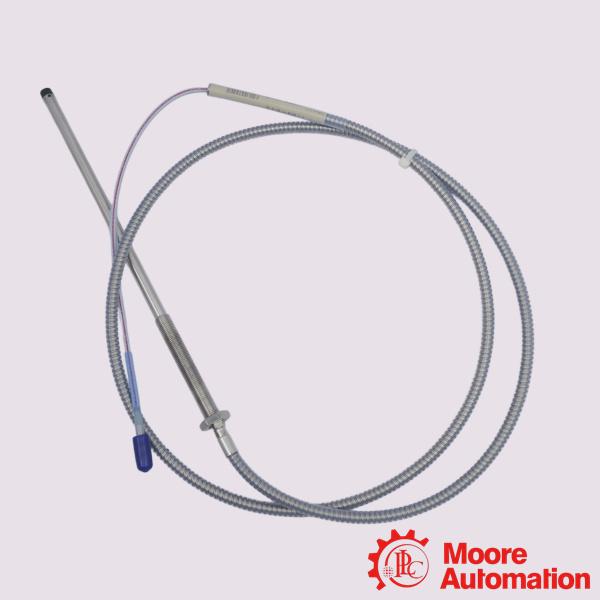

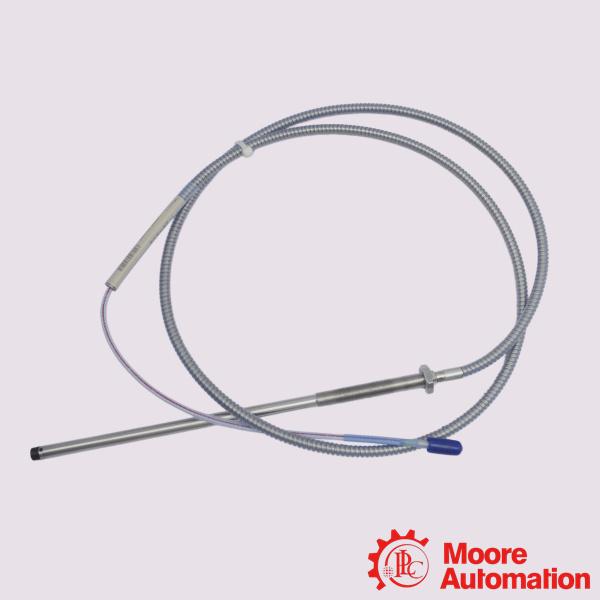

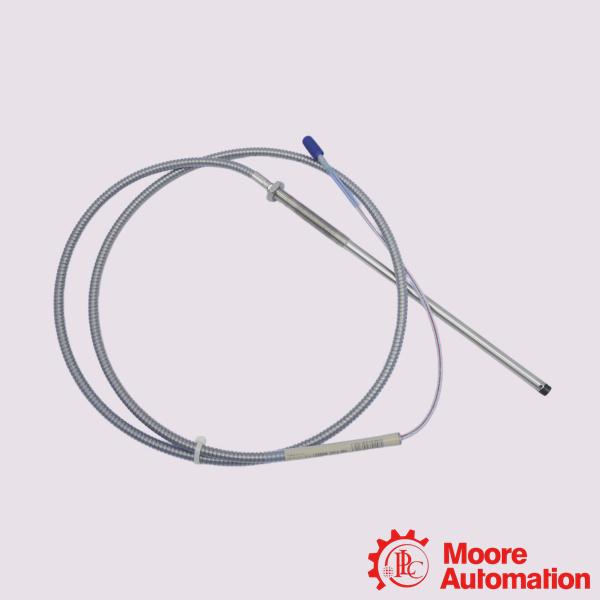

Bently Nevada 330194-00-05-90-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
330194-00-05-90-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330194-00-05-90-00 is a component of the 3300 XL 8 mm Proximity Transducer System, specifically configured as an 8 mm proximity probe. These systems use non-contacting eddy current technology to monitor critical rotating machinery, primarily focused on measuring radial vibration, axial position, and speed.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Fluid-Film Bearing Machines: The primary application is measuring rotor shaft position and vibration within the clearances of fluid-film bearings.
Steam and Gas Turbines: Ideal for measuring shaft displacement and vibration in harsh environments, including steam turbine "dry end" (DE) settings.
Oil and Gas Infrastructure: Used for reliable vibration monitoring in offshore rigs, refineries, and other hazardous areas where API 670 standards are required.
Power Generation: Monitoring centrifugal air compressors, large motors, and fans to prevent mechanical failures.
Frequently Asked Questions (FAQ)
Q:Do I need an extension cable for this probe?
A:No, because this configuration features a 9.0-meter total length option (-90). Standard Bently Nevada 3300 XL proximitor systems must have a total system length of either 5.0 or 9.0 meters to function accurately. Since this probe's internal cable spans the full 9.0 meters, it connects directly into a 9.0-meter rated Proximitor Sensor without any intermediate extension cable.
Q:Is this probe interchangeable with older Bently Nevada systems?
A:Yes. The 3300 XL 8 mm probe components are designed to be both physically and electrically interchangeable with non-XL 3300 5 mm and 8 mm components. However, you must always match the total system length (9.0m) to the specific Proximitor sensor rating to prevent calibration distortions.
Q:What does the stainless steel armor protect against?
A:The flexible AISI 302 or 304 stainless steel armor (-330194 base trait) covers the triaxial cable with an additional outer jacket. It provides rugged physical protection against abrasion, crushing, pinching, and flying debris inside the machine casing.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330194-00-05-90-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
50 mm |
|
Total Length Option |
9.0 meters (29.5 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistanc |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
