in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.6x112cmWeight:
0.12kgCountry of Origin: :
USADescription:

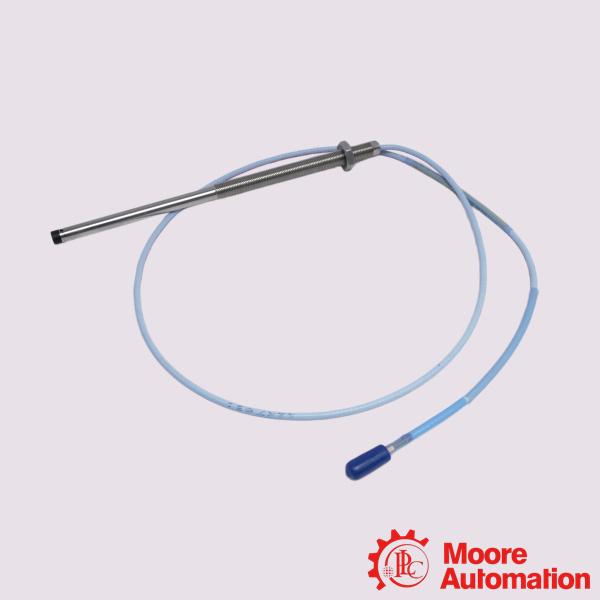

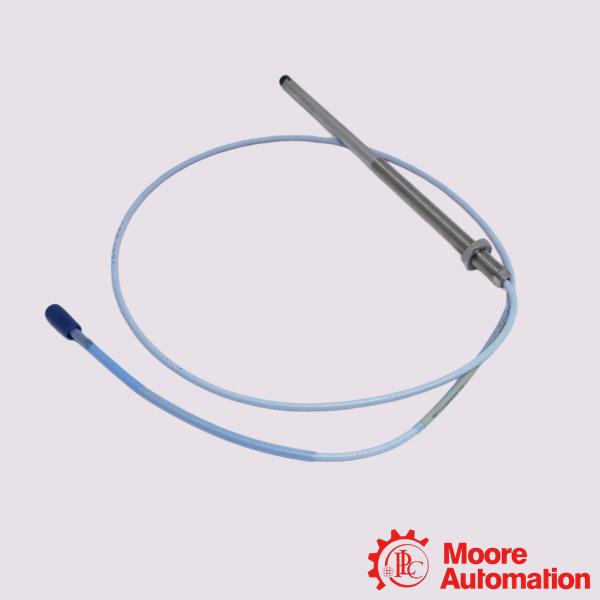

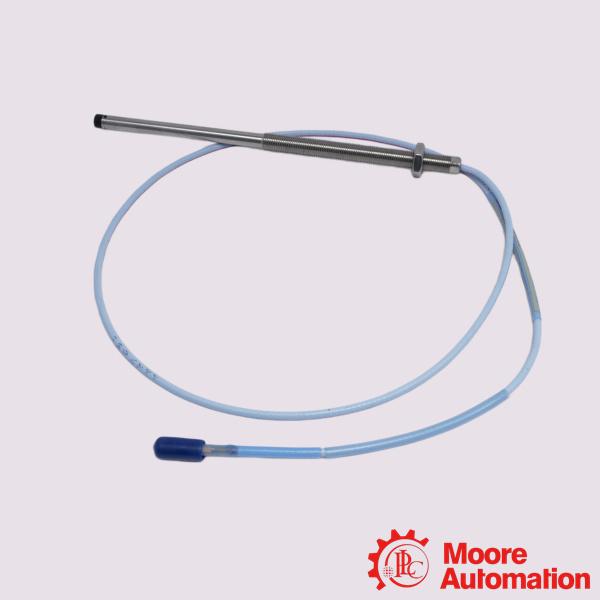

Bently Nevada 330193-10-20-05-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
330193-10-20-05-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330193-10-20-05-00 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 metric thread and a stainless steel armored cable. It is used within a larger transducer system to perform non-contacting static displacement and dynamic vibration measurements on industrial rotating machinery.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Power Generation: Deployed heavily on large-scale steam turbines, gas turbines, and hydro-generators to watch for shaft misalignment, unbalance, and rotor stability.
Oil & Gas (Upstream & Downstream): Installed on critical multi-stage centrifugal compressors, high-pressure water injection pumps, and turboexpanders across refineries and offshore platforms.
Chemical & Petrochemical Processing: Utilized on process gas compressors, large process fans, and mixers where machine downtime stops an entire manufacturing process line.
Water & Wastewater Treatment: Placed on high-capacity intake pumps, effluent pumps, and aeration blowers to enforce proactive predictive maintenance routines.
Frequently Asked Questions (FAQ)
Q:What type of measurements does this probe take?
A:The probe operates on the eddy current principle to measure the physical distance between its tip and a target conductive surface (typically an AISI 4140 steel shaft). It handles both static position (axial displacement) and dynamic movement (radial vibration).
Q:Can I connect this probe directly to a monitor without an extension cable?
A:No, this variant (-05-) has a 0.5-meter overall electrical length. It requires a matched extension cable—such as the standard Bently Nevada 3300 XL Extension Cable—to reach the necessary 5-meter or 9-meter total electrical system length required by the Proximitor sensor.
Q:Can this sensor be installed in fiberglass housings?
A:Yes. The 3300 XL Proximitor sensor has exceptional immunity to radio frequency (RFI) and electromagnetic interference (EMI), satisfying European CE mark requirements without needing metallic housings or specialized conduit.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330193-10-20-05-00 |
|
Unthreaded Length Option |
10 mm |
|
Overall Case Length Option |
200 mm |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistanc |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
