in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.5x122cmWeight:
0.06kgCountry of Origin: :
USADescription:

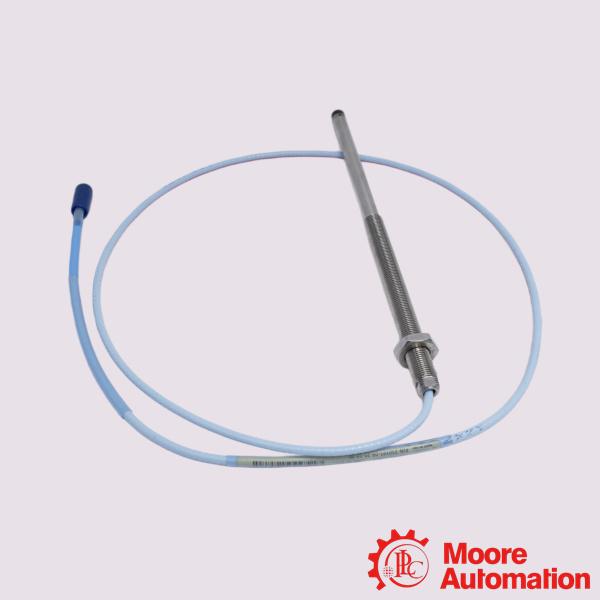

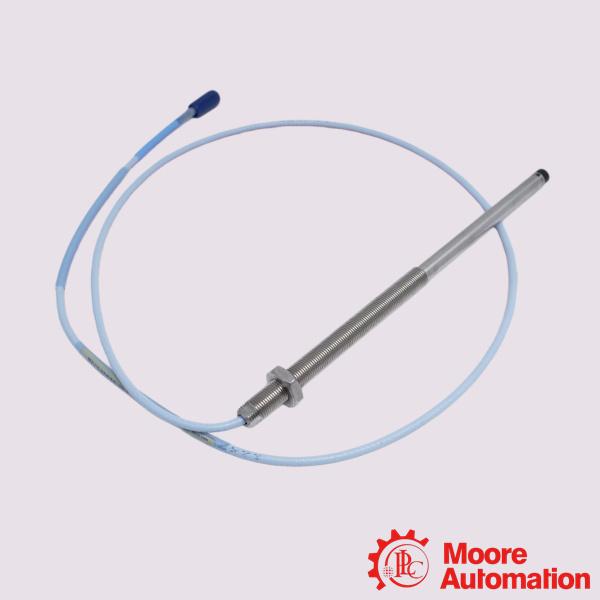

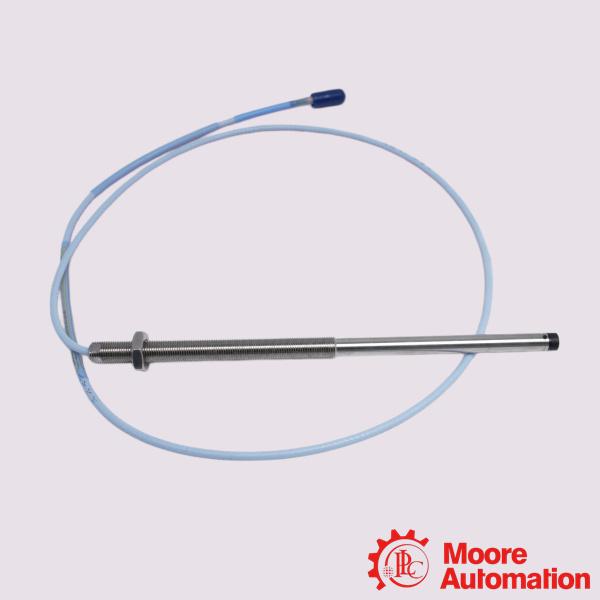

Bently Nevada 330193-00-08-10-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
330193-00-08-10-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330193-00-08-10-00 is a 3300 XL Extended Temperature Range Extension Cable used within eddy current proximity transducer systems to monitor vibration and shaft position on industrial rotating machinery.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Oil & Gas: Used in refineries, offshore production, and petrochemical plants to monitor pumps and process gas compressors.
Power Generation: Applied in hydroelectric, coal-fired, combined cycle, and wind power plants to ensure smooth turbine rotor operation.
Manufacturing: Monitoring machine tools, fans, and conveyors to maintain process stability and reduce repair costs.
Other Key Sectors: Water and wastewater treatment, pulp and paper, mining, cement, and steel/metal production.
Frequently Asked Questions (FAQ)
Q:What system is this cable compatible with?
A:This extension cable is specifically designed to function within the Bently Nevada 3300 XL 8mm Proximity Transducer System. It acts as the electrical link bridging a 3300 XL proximity probe tip to the final Proximitor Sensor.
Q:How does this cable impact system accuracy?
A:When you introduce any ETR element into your loop, the total accuracy of your Proximitor circuit becomes bound to the accuracy limits of the ETR system. It still supplies a standard output voltage directly proportional to the physical gap distance, reading both static position and dynamic machinery vibration.
Q:What makes an "ETR" cable different from standard cables?
A:ETR stands for Extended Temperature Range. This model uses specialized advanced insulation and sheath materials allowing it to withstand much harsher and broader temperature fluctuations without experiencing signal degradation or brittle cracking compared to standard-range Bently Nevada extension cables.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330193-00-08-10-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistanc |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
