in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.2x1x68cmWeight:
0.02kgCountry of Origin: :
USADescription:

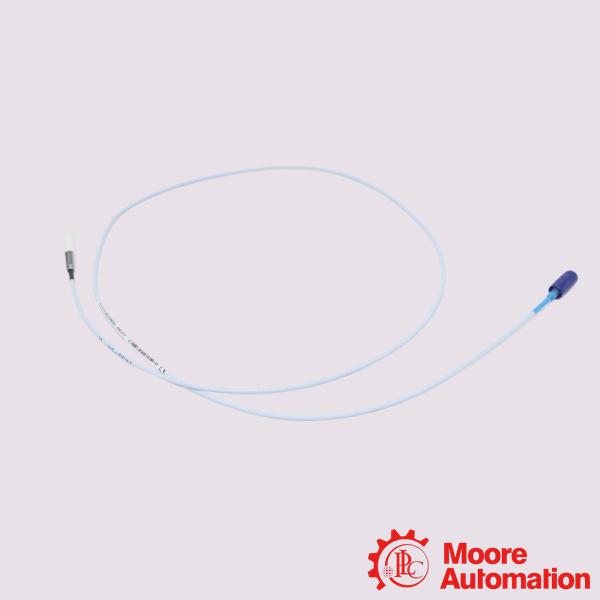

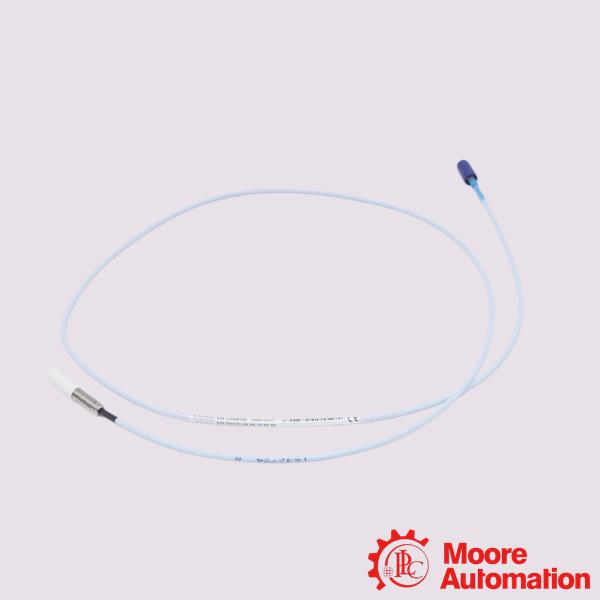

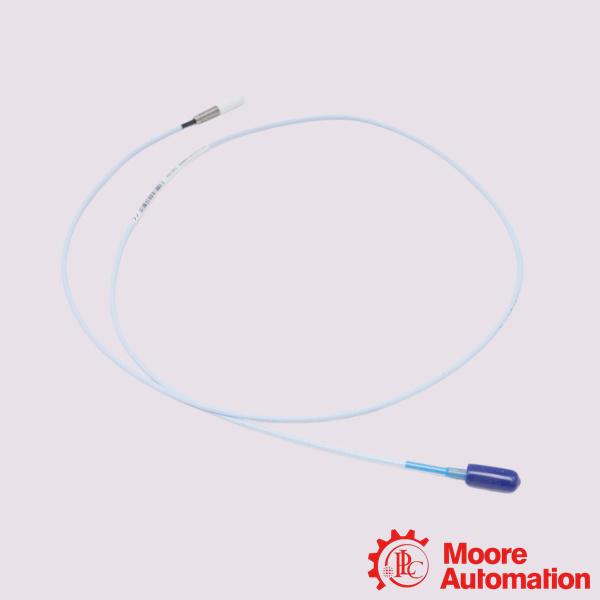

Bently Nevada 330174-00-05-10-02-00 3300 5mm Proximity Probes
| Mfr. Part Number: |
330174-00-05-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330174-00-05-10-02-00 is a highly specialized 3300 series 5mm armored proximity probe for non-contact vibration monitoring, shaft displacement tracking, and over-speed measurements in heavy industrial rotating machinery.The 3300 5 mm probe and 3300 XL extension cable have corrosion-resistant, gold-plated brass ClickLoc connectors. These connectors require only finger-tight torque (connectors will "click"), and the specially engineered locking mechanism prevents the connectors from loosening. The connectors require no special tools for installation or removal.
Application:
Power Generation: Used extensively in thermal, hydroelectric, and nuclear power plants to continuously monitor steam and gas turbines, primary generators, and large cooling water pumps
Oil & Gas Refineries: Deployed in critical extraction, downstream processing, and pipeline transmission systems to prevent catastrophic failures of high-speed machinery.
Chemical & Petrochemical Processing: Utilized where aggressive operating cycles demand continuous predictive asset monitoring
Heavy Manufacturing & Mining: Applied to major air handling installations, massive gearboxes, and large-scale industrial fans.
Frequently Asked Questions (FAQ)
Q:What target material is this system calibrated to?
A:By default, the matching Proximitor sensors are factory-calibrated to AISI 4140 steel targets. Measurements on different metals or shafts under 76.2 mm (3 inches) in diameter will shift the scale factor.
Q:Why am I experiencing unstable gap voltage or signal drift?
A:Because the probe terminates in a miniature coaxial ClickLoc connector, moisture, oil, or dirt ingress can easily corrupt the connection. Ensure the connections are dry and protected using an official connector sleeve or junction box.
Q:Does this 1-meter probe require an extension cable?
A:No. According to Bently Nevada's architecture, 1-metre probe systems do not use an extension cable. They connect directly from the probe to the corresponding Proximitor Sensor.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330174-00-05-10-02-00 |
|
Unthreaded Length Option |
0.0mm |
|
Overall Case Length Option |
50mm |
|
Total Length Option |
1.0 metre (3.3 feet) |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
