in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
115.5x1.5x1.5cmWeight:
0.04kgCountry of Origin: :
USADescription:

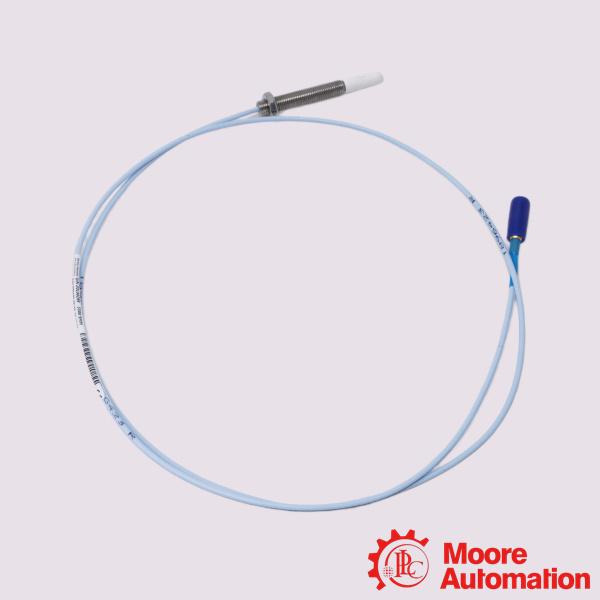

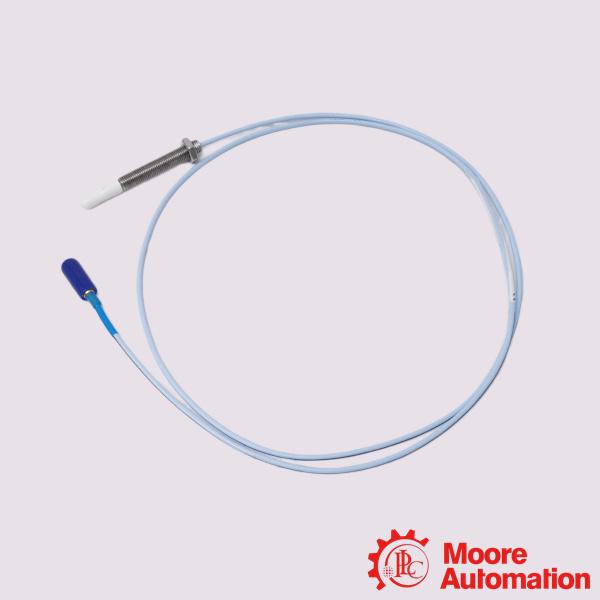

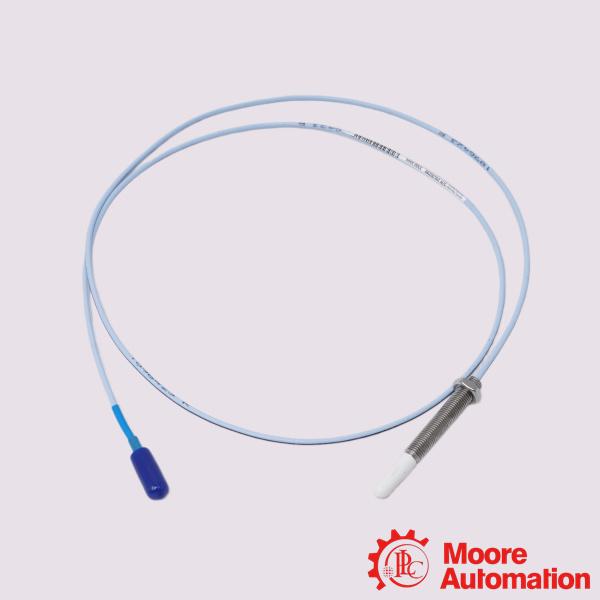

Bently Nevada 330173-00-05-10-02-00 3300 5mm Proximity Probes
| Mfr. Part Number: |
330173-00-05-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330173-00-05-10-02-00 is a 3300 series 5 mm proximity probe utilized across heavy industries for non-contact vibration monitoring, shaft displacement tracking, and predictive maintenance on critical rotating machinery. Because of its compact 5 mm tip, this specific eddy current sensor is targeted at high-speed machinery configurations where tight spacing prevents the use of standard 8 mm probes.The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
Application:
Oil & Gas Refineries & Pipelines: Monitors high-speed centrifugal compressors, turboexpanders, and pipeline transmission pumps. It tracks fluid-film bearing stability to prevent catastrophic rotor assembly failures.
Power Generation Facilities: Deployed on gas turbines, smaller steam turbines, and industrial alternators. The probe measures radial vibration and axial thrust bearing wear under high thermal operating conditions.
Chemical & Petrochemical Processing: Tracks the physical shaft alignment and gap changes of high-volume process pumps and mixers handling aggressive fluids.
Water & Wastewater Infrastructure: Installed within massive high-capacity water distribution pumps and aeration blowers to monitor mechanical imbalances or misalignments before they lead to downtime.
Frequently Asked Questions (FAQ)
Q:Does this 1.0-meter probe require an extension cable?
A:No, a 1.0-meter probe system does not use an extension cable. It must be connected directly to a compatible 1-meter Proximitor® Sensor. Connecting this probe to an extension cable will alter the electrical length of the system, causing severe calibration and scale-factor errors.
Q:Can I mix 3300 5mm components with 3300 XL 8mm components?
A:Yes. The 5mm probe options are physically and electrically interchangeable with 3300 XL 8mm components. However, mixing XL and non-XL components limits the performance of your overall loop to the standard non-XL transducer specifications.
Q:Which Proximitor Sensors are compatible with this probe?
A:It is designed to connect directly with the Bently Nevada 3300 XL Proximitor Sensor configured for a 1-meter system total length.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330173-00-05-10-02-00 |
|
Unthreaded Length Option |
0.0mm |
|
Overall Case Length Option |
50mm |
|
Total Length Option |
1.0 metre (3.3 feet) |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Agency Approval Option |
|
