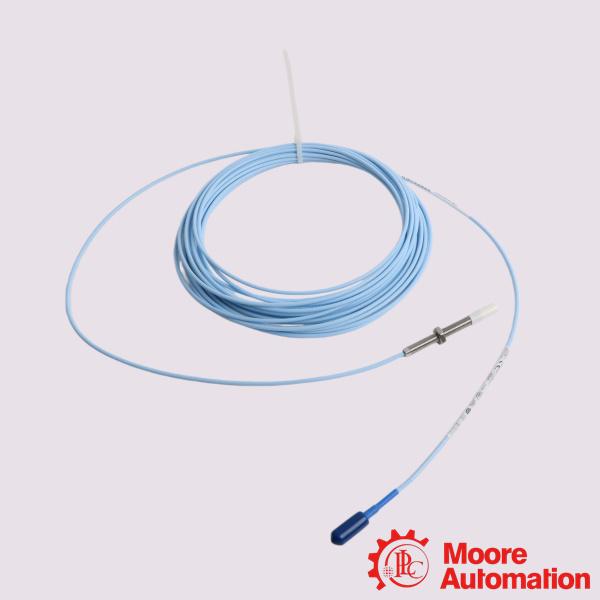

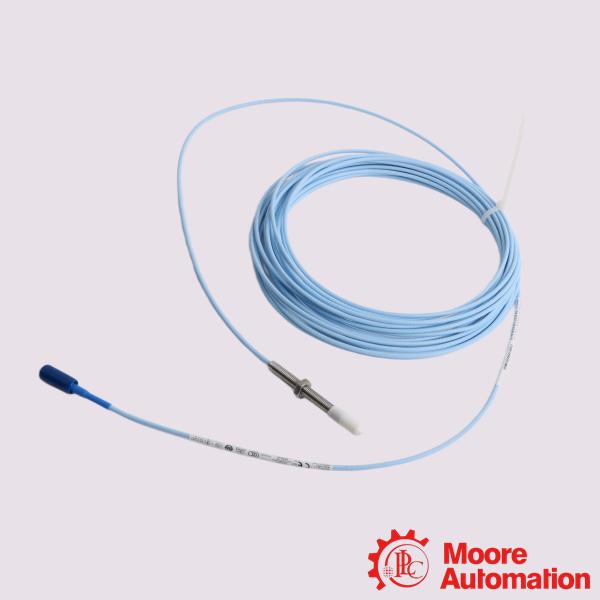

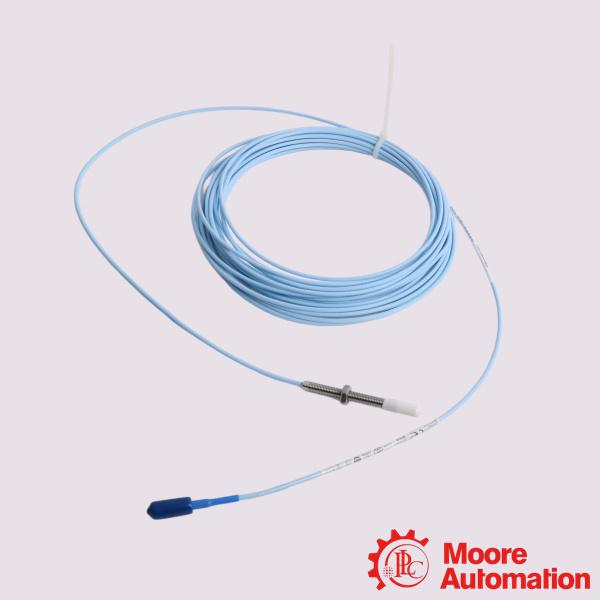

Bently Nevada 330171-00-30-10-02-00 3300 5mm Proximity Probes
| Mfr. Part Number: |
330171-00-30-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330171-00-30-10-02-00 is a 3300 Series 5mm Proximity Probe primarily for non-contact vibration and displacement monitoring on fluid-film bearing machines. This specific configuration features a 3.0-inch overall case length, which is ideal for industrial installations requiring deeper probe insertion.The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
Application:
Power Generation: Monitoring radial vibration and axial position in steam turbines, gas turbines, and hydroelectric generators.
Oil and Gas: Vibration monitoring for centrifugal and axial compressors, pumps, and other high-speed rotating equipment in refineries and fertilizer plants.
Manufacturing and Process Industries: Applied in gearboxes with journal bearings, large industrial fans, and motors within sectors such as steel/metal, mining, and pulp and paper.
Keyphasor and Speed: Providing a once-per-revolution reference signal for phase and speed measurements.
Frequently Asked Questions (FAQ)
Q:What is the typical gap voltage for this proximity probe?
A:The normal gap voltage for Bently Nevada 3300 series systems is typically around −9 V to −11 V DC when the probe is set within its linear range. A reading outside this range usually means the sensor is either too close or too far from the target.
Q:Does this specific probe require field calibration?
A:No field calibration is required. The 3300 system supports full interchangeability between the probe, extension cables, and the Proximitor sensor. They come factory-calibrated to a standard AISI 4140 steel target.
Q:Can I use this probe on machines with high casing pressure?
A:The probe features an internal sealing mechanism, but you must ensure external fluids or gases are safely controlled. Chemical environments with very high or low pH values can erode the tip and cause leakage.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330171-00-30-10-02-00 |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
3.0 in |
|
Total Length Option |
1.0 metre (3.3 feet) |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
