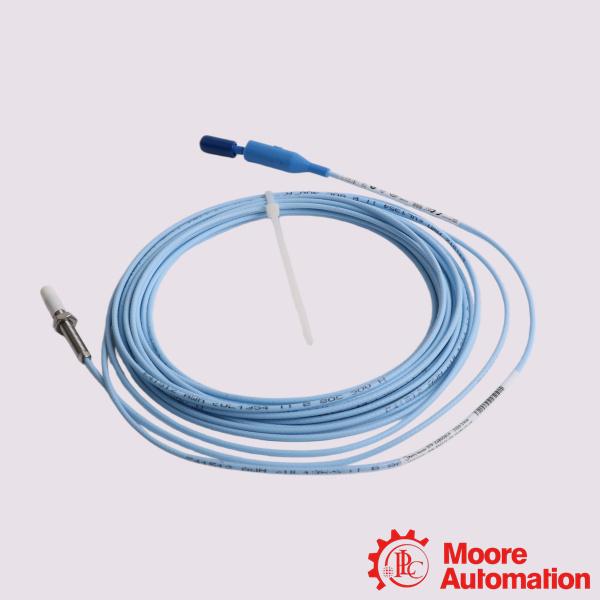

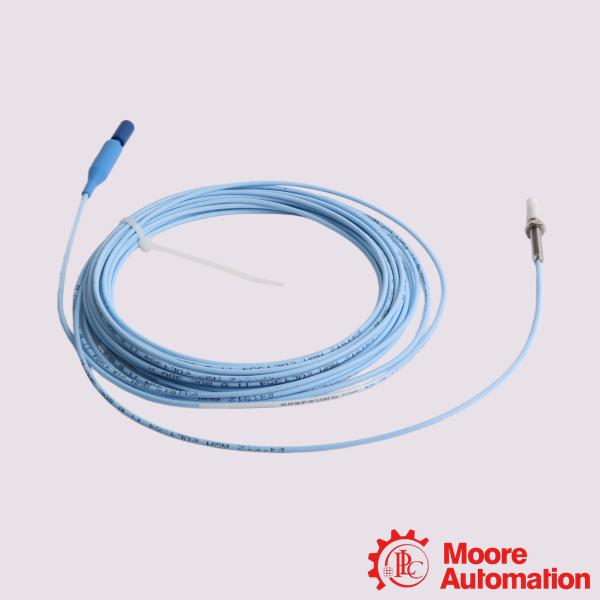

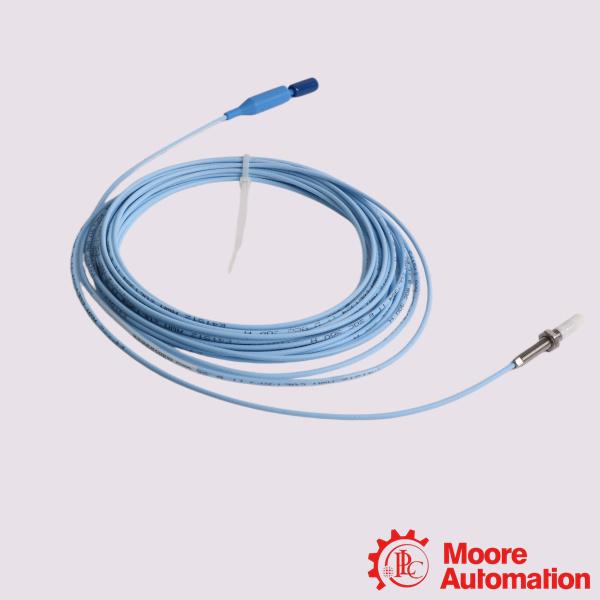

Bently Nevada 330171-00-28-10-01-CN 3300 XL Standard Extension Cable
| Mfr. Part Number: |
330171-00-28-10-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330171-00-28-10-01-CN is a 3300 series 5 mm eddy current proximity probe for continuous monitoring of critical rotating machinery. It is primarily used to measure shaft vibration, axial position, and rotational movement in high-stress industrial environments.The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
Application:
Turbo-machinery: High-speed turbines where precise shaft movement tracking is vital for safety.
Compressors: Including centrifugal air, refrigeration, and process gas compressors.
Industrial Pumps: Continuous vibration monitoring to detect early bearing wear or imbalance.
Power Plants and Centrifuges: Based on your records, you have previously dealt with these components for power plant monitoring and industrial sludge centrifuge applications.
Frequently Asked Questions (FAQ)
Q:What is the primary purpose of this 5 mm probe?
A:It measures static position (such as thrust position) and dynamic vibration of rotating machine shafts. It is ideally deployed inside fluid film bearing.
Q:How does the 5 mm probe differ from an 8 mm probe?
A:It shares the same linear range as the 8 mm probe but has a smaller physical body. Use it only when tight space restrictions prevent an 8 mm installation. It does not reduce sideview clearance requirements.
Q:Does it require custom field calibration?
A:No. The probe, extension cable, and Proximitor sensor are fully interchangeable. This eliminates the need for individual component matching or manual bench calibration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330171-00-28-10-01-CN |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
2.8 in |
|
Total Length Option |
1.0 metre (3.3 feet) |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
