in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.18kgCountry of Origin: :
USADescription:

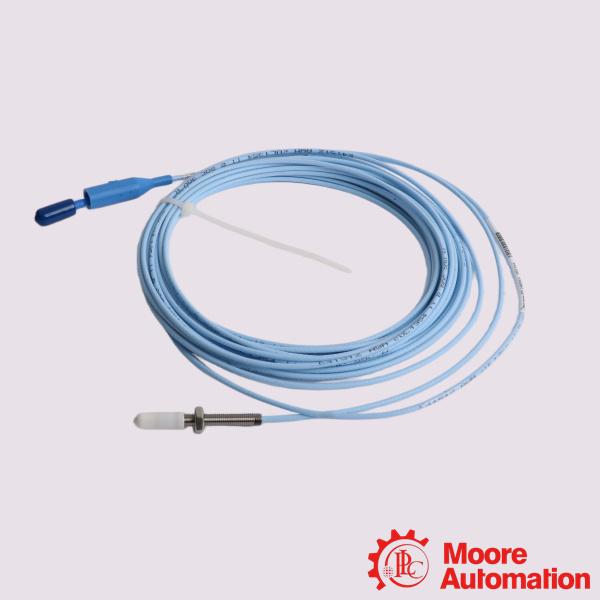

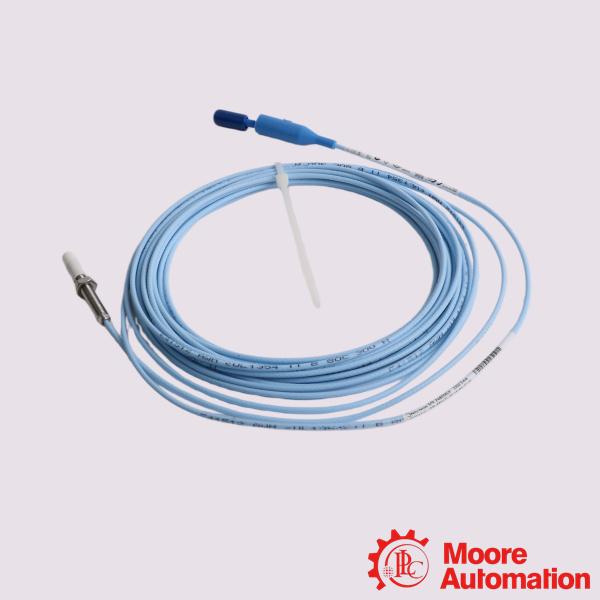

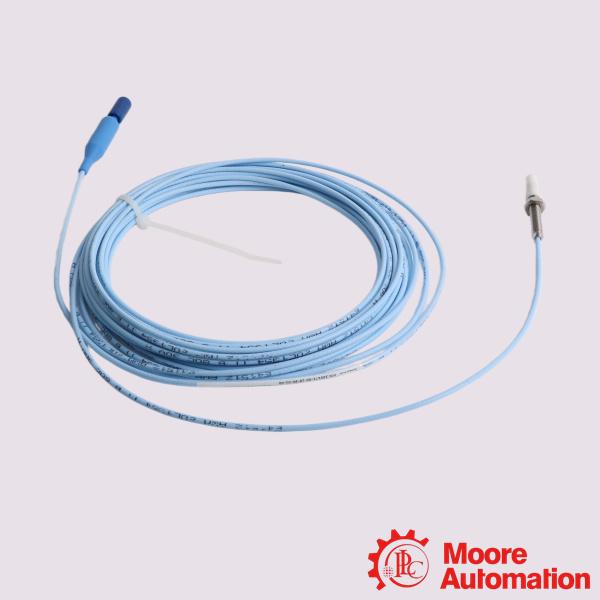

Bently Nevada 330171-00-12-05-02-CN 3300 XL Standard Extension Cable
| Mfr. Part Number: |
330171-00-12-05-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330171-00-12-05-02-CN is a 3300 5 mm Proximity Probe for critical machinery protection and condition monitoring. By utilizing eddy current sensor technology, it measures physical gaps to track the behavior of moving rotor shafts within their fluid-film bearings.The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
Application:
Vibration Monitoring: Tracks radial vibration to detect rotor unbalance, shaft misalignment, or bearing wear early.
Axial Position: Measures thrust position to prevent catastrophic rotor-to-stator contact inside heavy machinery.
Centrifugal & Axial Compressors: Monitors high-speed shafts to prevent aerodynamic surges and mechanical failure.
Steam & Gas Turbines: Measures rotor vibration and thrust bearing wear during massive thermal expansions and high-speed operations.
Frequently Asked Questions (FAQ)
Q:What is the normal gap voltage?
A:When properly installed, gapped, and centered within its linear range, a standard 3300/3300XL series proximity probe reads a normal gap voltage range of −9 V to −11 V DC. Significant deviations usually indicate an incorrect probe distance or physical misalignment.
Q:How does this probe function within a system?
A:The probe emits a high-frequency radio frequency (RF) signal from its tip. When a conductive metal target (like a rotating shaft) approaches, eddy currents are generated on the target's surface. This changes the amplitude of the RF signal. A matching Bently Nevada Proximitor Sensor translates this change into an output voltage directly proportional to the physical gap between the probe tip and the target.
Q:Can I mix and match system components?
A:Yes. The 3300 series is built with complete component interchangeability. The probe, extension cable, and Proximitor sensor can be swapped out without requiring specialized bench calibration or parts matching.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330171-00-12-05-02-CN |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
1.2 in |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output Resistance |
50 W |
|
Recommended Gap Setting |
1.27 mm (50 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Temperature Range |
-35°C to +177°C (- 31°F to +351°F) |
|
