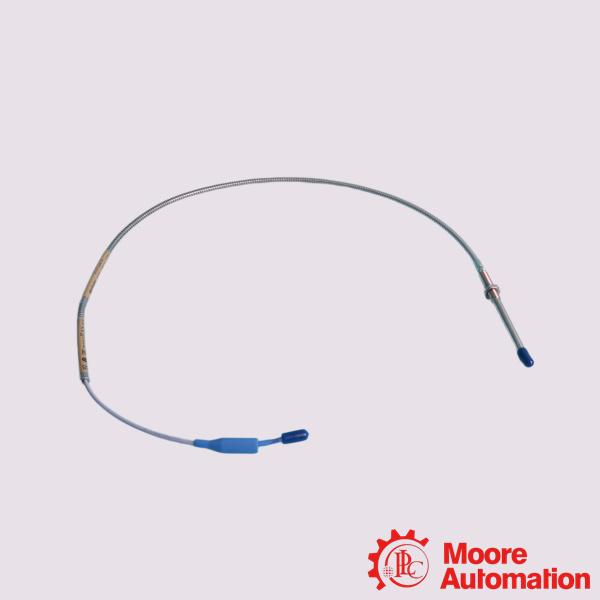

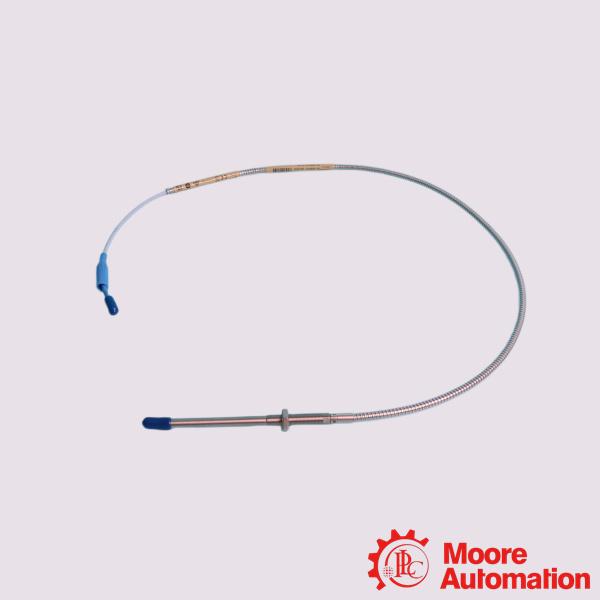

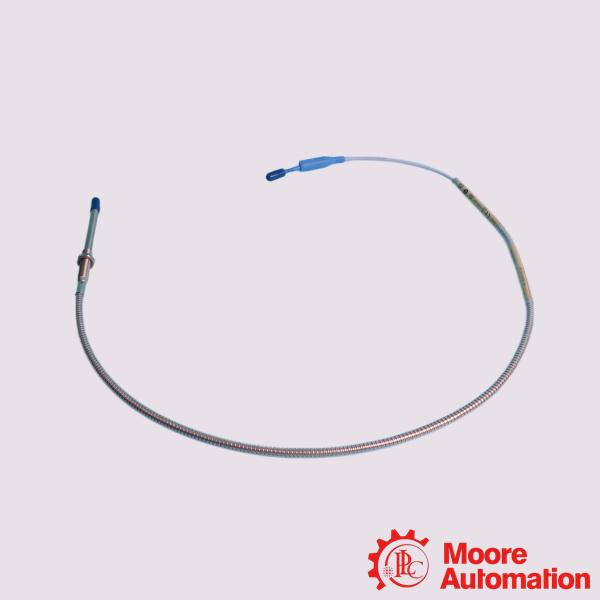

330104-07-14-05-01-00 | Bently Nevada 3300 XL 8 mm Proximity Transducer System

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.5x112cm
Weight:
0.14kg
Country of Origin: :
USA
Description:
Bently Nevada 330104-07-14-05-01-00 3300 XL 8 mm Proximity Transducer System

Inquiry now

Mfr. Part Number:	330104-07-14-05-01-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-07-14-05-01-00 3300 XL 8 mm Proximity Transducer System

Full Description:	The Bently Nevada 330104-07-14-05-01-00 delivers the most advanced performance in our eddy current proximity transducer systems.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-07-14-05-01-00 delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

Application:

Power Generation: Deployed on base-load and peak-load turbine trains to maintain grid stability and maximize asset uptime.
Oil and Gas: Implemented across upstream production platforms, midstream pipeline pump facilities, and downstream refineries.
Chemical Processing: Utilized to monitor essential rotating machinery handling corrosive, highly pressurized gas and chemical fluids.
Pulp and Paper / Mining: Used on high-capacity fans, blowers, and heavy-duty conveyor drives vulnerable to high physical vibration.

Frequently Asked Questions (FAQ)

Q:What range of motion can this probe accurately measure?
A:The 3300 XL 8 mm sensor offers a total linear measurement range of 2.0 mm (80 mils). This window begins approximately 0.25 mm (10 mils) away from the target face and extends smoothly out to 2.25 mm (90 mils). For radial vibration, the recommended calibration gap is normally set at -9 Vdc (about 1.27 mm or 50 mils from the shaft).
Q:Can I connect this probe directly to other Bently Nevada legacy systems?
A:Yes. The 3300 XL 8 mm probe series is physically and electrically interchangeable with non-XL 3300 series 5 mm and 8 mm components. This means you can integrate this probe into older systems without rebuilding or changing existing bench calibrations.

Q:What is the maximum mechanical pull strength of the cable?
A:The structural integration features a patented CableLoc design, offering an exceptionally secure bond. The assembly safely withstands a maximum rated tensile pull strength of 330 N (75 lbf) from the probe case to the probe lead, and 270 N (60 lbf) at the extension connector interface.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-07-14-05-01-00
Unthreaded Length Option	70 mm
Overall Case Length Option	140 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector
Agency Approval Option	Not required
