330104-02-08-05-01-00 | Bently Nevada3300 XL 8 mm Proximity Transducer System

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x122cm
Weight:
0.18kg
Country of Origin: :
USA
Description:

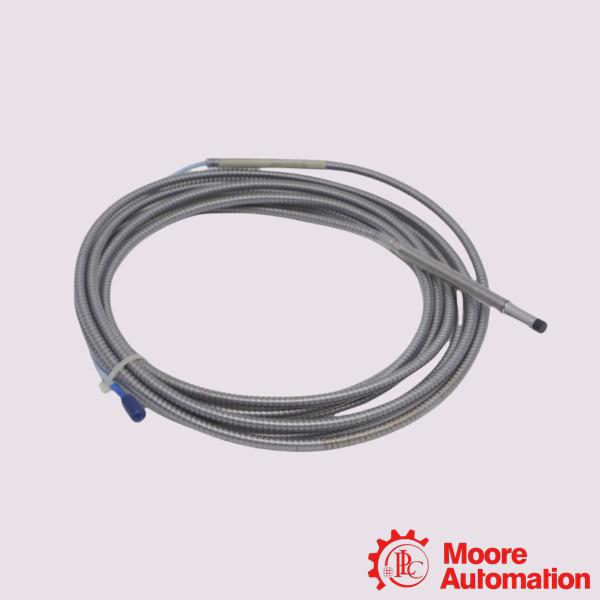

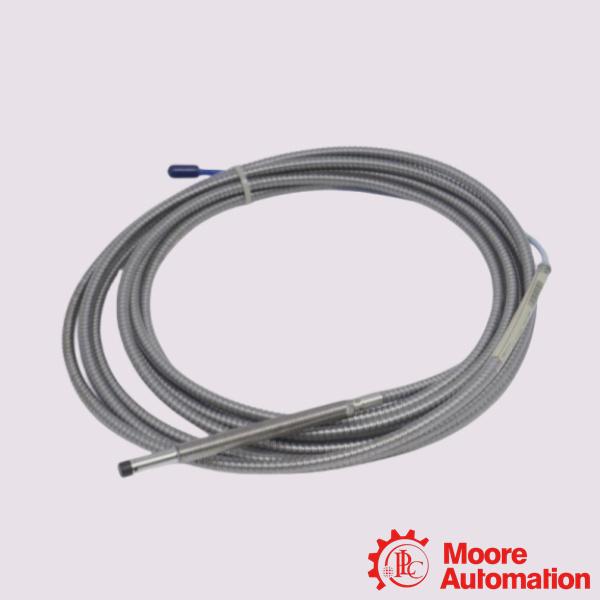

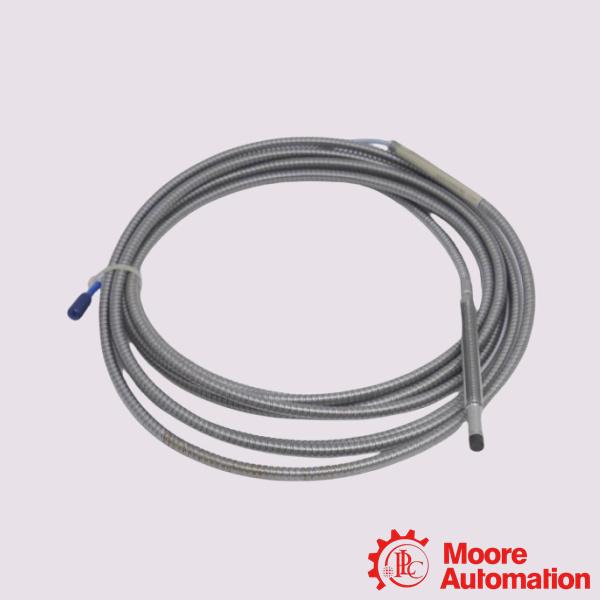

Bently Nevada 330104-02-08-05-01-00 3300 XL 8 mm Proximity Transducer System

Inquiry now

Mfr. Part Number:	330104-02-08-05-01-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-02-08-05-01-00 3300 XL 8 mm Proximity Transducer System

Full Description:	The Bently Nevada 330104-02-08-05-01-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-02-08-05-01-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

Application:

Axial (Thrust) Position Measurement: Monitoring the static longitudinal movement of a shaft to prevent the rotor from physically colliding with the machine casing.
Power Generation: Installed on large steam turbines, gas turbines, and hydro turbines to monitor rotor dynamics and ensure grid stability.
Pulp, Paper, & Steel Mills: Integrated into heavy-duty rollers, fans, and blowers operating continuously under severe mechanical loads.
Chemical & Petrochemical Processing: Used to track the health of large mixers, expanders, and product transfer pumps handling volatile materials.

Frequently Asked Questions (FAQ)

Q:What is the primary function of this probe?
A:The probe acts as a non-contacting sensor that measures both static displacement (position/thrust) and dynamic displacement (vibration). It monitors fluid-film bearing machines, critical shaft behavior, and speed sensing applications.
Q:Does this model include physical cable protection?
A:Yes. The -01 option confirms that the probe is equipped with flexible AISI 302 or 304 stainless steel armor with a fluoroethylene propylene (FEP) outer jacket to protect the raw cable from physical wear and harsh environment elements.

Q:What are the system power requirements?
A:The accompanying 3300 XL Proximitor Sensor requires a continuous negative DC power supply ranging from -17.5 Vdc to -26 Vdc. Operating the loop more positive than -23.5 Vdc may shrink the sensor's linear measurement range.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-02-08-05-01-00
Unthreaded Length Option	20 mm
Overall Case Length Option	80 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector
Agency Approval Option	Not required
