330104-06-06-90-02-05 | Bently Nevada 3300 Proximity Transducer System

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
30x30x5CM
Weight:
0.32KG
Country of Origin: :
USA
Description:

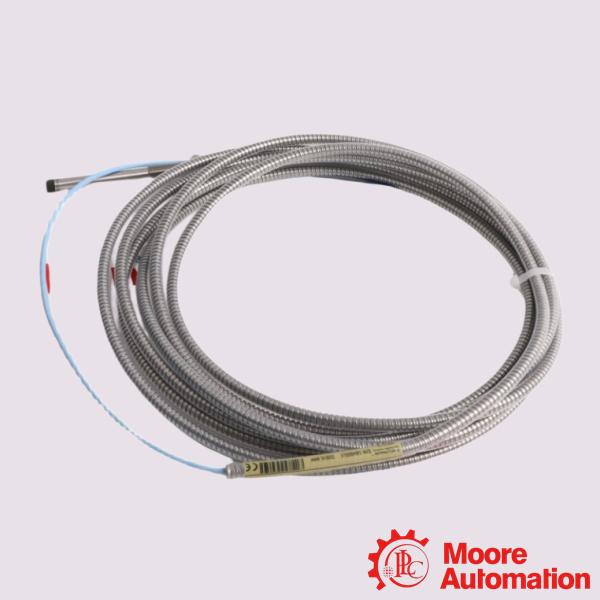

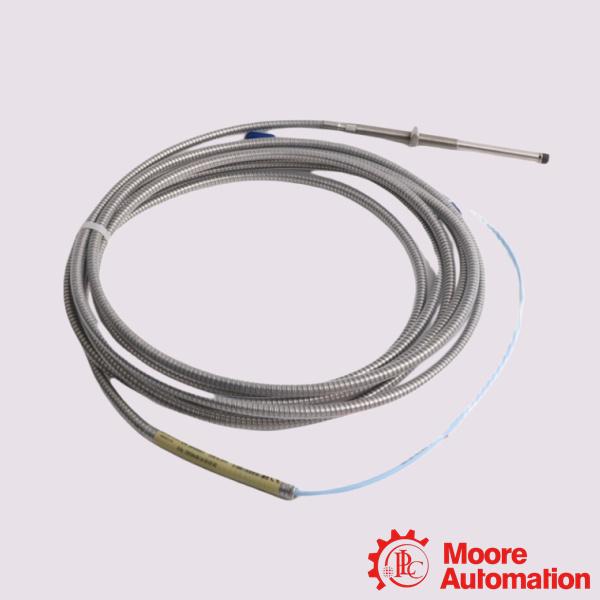

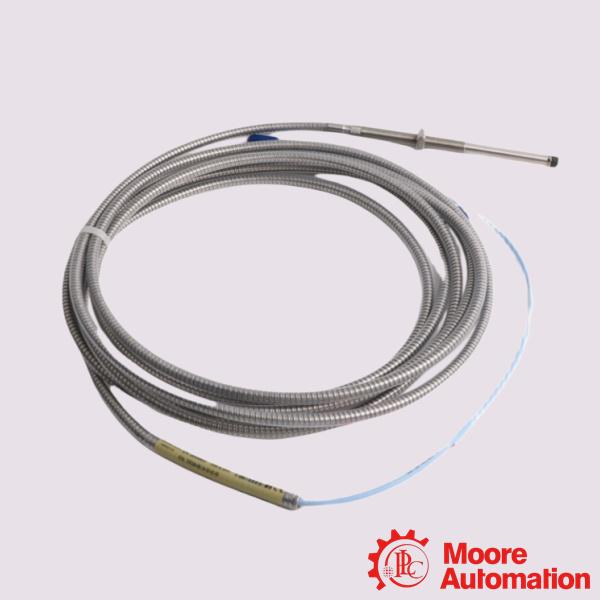

Bently Nevada 330104-06-06-90-02-05 3300 Proximity Transducer System

Inquiry now

Mfr. Part Number:	330104-06-06-90-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-06-06-90-02-05 3300 Proximity Transducer System

Full Description:	The Bently Nevada 330104-06-06-90-02-05 provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

TheBently Nevada 330104-06-06-90-02-05 provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor® and speed measurement applications

Application:

Oil & Gas (Upstream, Midstream, Downstream): Main critical machinery monitoring on offshore platforms, pipelines, and refineries.
Power Generation : Plant-wide asset protection to avoid unplanned downtime and baseline electricity grid drops.
Petrochemical & Chemical Processing: Continuous tracking of high-speed rotating assets handling aggressive or volatile chemical compounds.
Heavy Manufacturing (Mining, Steel, Pulp & Paper): Safeguarding secondary, yet essential, plant utilities from structural breakdowns.

Frequently Asked Questions (FAQ)

Q:What type of sensor is this probe?
A:330104 is a Bently Nevada 3300XL 8mm proximity probe with an M10×1 metric thread and armor protection. It is part of an eddy current displacement sensor system used to measure the vibration and axial position of rotating machinery.
Q:Can it be used interchangeably with non-XL components?
A:Yes, but not recommended. When XL and non-XL components are used interchangeably, system performance will be limited by the specifications of the non-XL 3300 system. It is recommended to use all XL components for optimal performance.

Q:What do "60mm threadless length" and "60mm housing length" mean? What are the limitations?
A:Threadless length (A=06=60mm): Refers to the length of the smooth portion from the probe tip to the start of the thread.
Housing length (B=06=60mm): Refers to the total housing length of the probe. Important limitation: The threadless length must be at least 20mm shorter than the housing length.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:330104-06-06-90-02-05
Unthreaded Length Option	60 mm
Overall Case Length Option	0 6 = 60 mm
Total Length Option	9.0 meters (29.5 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
