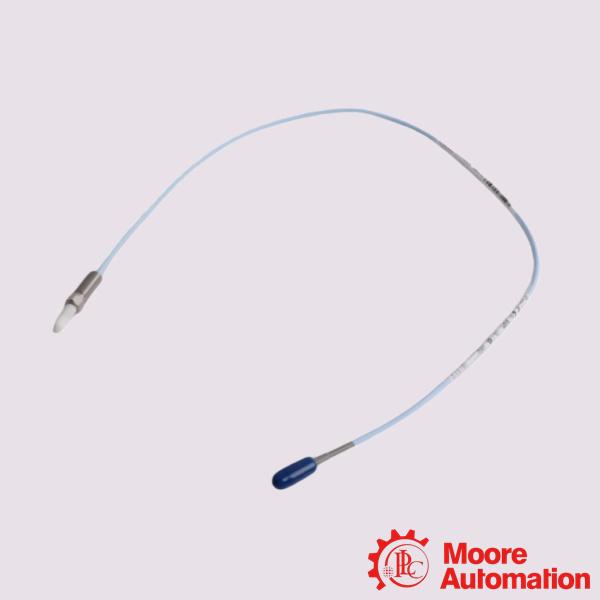

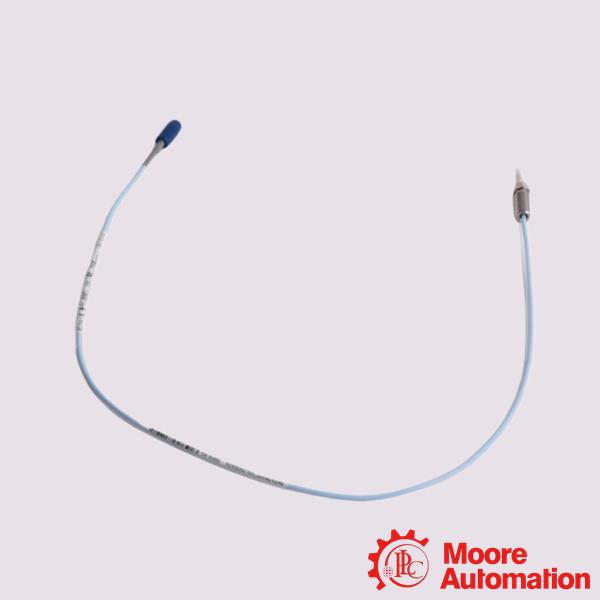

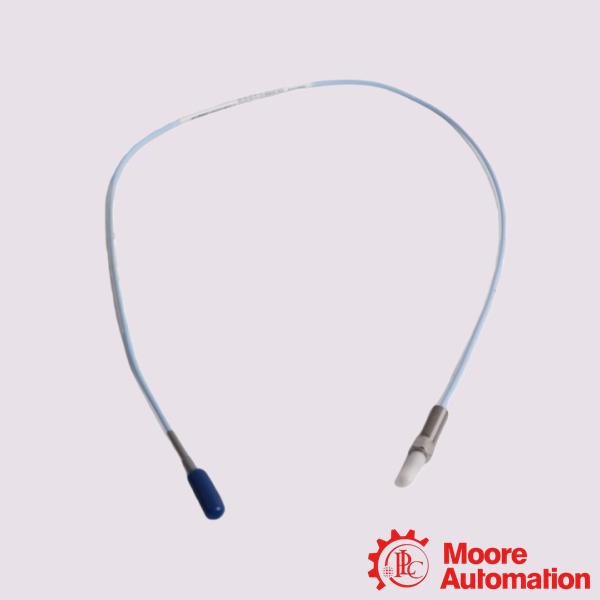

330906-02-12-05-05-02-05 | Bently Nevada 3300 XL NSv Reverse Mount Proximity Probe.

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.2x1x66CM
Weight:
0.014KG
Country of Origin: :
USA
Description:
Bently Nevada 330906-02-12-05-05-02-05 3300 XL NSv (Narrow Side View) Reverse Mount Proximity Probe.

Inquiry now

Mfr. Part Number:	330906-02-12-05-05-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330906-02-12-05-05-02-05 3300 XL NSv (Narrow Side View) Reverse Mount Proximity Probe.

Full Description:	The Bently Nevada 330906-02-12-05-05-02-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The primary uses for the 330906-02-12-05-05-02-05 are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada* 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Application:

Centrifugal Air Compressors: Main critical machinery monitoring on offshore platforms, pipelines, and refineries.Monitored for precise dynamic shaft movement within tight internal housings.
Refrigeration Compressors: Used where internal clearance and side-view space are severely limited.
Small Shaft Turbines & Pump: Ideal for measuring radial vibration on small rotating shafts under 51 mm (2 inches) in diameter.
Process Gas Compressors: Deployed across chemical and petrochemical refining lines.

Frequently Asked Questions (FAQ)

Q:What is the electrical sensitivity of this probe?
A:When paired with the matching 3300 XL NSv Proximitor Sensor, it provides a standard scale factor of 7.87 V/mm (200 mV/mil). This is the benchmark scale for most eddy-current industrial vibration monitoring systems.
Q:Can this reverse mount probe handle fluid exposure?
A:Yes. The probe body is made of AISI 304 Stainless Steel and features a Polyphenylene Sulfide (PPS) tip. This configuration offers excellent chemical resistance against oils and process gases. However, highly acidic or alkaline environments can erode the tip and invalidate the product's leak warranties.

Q:What are the temperature limits for this probe model?
A:The probe head and cable can safely operate within an environmental window of -34°C to +177°C (-30°F to +351°F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:330906-02-12-05-05-02-05
Total Length Option	0.5 meter (20 in)
Connector Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple Approvals
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
