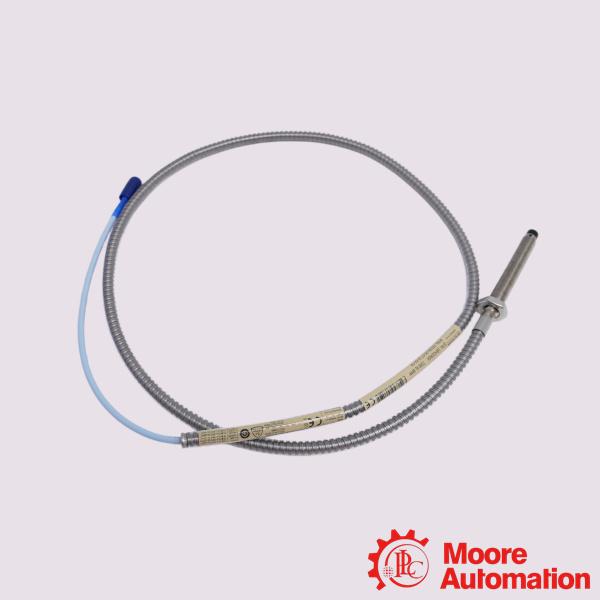

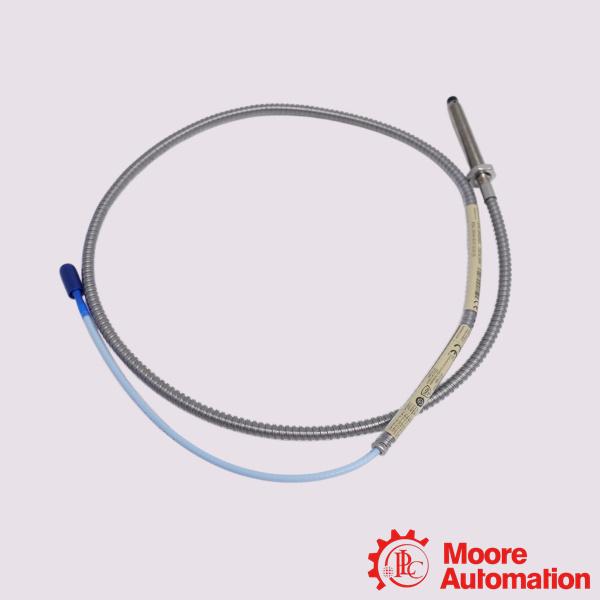

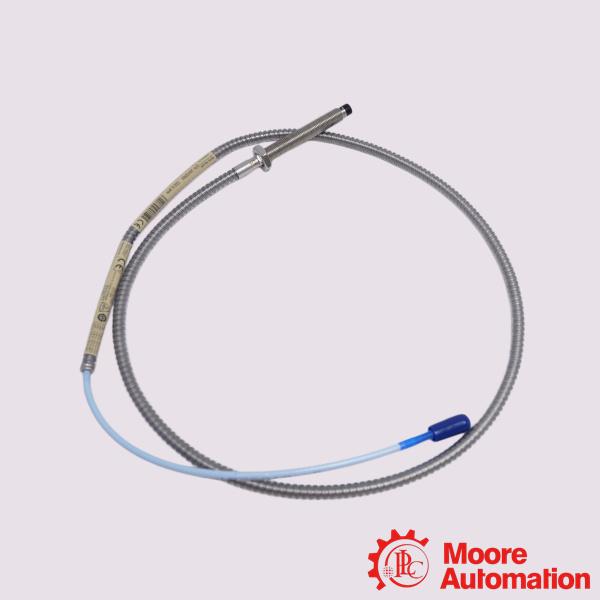

330104-00-07-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x114cm
Weight:
0.1kg
Country of Origin: :
USA
Description:
Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-07-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330104-00-07-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-00-07-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Widely deployed on steam turbines, gas turbines, hydro turbines, generators, and exciters to prevent catastrophic rotor failure.
Oil & Gas / Petrochemical: Used in upstream and downstream facilities to monitor critical process gas compressors, turboexpanders, and high-pressure injection pumps.
Chemical Processing: Essential for monitoring massive mixers, agitators, and specialized fans handling hazardous or volatile compounds.
Water & Municipal Engineering: Utilized in large-scale water treatment and distribution plants on heavy-duty water pumps and wastewater aeration blowers.

Frequently Asked Questions (FAQ)

Q:What is the measurement range and sensitivity of this probe?
A:The probe features an 80 mil (2.0 mm) linear range.Its standard scale factor sensitivity is 7.87 V/mm (200 mV/mil) when calibrated against standard AISI 4140 steel.
Q:What are the power requirements for this system?
A:The system requires a negative DC supply voltage ranging between -17.5 Vdc and -26 Vdc.Operating with a supply more positive than -23.5 Vdc will degrade the sensor's overall linear range.

Q:How do I choose the correct extension cable for a 1.0-meter probe?
A:Total system calibration length must match the Proximitor Sensor's requirements, which is typically 5.0 or 9.0 meters.For this 1.0-meter probe to run on a standard 5.0-meter system, you must pair it with a 4.0-meter extension cable. For a 9.0-meter system, use an 8.0-meter extension cable.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-00-07-10-02-05
Unthreaded Length Option	0 mm
Overall Case Length Option	70 mm
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
