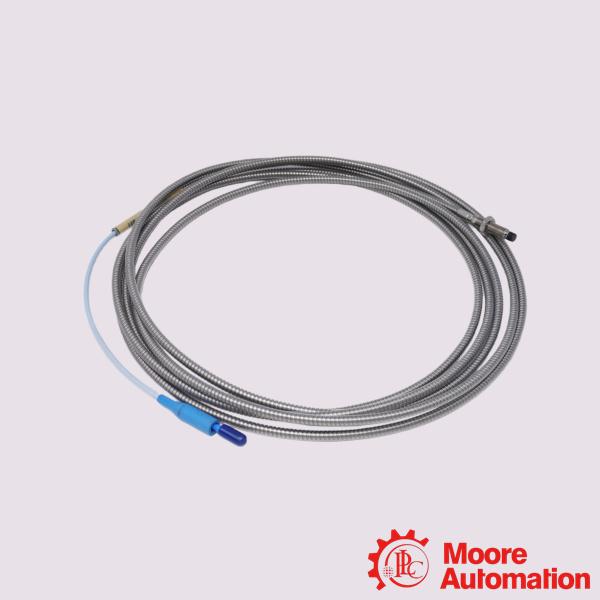

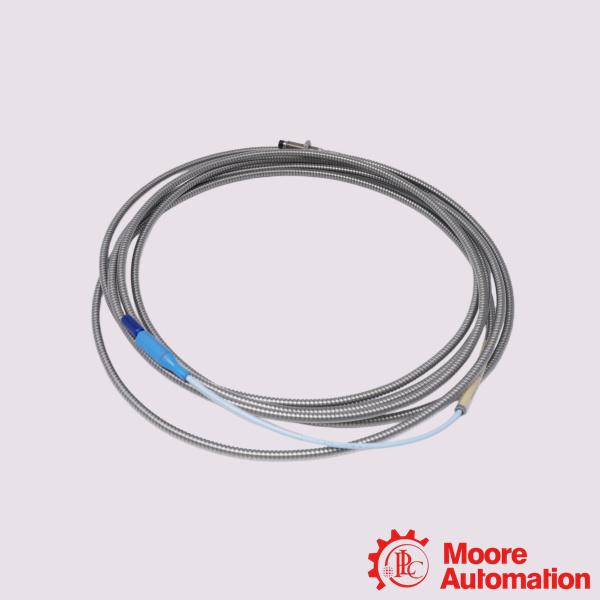

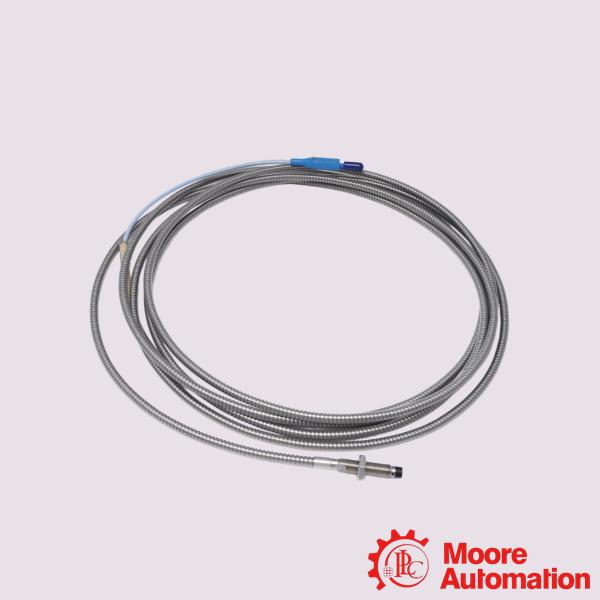

330104-00-04-90-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.7x117.5x1.7cm
Weight:
0.16kg
Country of Origin: :
USA
Description:
Bently Nevada 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-04-90-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as
Keyphasor reference and speed measurements The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Application:

Oil & Gas (Upstream/Downstream): Offshore platforms, refineries, LNG terminals, and cross-country pipeline compressor stations.
Power Generation: Nuclear, fossil fuel, and hydroelectric power plants relying on continuous baseline generating uptime.
Chemical & Petrochemical Processing: Ethylene plants, fertilizer facilities, and plastics manufacturing hubs.
Heavy Metallurgy & Mining: Blast furnace air blowers and massive continuous processing machinery.

Frequently Asked Questions (FAQ)

Q:What does this probe measure?
A:It uses the eddy current principle to perform non-contacting measurements. It senses both static changes (shaft position / axial thrust gap) and dynamic changes (radial shaft vibration) relative to a fluid-film bearing surface.
Q:Does this part number include the Proximitor sensor or extension cable?
A:No. The 330104-00-04-90-02-00 is the probe component only. Because it features an integrated 9.0-meter cable, it is designed to connect directly into a 9-meter system-compatible 3300 XL Proximitor Sensor without using an extra extension cable.

Q:What is the target gap range for standard operations?
A:The 3300 XL 8 mm sensor has a total linear measuring range of 2.0 mm (80 mils). The typical physical gap installation target sits right in the middle around -10 Vdc baseline gap voltage.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-00-04-90-02-00
Unthreaded Length Option	0 mm
Overall Case Length Option	40 mm
Total Length Option	9.0 meters (29.5 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
