330103-02-12-05-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2x1.5x115cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

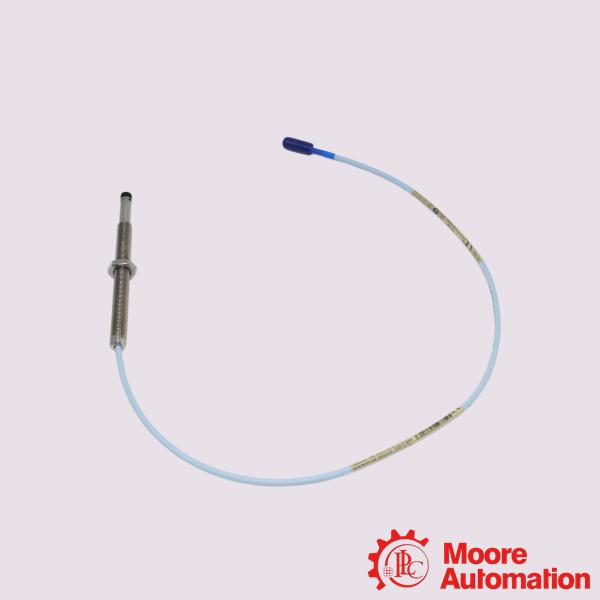

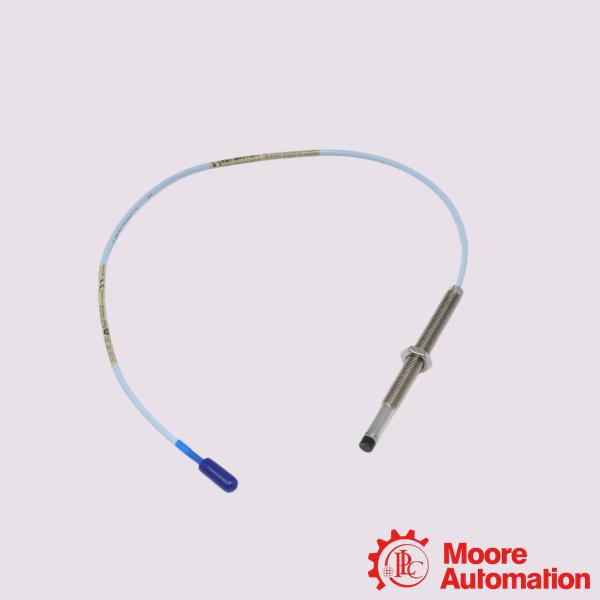

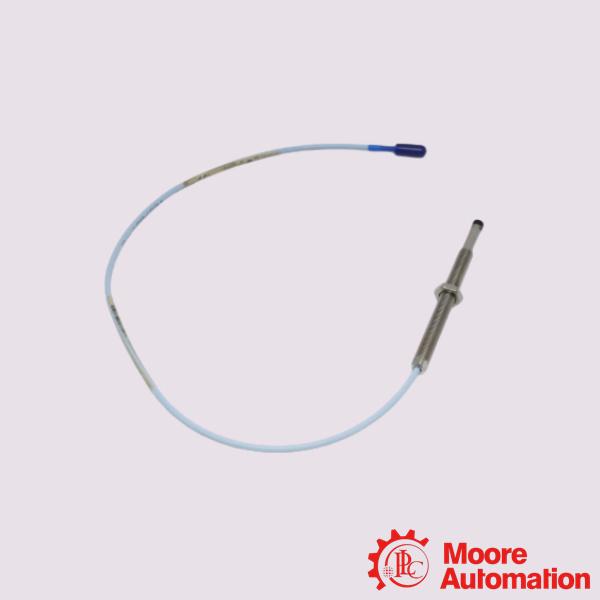

Bently Nevada 330103-02-12-05-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-02-12-05-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-02-12-05-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-02-12-05-02-05 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Nuclear, gas, thermal, and hydroelectric power plants.
Oil & Gas: Upstream drilling platforms, midstream pipelines, and downstream refineries.
Chemical Processing: Petrochemical plants and aggressive chemical manufacturing units.
Water Treatment: Large-scale municipal pumping and water distribution centers.

Frequently Asked Questions (FAQ)

Q:Is a separate extension cable required?
A:Yes, this probe has a short 0.5-meter integrated cable. It requires a separate 75 Ω triaxial extension cable to reach a total system length of either 5.0 meters or 9.0 meters. The system must match the calibration length of your Proximitor sensor.
Q:Can I mix and match components?
A:Yes, all genuine Bently Nevada 3300 XL 8 mm components offer complete physical interchangeability. You can replace the probe, extension cable, or Proximitor sensor independently without the need for individual component matching or bench calibration.

Q:What power supply and signal type does it use?
A:The proximity system requires a -18 Vdc to -26 Vdc power supply (nominal -24 Vdc). It operates using the eddy current principle to generate a low-power RF signal, returning an output voltage that is directly proportional to the gap distance.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-02-12-05-02-05
Unthreaded Length Option	20 mm
Overall Case Length Option	120 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
