330104-00-03-05-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.8x58cm
Weight:
0.08kg
Country of Origin: :
USA
Description:

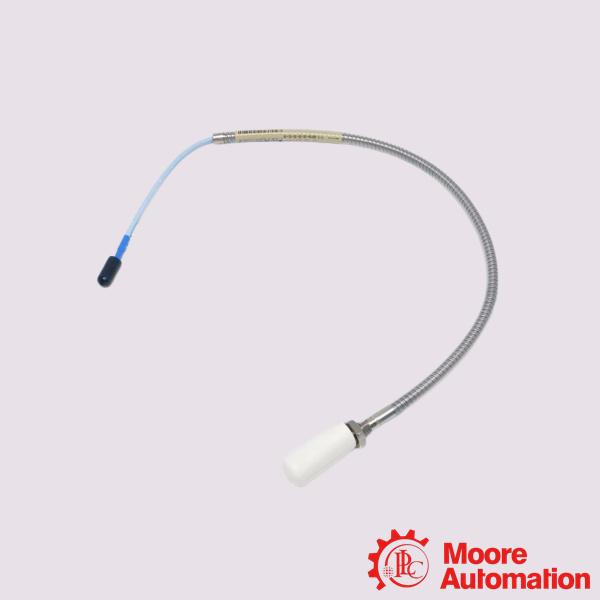

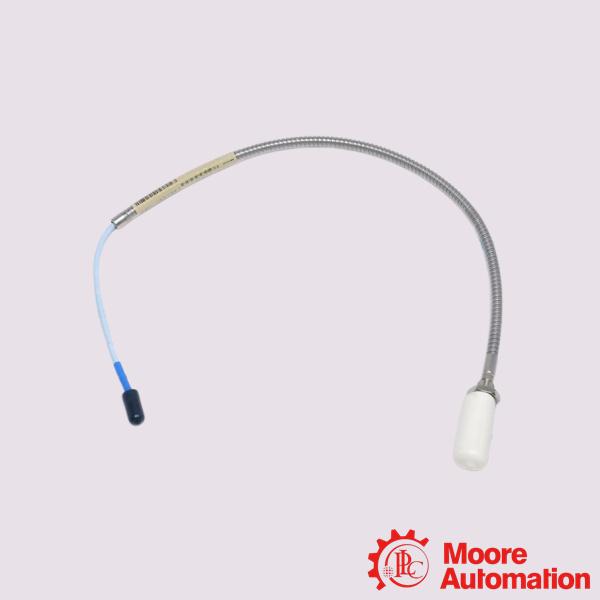

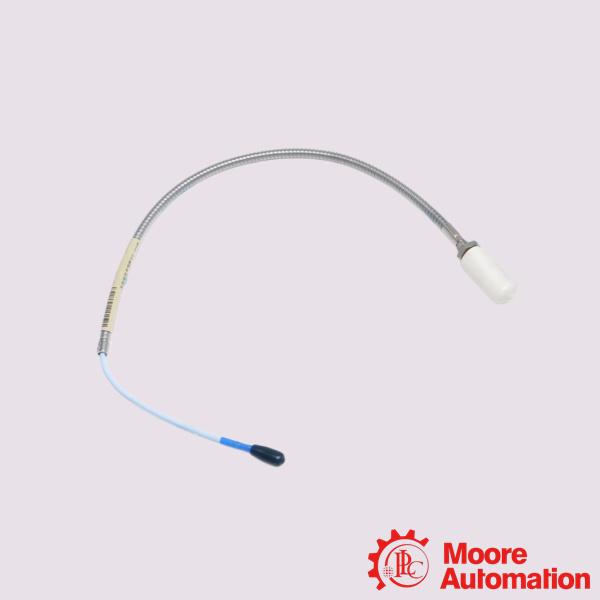

Bently Nevada 330104-00-03-05-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-03-05-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-03-05-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The 330104-00-03-05-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330104-00-03-05-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Used heavily in nuclear, fossil fuel, and renewable power plants to trace turbine health.
Chemical & Petrochemical Processing: Installed in aggressive processing environments where fluid or chemical leaks pose critical risks.
Mining & Heavy Metals: Integrated into mills, crushers, and heavy-duty conveyor machinery where massive structural loads create high vibration.
Pulp, Paper & Water Treatment: Utilized on industrial-scale rollers, mixers, and large water-moving stations.

Frequently Asked Questions (FAQ)

Q:What are the physical and environmental limits of this probe?
A:The probe body is constructed from durable AISI 303 or 304 stainless steel with a Polyphenylene Sulfide (PPS) tip. It operates reliably within a standard temperature envelope of -51 °C to +177 °C. Exposing the sensor to temperatures lower than -34°C may cause premature degradation of the internal Viton® O-ring pressure seal.
Q:What is the linear measurement range?
A:The 3300 XL 8 mm probe features a standard linear range of 2.0 mm (80 mils). The range officially starts at a gap of 0.25 mm (10 mils) from the target conductive surface and extends up to 2.25 mm (90 mils). The output voltage changes dynamically and is directly proportional to this distance.

Q:How do ClickLoc connectors work?
A:The probe features gold-plated ClickLoc coaxial connectors that lock firmly together by hand torque. They do not require tools and are engineered with a mechanism that "clicks" into place, preventing loose connections from machine vibration.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-00-03-05-02-05
Unthreaded Length Option	0 mm
Overall Case Length Option	30 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
