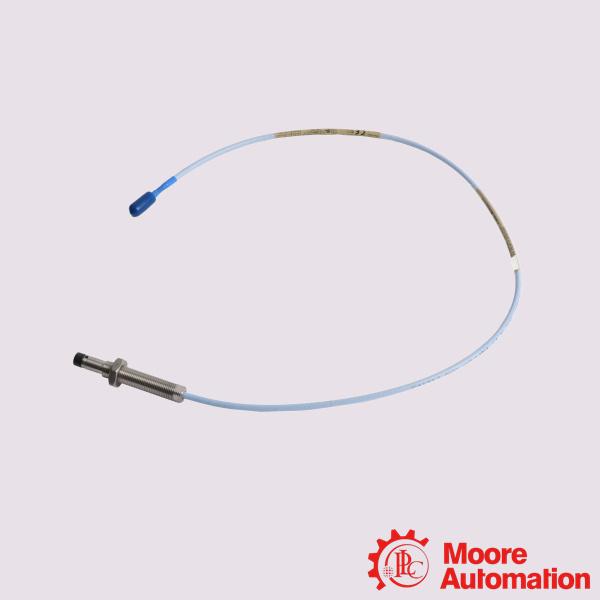

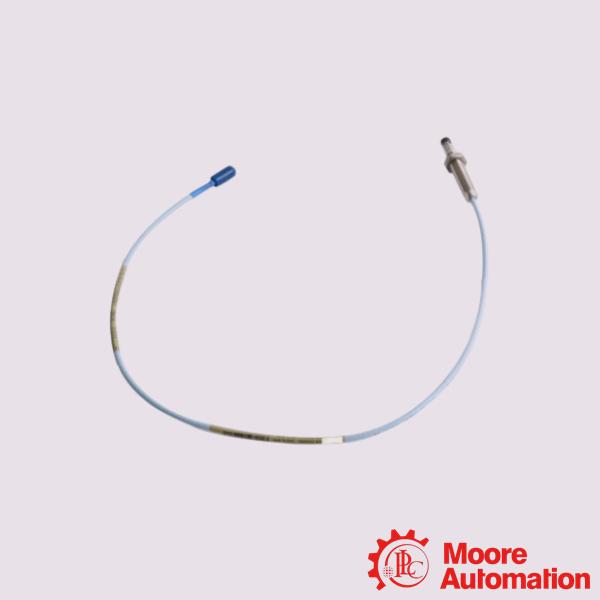

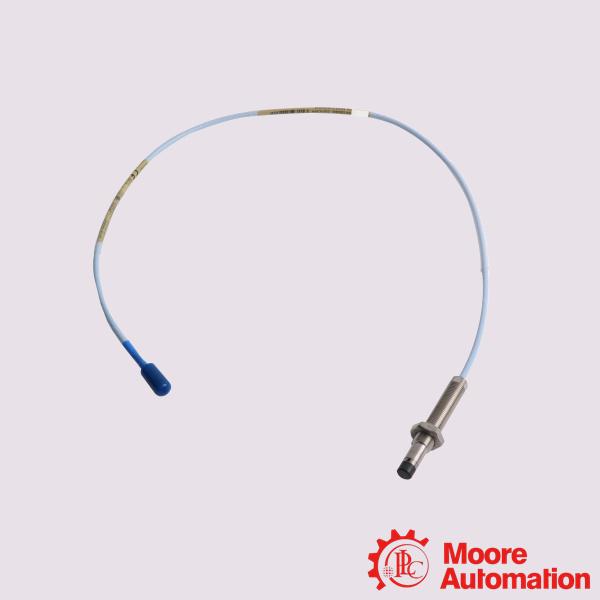

330103-01-09-50-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x68cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-01-09-50-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Steam Turbines: Tracks differential expansion and axial thrust changes as the turbine heats up and cools down.
Hydroelectric Generators: Monitors slow-speed, heavy-rotor radial runout and structural alignment.
Industrial Fans & Blowers: Checks draft fans and cooling tower gearboxes for structural or rotational abnormalities.
Gas Turbines: Measures internal rotor displacement under massive thermal loads.

Frequently Asked Questions (FAQ)

Q:Can I use a 5.0 m probe with any 3300 XL Proximitor?
A:No, you must match the total system length. Because this probe has a built-in 5.0 m cable (50 option), it must be paired with a 5.0-metre system Proximitor Sensor and no extension cable, OR a combination of probe and extension cable that matches your specific Proximitor calibration. Standard 3300 XL systems are calibrated for either 5.0 m or 9.0 m total electrical lengths.
Q:What is the standard sensitivity and calibration of this probe?
A:When paired with a matching 3300 XL Proximitor Sensor, the system offers a nominal linear range of 2.0 mm (80 mils) and a standard target sensitivity of 200 mV/mil (7.87 V/mm). From the factory, it is default-calibrated to an AISI 4140 steel target.

Q:What is the recommended gap voltage during setup?
A:For radial vibration and basic position tracking, the target gap should be set at the center of the linear range. This corresponds to a gap distance of approximately 1.27 mm (50 mils), which yields an output of -9 Vdc. Bently Nevada systems utilize negative voltage natively due to historical and thermal stability design roots in PNP transistor bias networks.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-01-09-50-02-00
Unthreaded Length Option	10 mm
Overall Case Length Option	90 mm
Total Length Option	5.0 meters (16.4 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
