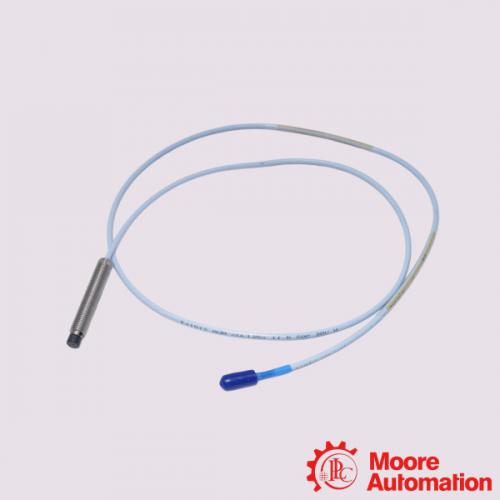

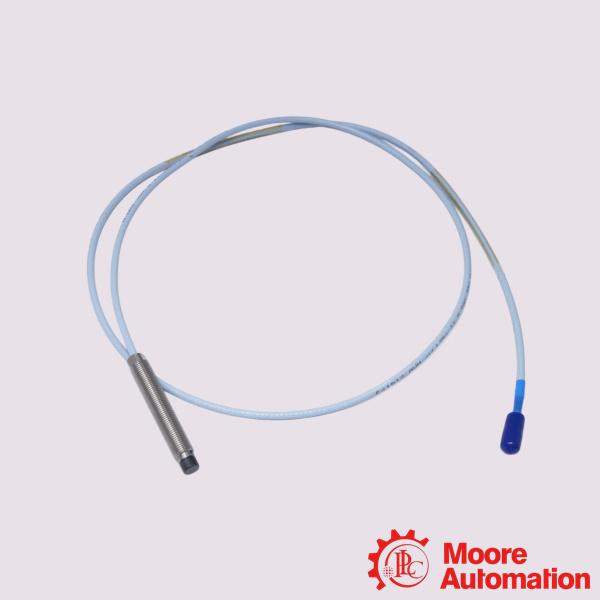

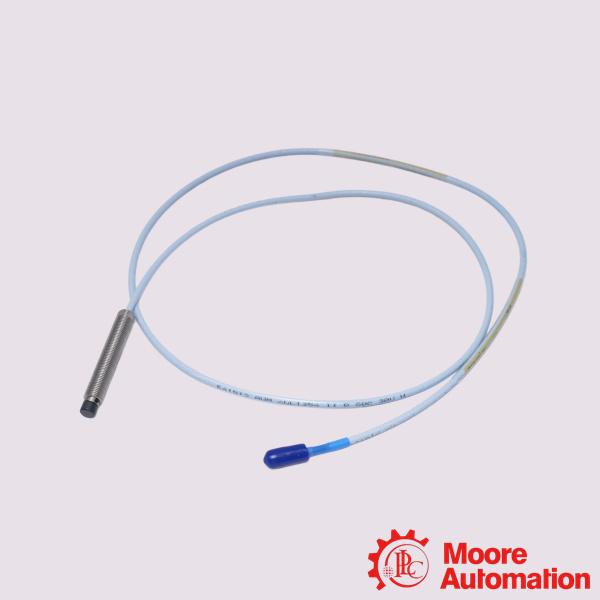

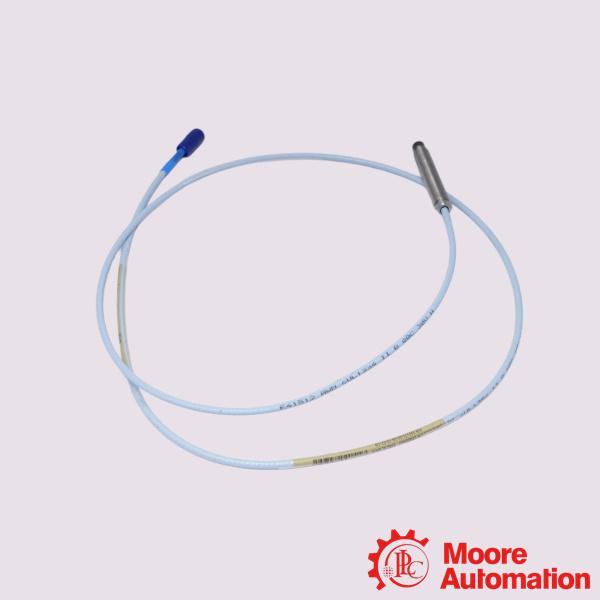

330103-00-06-10-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.5x121cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 330103-00-06-10-12-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-00-06-10-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-00-06-10-12-05 3300 XL 8 mm Proximity Probes

Full Description:	The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-00-06-10-12-05 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Oil & Gas / Petrochemical Plants: Deployed on critical turbomachinery string assets like centrifugal compressors, gas turbines, and high-pressure water injection pumps.
Power Generation Facilities: Tracks rotor dynamics on large steam turbines, combustion turbines, hydro turbines, and cooling tower generator assemblies.
Chemical Processing: Used to monitor heavy-duty mixers, agitators, and process blowers exposed to harsh chemical environments.
Heavy Manufacturing & Mining: Protects high-power fans, industrial gearboxes, and large electric motors from mechanical failure.

Frequently Asked Questions (FAQ)

Q:What is the linear range of this proximity probe?
A:The probe delivers a 2.0 mm (80 mil) linear range. The measurement window typically begins at a gap distance of 0.25 mm (10 mils) from the target surface, yielding a proportional output voltage from -1 to -17 Vdc across the system.
Q:What is FluidLoc cable and why is it used?
A:The FluidLoc cable option (-12) is engineered with an internal seal that prevents oil, moisture, and other process liquids from leaking out of the machine housing through the inside of the cable. It is highly recommended for environments with severe fluid exposure.

Q:Does this part require matching or field calibration?
A:No. The Bently Nevada 3300 XL 8 mm series features complete physical and electrical interchangeability. The probe, extension cable, and Proximitor sensor can be swapped out individually without requiring system re-calibration or bench matching, provided they are measuring a standard AISI 4140 steel target.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-00-06-10-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	60 mm
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
