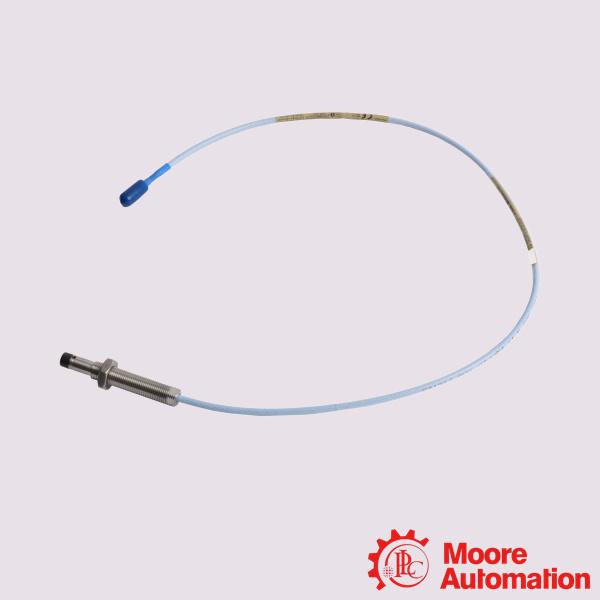

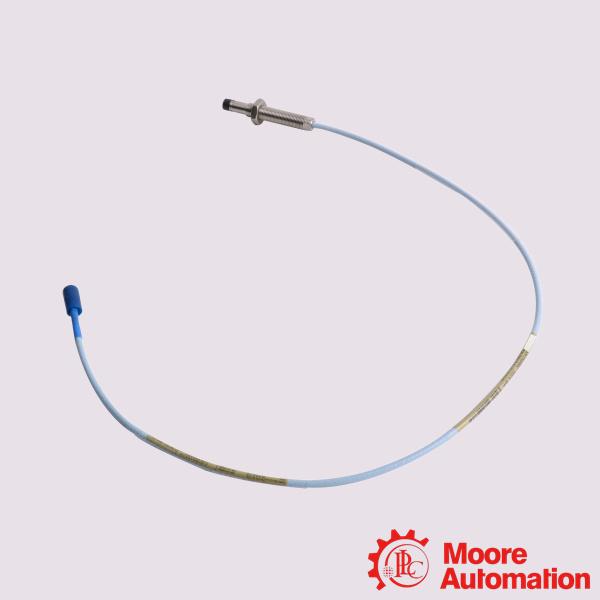

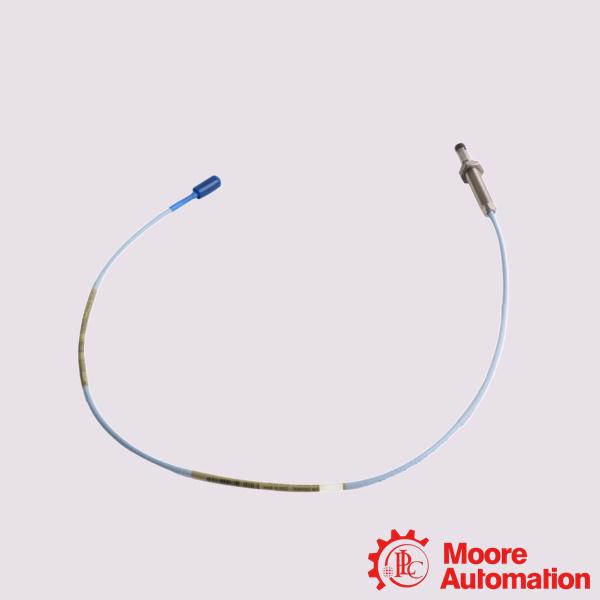

330103-01-09-50-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x68cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-01-09-50-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-01-09-50-02-00 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body.

Application:

Power Generation: Used to monitor critical steam turbines, gas turbines, generators, and large cooling pumps.
Oil & Gas / Petrochemicals: Deployed on multi-stage compressors, expanders, and high-pressure pumps across upstream production and downstream refining.
Water & Municipal Engineering: Utilized on large water treatment pumps, aeration blowers, and wastewater management turbomachinery.
Heavy Manufacturing: Applied to critical blowers, fans, and gearboxes found in pulp and paper mills, steel mills, and mining operations.

Frequently Asked Questions (FAQ)

Q:How does this probe function?
A:The probe relies on the eddy current principle. The connected Proximitor Sensor sends a radio frequency signal to the probe tip. This generates a magnetic field. When a conductive steel shaft passes nearby, the field strength alters, translating the physical distance directly into an output voltage signal.
Q:What is the default target calibration for this system?
A:The 3300 XL series probe is factory-calibrated to a standard AISI 4140 steel target. Using it on other metallic targets (such as aluminum or stainless steel) requires recalibration due to variation in material conductivity and permeability.

Q:Does this specific probe configuration require an extension cable?
A:No. Because the total length option is "50" (5.0 metres), this probe connects directly to a 5.0-metre Proximitor Sensor. It does not utilize an intermediate extension cable. Mixing a 5.0-metre probe with an extension cable will alter the system's total electrical length, disrupting calibration and skewing data accuracy.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-01-09-50-02-00
Unthreaded Length Option	10 mm
Overall Case Length Option	90 mm
Total Length Option	5.0 metres (16.4 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Shaft Diameter	50.8 mm (2 in)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-51 °C to +177 °C (-60 °F to +350 °F)
