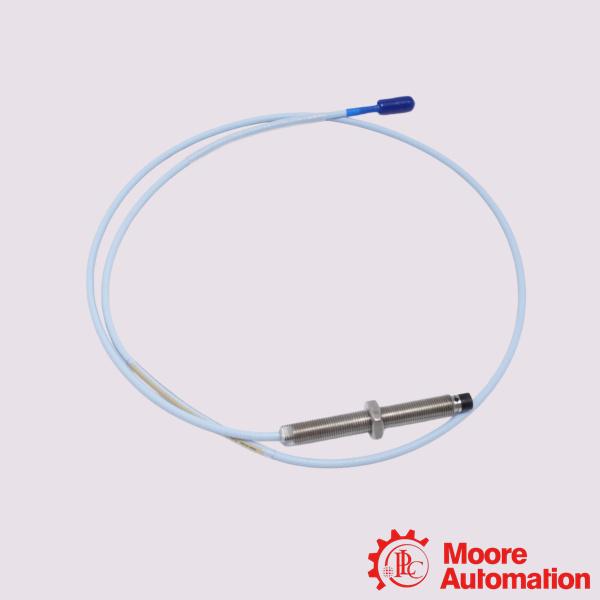

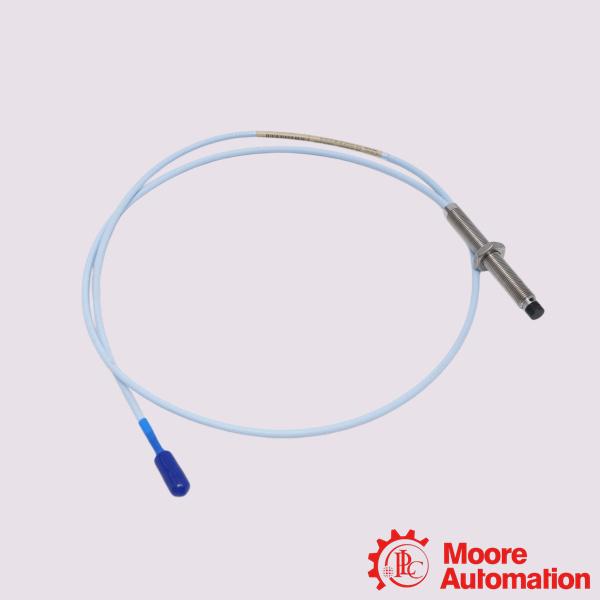

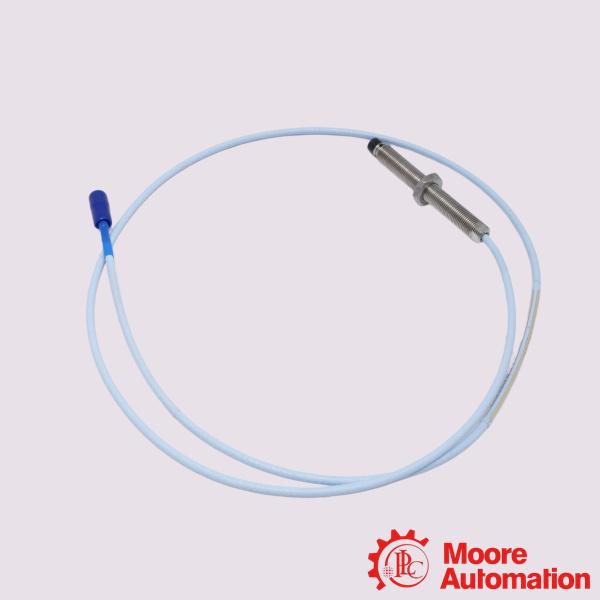

330103-00-05-05-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x113cm
Weight:
0.05kg
Country of Origin: :
USA
Description:
Bently Nevada 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-00-05-05-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probes

Full Description:	The 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. The 3300 XL probe also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body.

Application:

Oil & Gas Production: Used on upstream/downstream equipment like offshore platforms, pipelines, and drilling systems.
Hydrocarbon Processing & Refining: Deployed on critical refinery infrastructure to monitor high-risk rotating assets.
Electric Power Generation: Tracks health metrics in fossil-fuel plants, combined-cycle units, and nuclear power installations.
Heavy Manufacturing & Processing: Applied to machinery in pulp and paper, mining, and water treatment facilities.

Frequently Asked Questions (FAQ)

Q:What is the linear measurement range of this probe?
A:The 3300 XL 8 mm system features a total linear measurement range of 2.0 mm (80 mils). This range begins at a 0.25 mm (10 mils) gap distance away from the target material surface.
Q:Can this specific probe handle explosive environments?
A:Yes. The -05 approval option code equips the probe with multiple international explosion-proof certifications. It meets CSA, ATEX, and IECEx standards for safe deployment inside designated intrinsically safe or non-incendive hazardous zone areas where standard 8 mm probes would face extreme eddy-current side-loading errors from the machine walls.

Q:What is the function of the ClickLoc connector with the "12" option?
A:The "12" option provides gold-plated brass ClickLoc connectors that seamlessly lock together with finger-tight force to stop self-loosening. It also includes a pre-installed connector protector to shield the connection against oil, moisture, and rugged factory environments.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-00-05-05-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	50 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
