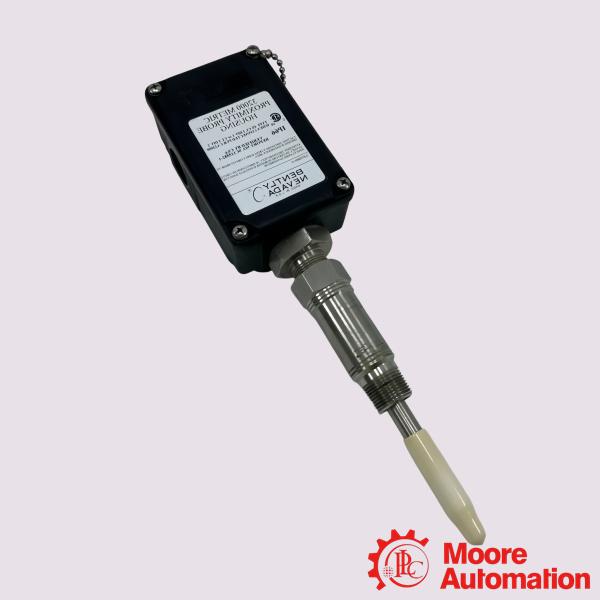

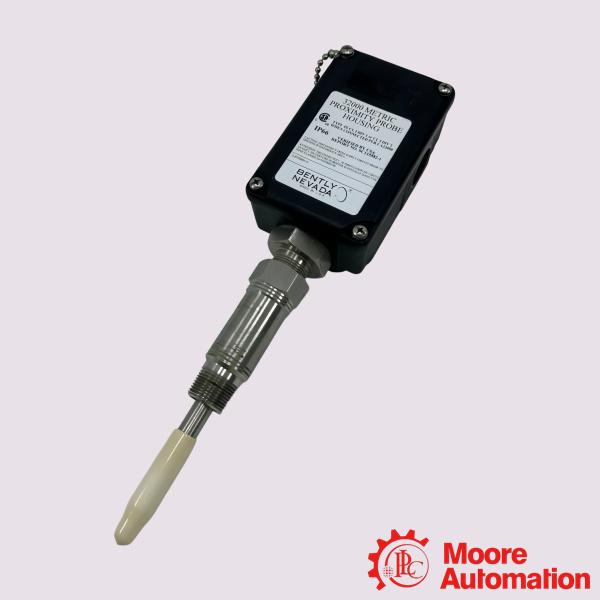

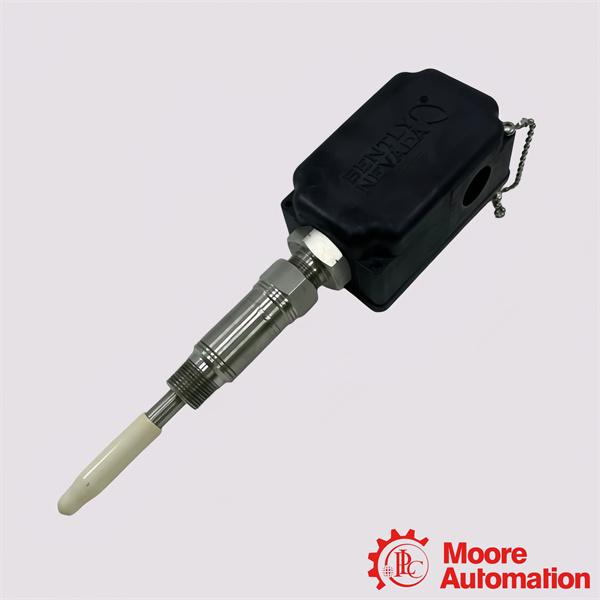

32000-28-05-15-080-03-02 | Bently Nevada Metric Proximity Probe Housing Assemblies

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
123 × 1.8 × 1.6 cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 32000-28-05-15-080-03-02 Metric Proximity Probe Housing Assemblies

Inquiry now

Mfr. Part Number:	32000-28-05-15-080-03-02

Manufacturer:	Bently Nevada

Description:	Bently Nevada 32000-28-05-15-080-03-02 Metric Proximity Probe Housing Assemblies

Full Description:	The 32000-28-05-15-080-03-02 is made of polyphenylene sulfide (PPS), an advanced, highstrength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 32000-28-05-15-080-03-02 is made of polyphenylene sulfide (PPS), an advanced, highstrength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The 32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.

Application:

Steam & Gas Turbines: Placed radially around major turbine bearing caps to track shaft vibration and thermal growth clearances under extreme load changes.
Hydroelectric Generators: Tracks main rotor alignment, axial thrust positioning, and bearing wear patterns.
Nuclear & Thermal Auxiliaries: Protects high-speed boiler feed pumps, forced draft fans, and large electric motor bearings
Petrochemical Mixers & Reactors: Ensures long-term continuous operation of core power equipment in harsh chemical conditions.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this housing assembly?
A:It mounts an 8 mm proximity probe through a machine casing (such as a bearing housing cap). It protects the probe from external impacts and the elements while enabling operators to safely change or adjust the sensor gap without shutting down the machinery.
Q:Can the probe be replaced or adjusted while the machine is running?
A:Yes. The internal sleeve arrangement acts as an environmental block, allowing online probe replacement or gap adjustments without risking oil or process gas leakage.

Q:What materials are used to construct the assembly?
A:The main dome/housing is made of polyphenylene sulfide (PPS). PPS is a high-strength engineering thermoplastic designed for exceptional chemical and corrosion resistance. All remaining external hardware and sleeve components are manufactured from corrosion-resistant stainless steel.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：32000-28-05-15-080-03-02
Probe with Connector	3300 XL 8 mm probe, multiple approvals
Probe Cable Length	0.5 m (20 in)
Probe Penetration Option	80 mm
Mounting Thread Option	3/4-14 NPT (Required if ordering Standoff Adapter Option)
Sleeve Material and Retaining Chain	AISI 304 stainless steel
Operating and storage	-51°C to +177°C (-60°F to +351°F)
