in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x119cmWeight:
0.15kgCountry of Origin: :
USADescription:

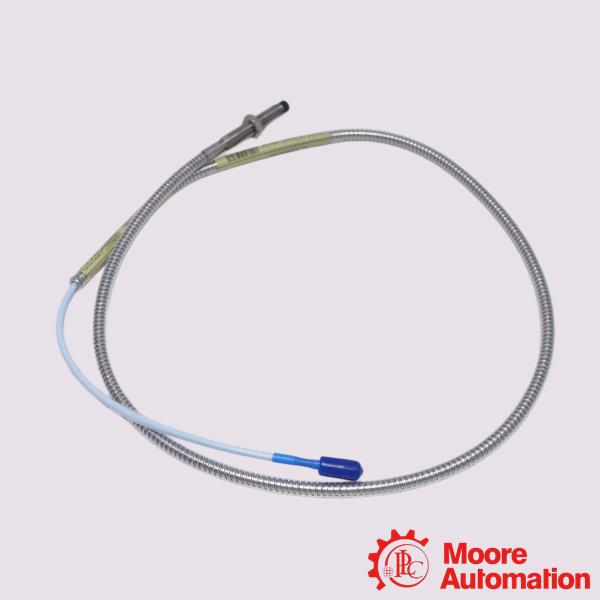

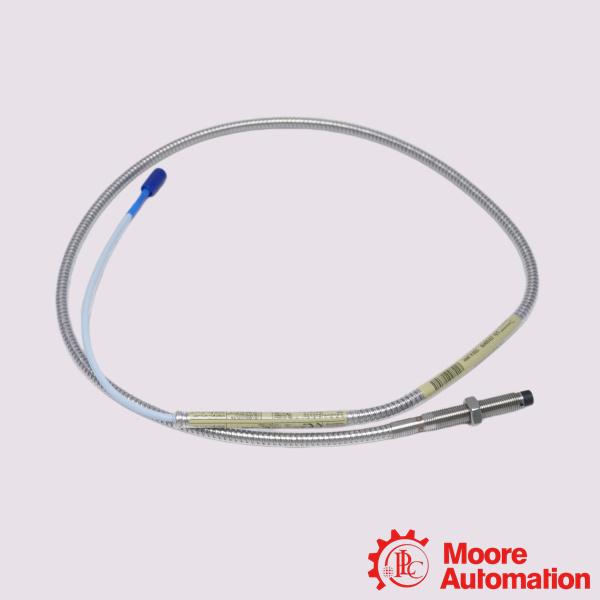

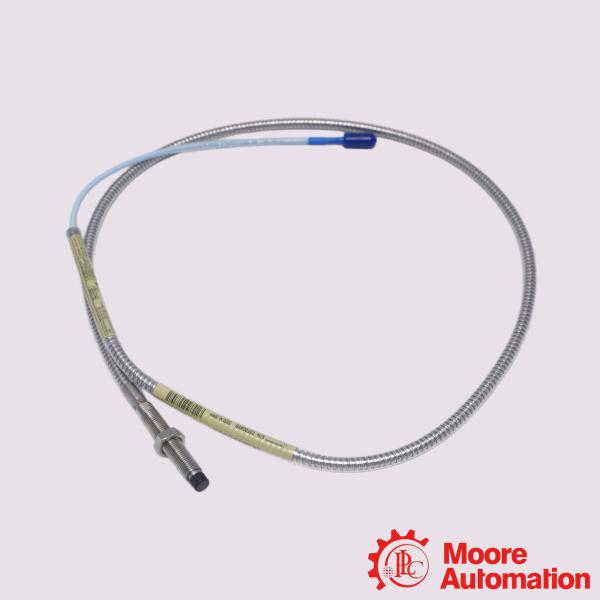

Bently Nevada 330102-02-12-05-01-CN 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330102-02-12-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330102-02-12-05-01-CN is an 8mm armored eddy-current proximity probe belonging to the industry-standard 3300 XL Proximity Transducer System. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Centrifugal Compressors: Continuous monitoring of high-speed shaft vibration to prevent catastrophic fluid film bearing destruction.
Gas Turbines: Real-time axial thrust displacement tracking to safeguard turbine stages against catastrophic rotor-to-stator contact.
Steam Turbines: Monitoring rotor expansion and shaft relative vibration during critical thermal startup cycles.
Generators: Detecting rotor dynamic faults such as synchronous vibration or sub-synchronous instability.
Frequently Asked Questions (FAQ)
Q:Can this probe be connected directly to a monitor or PLC?
A:No, the probe cannot be connected directly to a monitoring system or control unit without a Proximitor Sensor and matching Extension Cable. It requires a complete 3-part matched system (Probe + Extension Cable + Proximitor Sensor) to output a usable voltage signal (typically 7.87 V/mm or 200 mV/mil)
Q:What is the purpose of the "armor" option on this probe?
A:The "330102" specification dictates an integral stainless steel braided armor sleeve. This flexible casing surrounds the standard coaxial cable to protect it against physical abrasions, sharp bends, and harsh environment cutting hazards within the machine casing.
Q:Does this 9.0-metre probe require an extension cable?
A:No. Because the total cable length option is 90 (9.0 metres), this probe connects directly to a 9.0-metre Proximitor Sensor without the use of an intermediary extension cable. Mixing and matching total system lengths (e.g., using a 5-metre cable component in a 9-metre Proximitor loop) will cause significant calibration errors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330102-02-12-05-01-CN |
|
Unthreaded Length Option |
0.2 in. |
|
Overall Case Length Option |
1.2 in. |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
