Product Description:

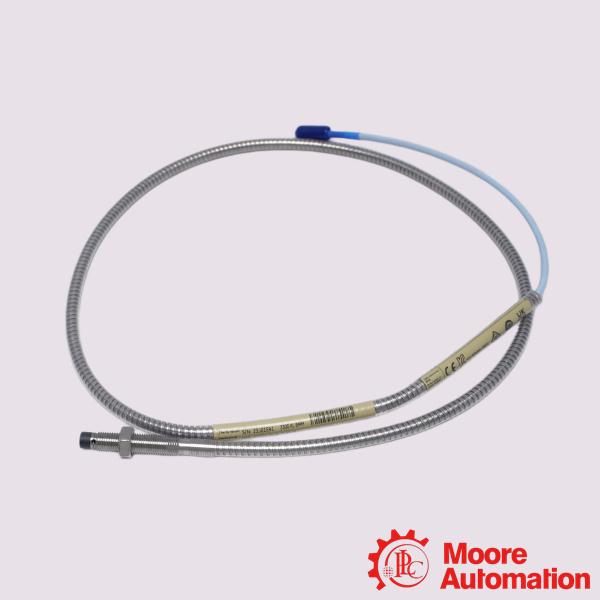

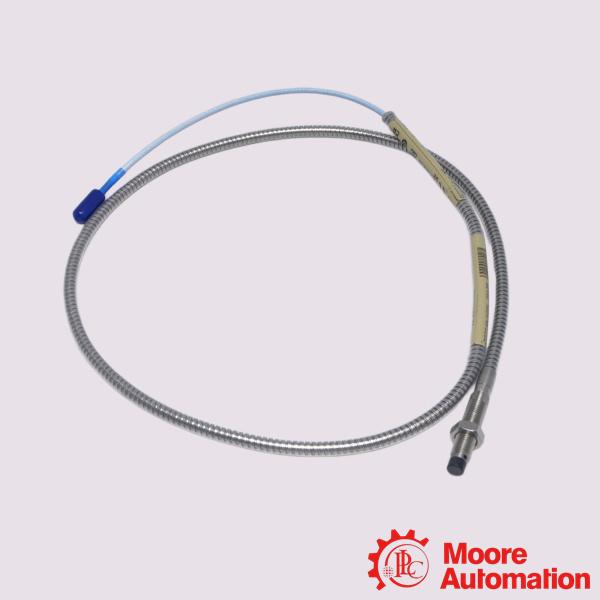

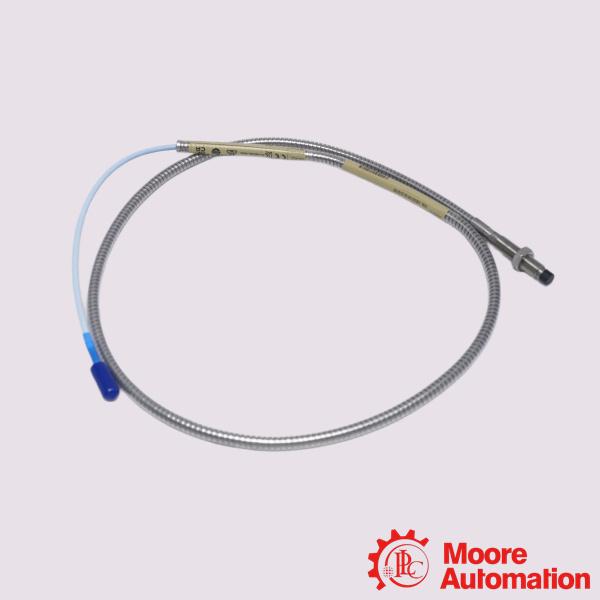

The Bently Nevada 330102-00-13-90-02-00 is an 8 mm eddy-current proximity probe belonging to the industry-standard 3300 XL Proximity Transducer System. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions (FAQ)

Q:What is the minimum recommended shaft diameter for measurement?

A:For standard radial vibration and axial position measurements, the minimum target shaft diameter should be at least 50.8 mm (2.0 inches) to avoid field distortion and crosstalk. If you must monitor smaller shafts, specialized calibration may be necessary.
Q:What is the minimum bend radius for the armored cable?
A:To prevent internal damage to the miniature coaxial line shielded by the stainless steel armor, maintain a minimum bend radius of 25.4 mm (1.0 inch) during installation and routing.

Q:Does this 9.0-metre probe require an extension cable?
A:No. Because the total cable length option is 90 (9.0 metres), this probe connects directly to a 9.0-metre Proximitor Sensor without the use of an intermediary extension cable. Mixing and matching total system lengths (e.g., using a 5-metre cable component in a 9-metre Proximitor loop) will cause significant calibration errors.
