Product Description:

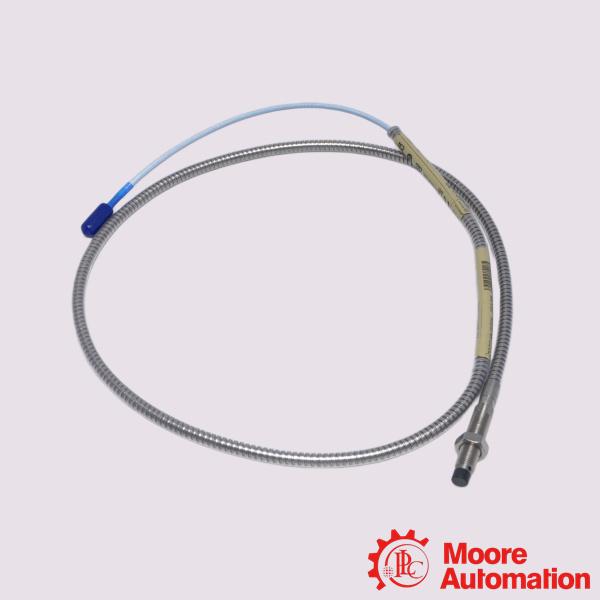

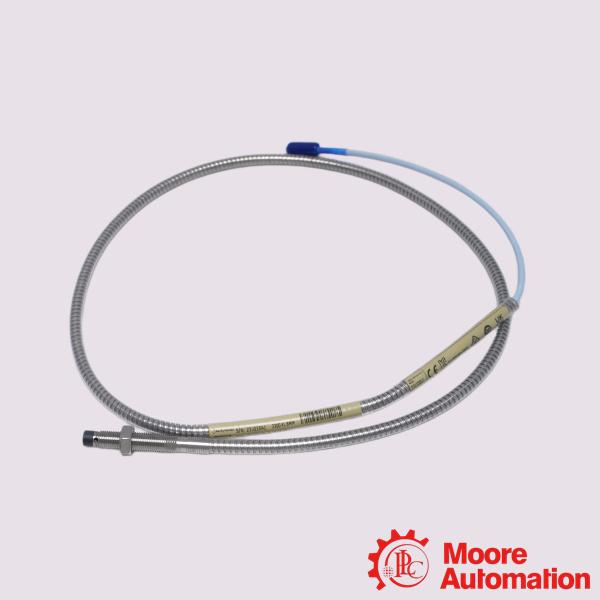

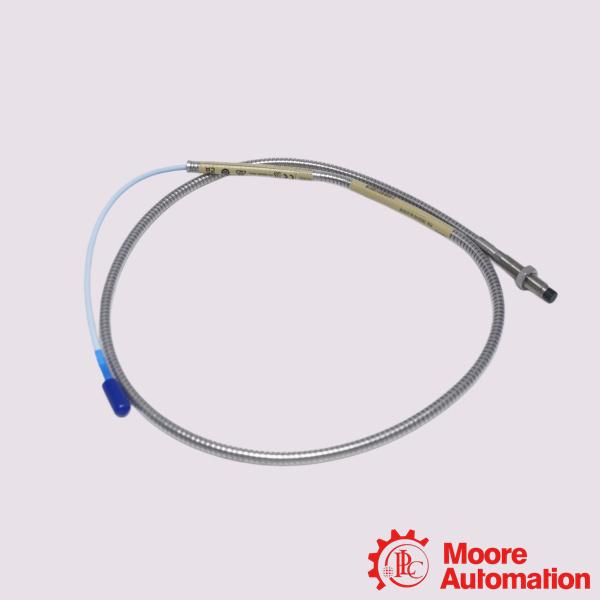

TThe Bently Nevada 330102-02-12-15-01-00 is an 8 mm eddy-current proximity probe belonging to the industry-standard 3300 XL Series. It is for non-contact, high-precision vibration and displacement monitoring in critical rotating machinery. Operating on fluid-film bearing equipment, it tracks real-time physical degradation to prevent catastrophic asset failure.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions (FAQ)

Q:What Proximitor Sensor and Extension Cable must I use with this probe?

A:You must pair it with a 5-meter 3300 XL Proximitor Sensor system. Because the probe itself has a total length of 1.5 meters, it requires a matching 3.5-meter extension cable to reach the necessary 5.0-meter system length required by the sensor's calibration. Mixing it with 9-meter system components will result in severe calibration errors.
Q:What does the ClickLoc connector protector do?
A:The 01 option includes a pre-installed connector protector over the gold-plated ClickLoc coaxial connector. This provides environmental shielding against moisture, oil, and dust at the connection point where the probe lead joins the extension cable.

Q:What is the function of the "Armor" on this model?
A:The 330102 designation specifically dictates a flexible stainless steel armor jacket over the triaxial cable. This provides heavy-duty mechanical protection against physical abrasion, sharp bends, pinching, and exposure to harsh industrial environments.
