Product Description:

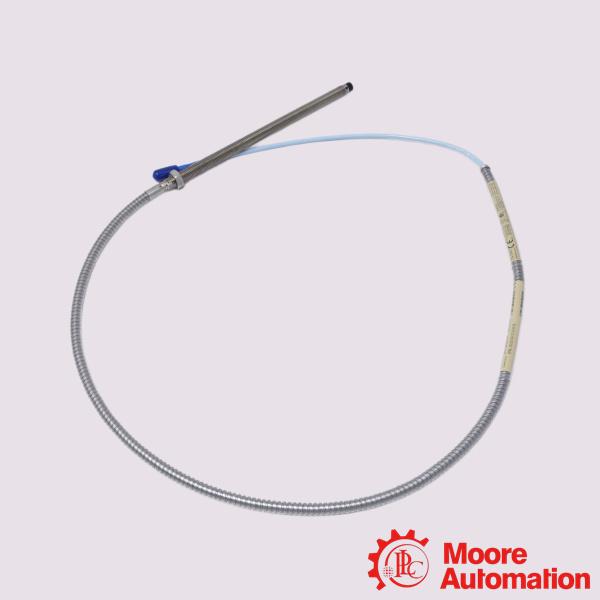

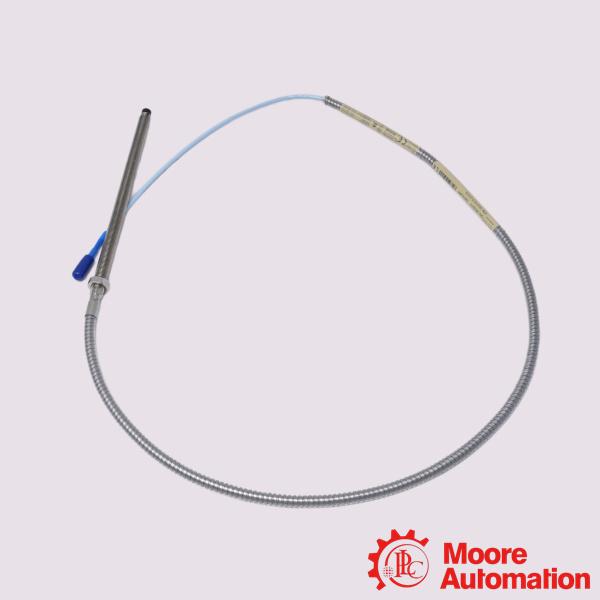

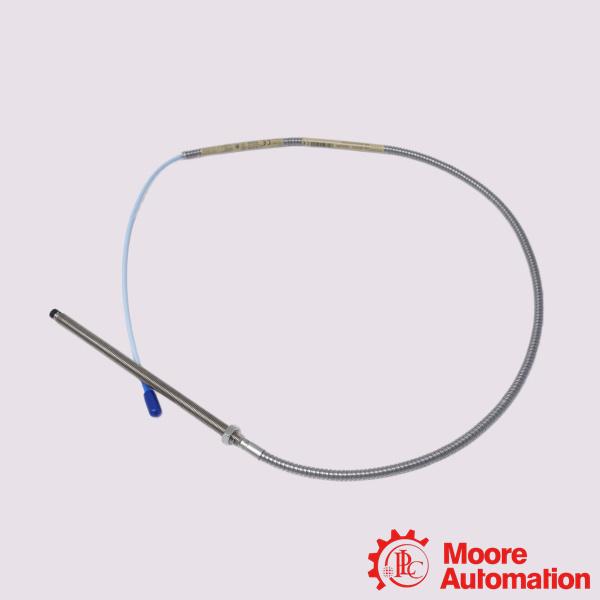

The Bently Nevada 330102-00-08-50-02-CN is an 8 mm eddy-current proximity probe from the 3300 XL series designed for non-contact vibration and displacement monitoring on critical rotating industrial machine.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Frequently Asked Questions (FAQ)

Q:Can this specific probe version be used in hazardous areas?

A:Yes, the "CN" suffix signifies specific hazardous area and environmental approvals targeted for regional standards. When deployed using appropriate safety barriers or galvanic isolators within a 3500 monitoring rack, it is fully rated for intrinsically safe industrial zones.
Q:What happens if I try to use this probe on a small shaft?
A:If you mount this 8 mm probe onto a shaft with a diameter smaller than 76.2 mm (3 inches), cross-talk or target curvature will alter the sensor’s default scale factor. You will need to verify target area spacing and perform a custom calibration check.

Q:What does this probe measure, and how does it work?
A:The probe operates using the eddy current principle. The internal coil creates a high-frequency magnetic field at the probe tip. As a conductive metallic target (like a machine shaft) moves closer or further away, it disrupts this field. The companion Proximitor sensor translates this disruption into a highly precise DC/AC voltage output directly proportional to the physical distance.
