in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.2kgCountry of Origin: :
USADescription:

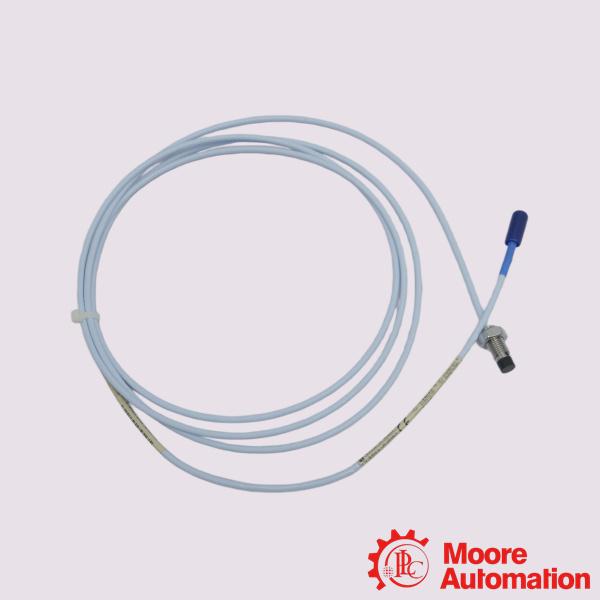

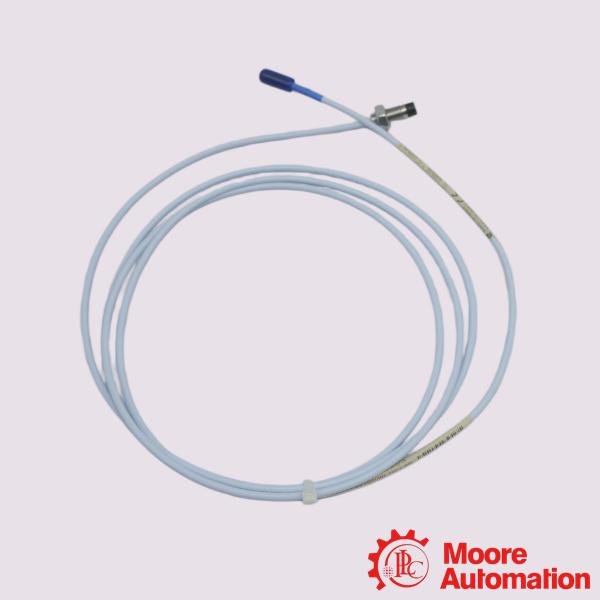

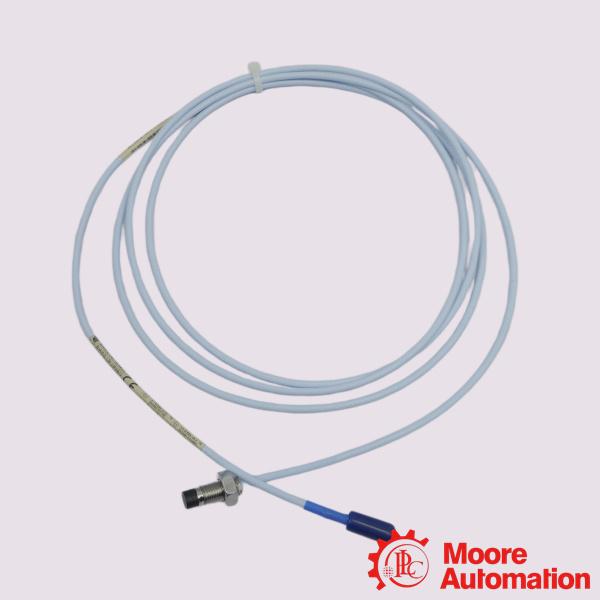

Bently Nevada 330101-43-63-90-02-00 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-43-63-90-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-43-63-90-02-00 is a specific configuration of the 3300 XL 8 mm Proximity Transducer Probe, a standard industrial eddy-current sensor used widely for machinery vibration and position monitoring.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Steam and Gas Turbines: Monitors rotor radial vibration (shaft dynamic motion) and axial thrust position (rotor displacement) to prevent catastrophic rotor-to-stator contact.
Centrifugal Compressors: Continually senses small shaft movements under massive pressures to identify oil whirl, rub, or imbalance before a shutdown occurs.
Turbo-Expanders: Monitors high-speed stability and process-driven thrust load variations.
High-Capacity Pumps: Monitors impeller shaft vibration and thrust bearing wear patterns.
Frequently Asked Questions (FAQ)
Q:What target material is this system calibrated to out of the box?
A:By default, all Bently Nevada proximity sensors are factory-calibrated to AISI 4140 steel target surfaces. Testing alternative materials will alter your voltage scale factor and require special factory recalibration.
Q:Can I mix this probe with older, non-XL 3300 components?
A:By default, Bently Nevada 3300 XL Proximitor Sensors are factory-calibrated to AISI 4140 steel. If your target shaft or collar is made of a different material (like stainless steel or aluminum), the scale factor will shift, requiring custom calibration or a modified Proximitor.
Q:Do I need an extension cable for a 9.0-meter system length?
A:Yes. Because this probe's built-in total cable length option is 9.0 meters, it must be paired with a 1.0-meter extension cable to reach the standard 10-meter overall system requirement for the designated Proximitor Sensor. Conversely, 1-meter probe options connect directly to 9-meter extension cables, while standalone 1-meter systems skip the extension entirely.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-43-63-90-02-00 |
|
Unthreaded Length Option |
4.3 in. |
|
Overall Case Length Option |
6.3 in. |
|
Total Length Option |
9.0 meters (29.5 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
