in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.2kgCountry of Origin: :
USADescription:

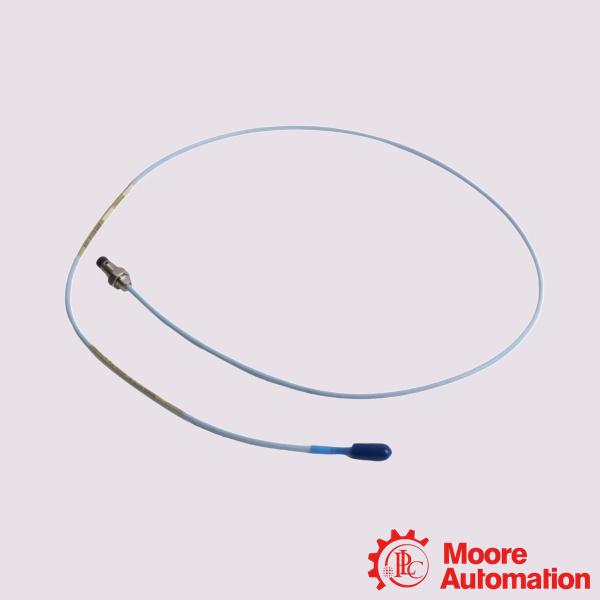

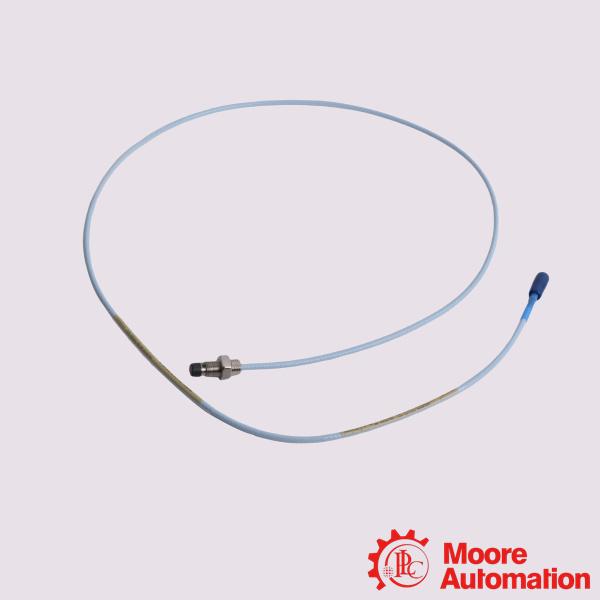

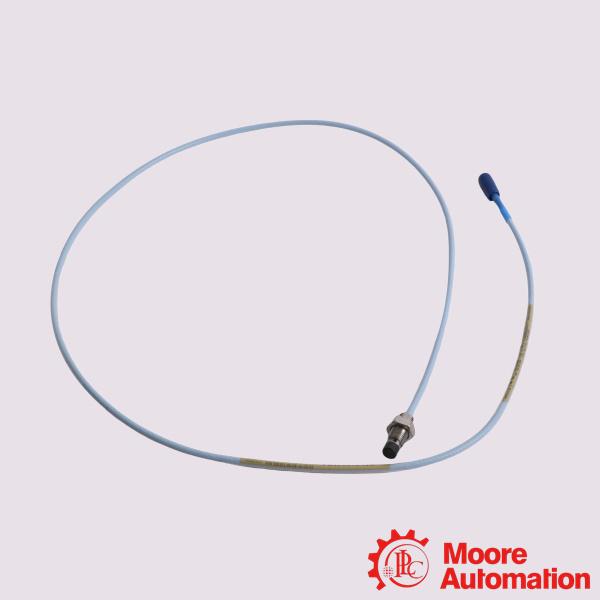

Bently Nevada 330101-30-62-05-01-00 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-30-62-05-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-30-62-05-01-00 is a specific configuration of the 3300 XL 8 mm Proximity Transducer Probe, a standard industrial eddy-current sensor used widely for machinery vibration and position monitoring.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Steam and Gas Turbines: Monitors rotor radial vibration (shaft dynamic motion) and axial thrust position (rotor displacement) to prevent catastrophic rotor-to-stator contact.
Centrifugal Compressors: Continually senses small shaft movements under massive pressures to identify oil whirl, rub, or imbalance before a shutdown occurs.
Turbo-Expanders: Monitors high-speed stability and process-driven thrust load variations.
High-Capacity Pumps: Monitors impeller shaft vibration and thrust bearing wear patterns.
Frequently Asked Questions (FAQ)
Q:What type of machine applications use this specific probe?
A:This probe is engineered for fluid-film bearing machines. It is most commonly deployed in heavy equipment like gas and steam turbines, centrifugal air compressors, pumps, and generators to measure radial vibration, axial (thrust) position, and speed/phase reference (Keyphasor).
Q:What target material is this probe calibrated for?
A:By default, Bently Nevada 3300 XL Proximitor Sensors are factory-calibrated to AISI 4140 steel. If your target shaft or collar is made of a different material (like stainless steel or aluminum), the scale factor will shift, requiring custom calibration or a modified Proximitor.
Q:Is this probe compatible with older, non-XL Bently Nevada systems?
A:Yes. The 3300 XL 8 mm components are both physically and electrically interchangeable with legacy, non-XL 3300 series 5 mm and 8 mm system components. However, if you mix XL and non-XL parts, your overall system accuracy will be limited to the lower performance specifications of the older non-XL system.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-30-62-05-01-00 |
|
Unthreaded Length Option |
3.0 in. |
|
Overall Case Length Option |
6.2 in. |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
