in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
20x20x2cmWeight:
0.2kgCountry of Origin: :
USADescription:

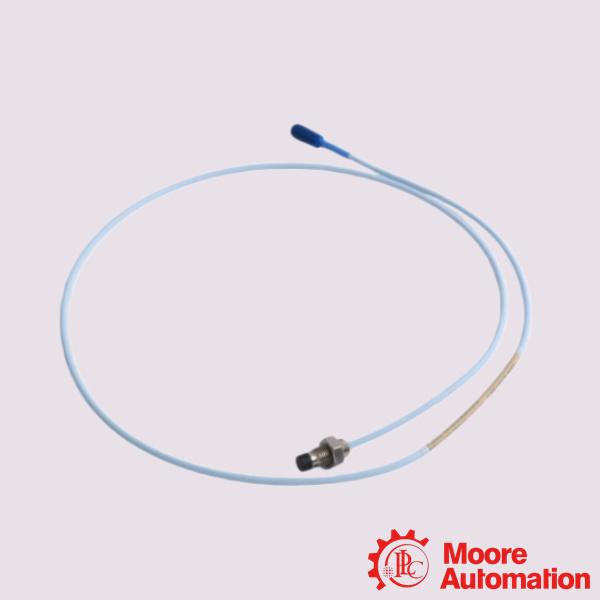

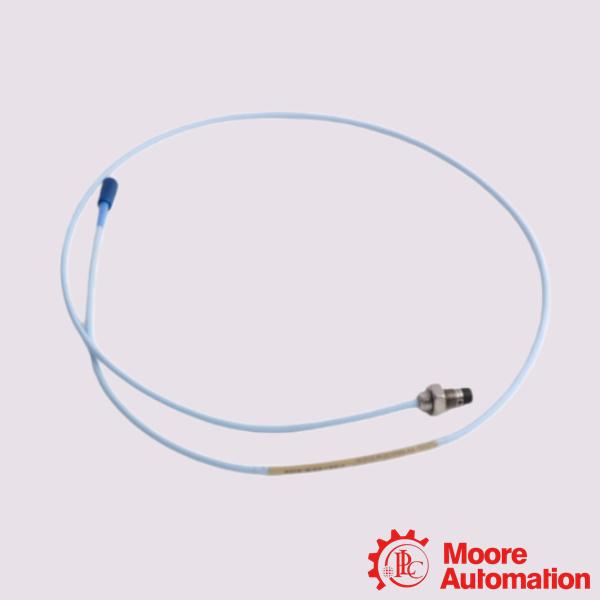

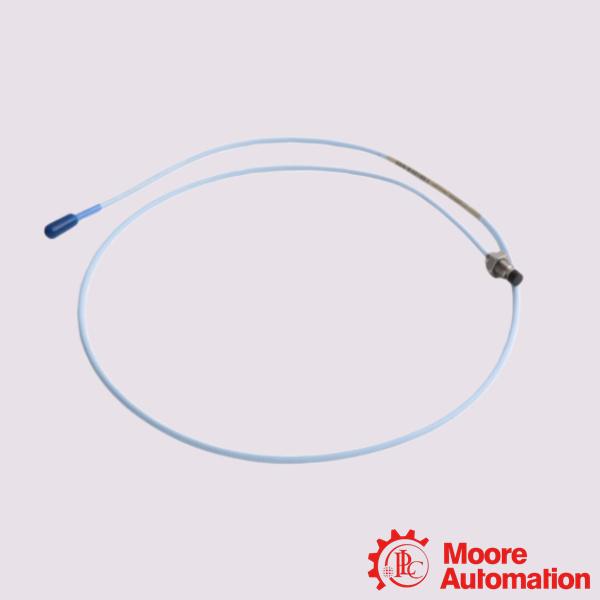

Bently Nevada 330101-02-12-50-01-00 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-02-12-50-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-02-12-50-01-00 is a 3300 XL 8 mm Eddy Current Proximity Probe for non-contact displacement and vibration measurements on critical rotating machinery. It fully complies with the API 670 Standard for machinery protection.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Power Generation: Used in coal, combined-cycle gas, nuclear, and hydro plants to monitor massive steam and gas turbines, generators, and large cooling pumps.
Oil & Gas (Upstream & Downstream): Deployed on critical offshore and onshore production assets, including centrifugal compressors, turbo-expanders, and high-pressure process pumps.
Petrochemical & Refining: Installed on critical process machinery handling hazardous or volatile liquids, ensuring tight mechanical tolerances.
Mining & Metal Smelting: Applied to heavy-duty machinery like ore crushers, conveyor drives, air blowers, and large electric motors.
Frequently Asked Questions (FAQ)
Q:What is a "ClickLoc" connector with a connector protector (Option 01)?
A:The ClickLoc is a gold-plated brass coaxial connector that locks with finger-tight torque, clicking to confirm a secure connection without needing special tools. The connector protector is a pre-installed clear plastic sleeve that shields the connection point from environmental contaminants, moisture, and fluids at the machine housing entry point.
Q:What target material is this system calibrated for out of the box?
A:The standard factory calibration target for the 3300 XL 8 mm system is AISI 4140 steel. If your machine shaft is made of a different material (e.g., stainless steel or chrome alloy), the scale factor will shift, requiring custom calibration or a target factor adjustment.
Q:Can this probe be used in hazardous or explosive environments?
A:No, the 00 approval option specifies that this particular part number does not carry hazardous area certifications (like ATEX, IECEx, or CSA). If your facility requires an intrinsically safe or non-incendive rating, you must order the probe with the 05 option or country-specific approvals.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-02-12-50-01-00 |
|
Unthreaded Length Option |
0.2 in. |
|
Overall Case Length Option |
1.2 in |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
