330101-00-18-10-12-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.6x1.4x120cm
Weight:
0.06kg
Country of Origin: :
USA
Description:

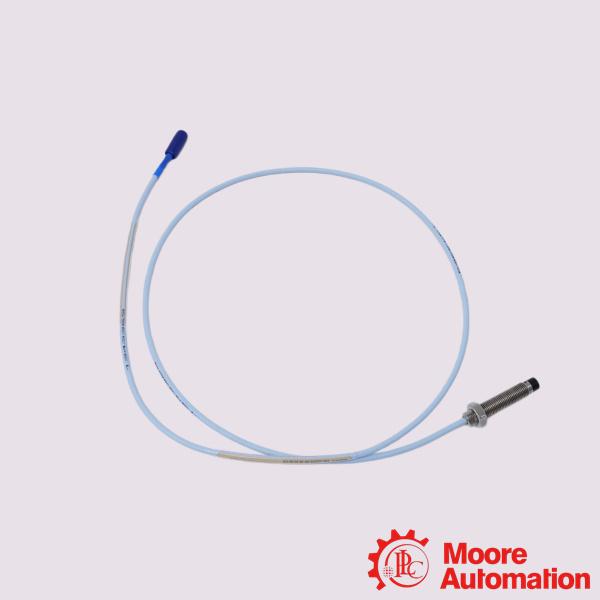

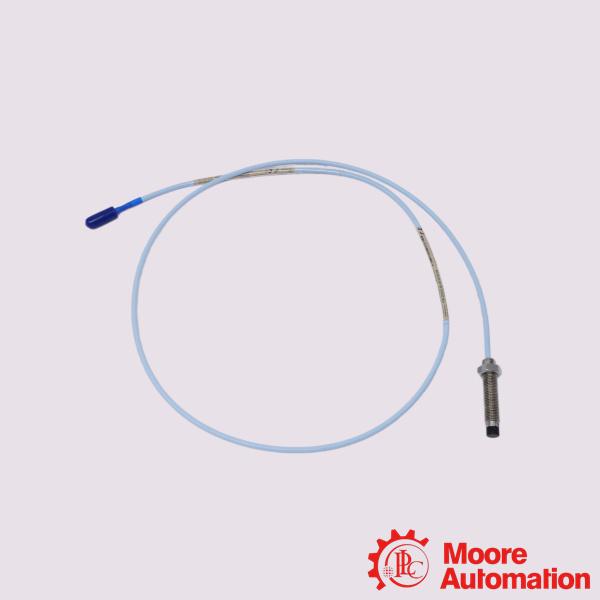

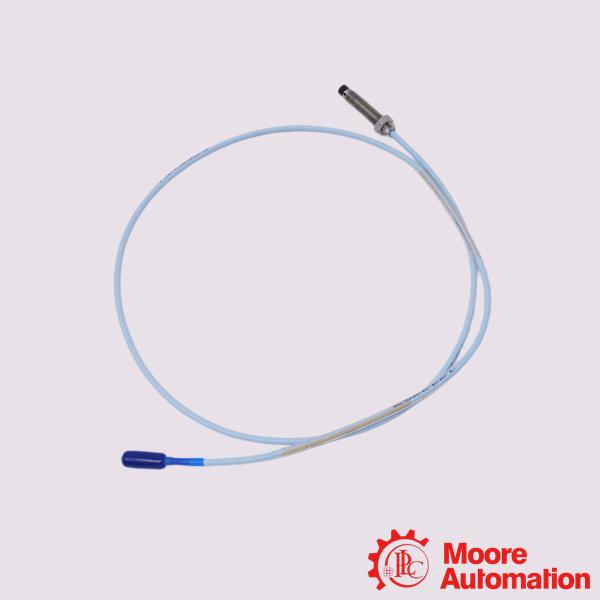

Bently Nevada 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-18-10-12-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probes provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Steam & Gas Turbines: Monitors extreme thermal expansion, rotor vibration, and generator shaft alignment.
Hydroelectric Generators: Tracks low-speed shaft runout and thrust load variations.
Petrochemical & Process Gas Equipment: Operates reliably around harsh chemical vapors due to its robust FluidLoc sealing technology.
Pulp, Paper, & Mining: Monitors large industrial gearboxes, draft fans, and heavy drive systems vulnerable to severe environmental shock and dust.

Frequently Asked Questions (FAQ)

Q:Does this 1-metre probe require an extension cable?
A:No. When configured with a 1.0-metre total length ("10"), the probe connects directly to the Proximitor Sensor. It is calibrated out of the box to act as a complete 1-metre system. Adding an extension cable will alter the electrical system length and disrupt the calibration.
Q:What target material is this system calibrated for?
A:By default, the 3300 XL system is calibrated to AISI 4140 steel. Measuring other target materials without custom factory calibration will compromise accuracy and linearity.

Q:What is the system's output behavior?
A:The system creates an output voltage directly proportional to the physical gap (distance) between the 8 mm probe tip and the target surface. This operates via the eddy current principle to track shaft vibration or thrust position.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-18-10-12-00
Unthreaded Length Option	0.0 in.
Overall Case Length Option	1.8 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS).
Probe Case Material	AISI 303 or 304 stainless steel (SST).
