in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.6x1.4x119cmWeight:
0.05kgCountry of Origin: :
USADescription:

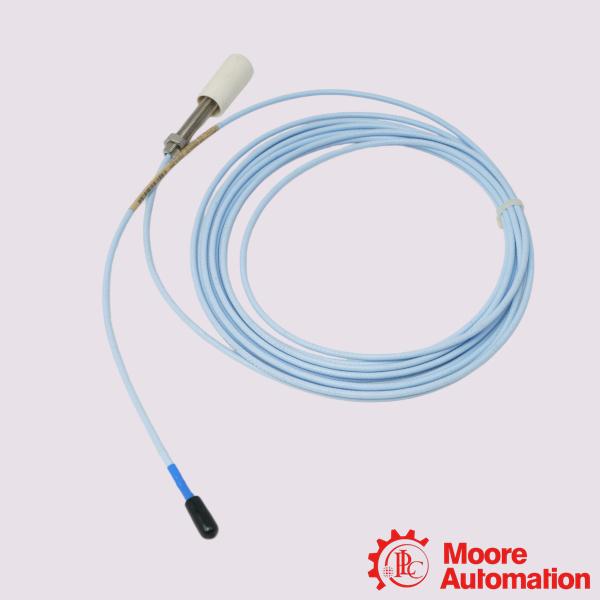

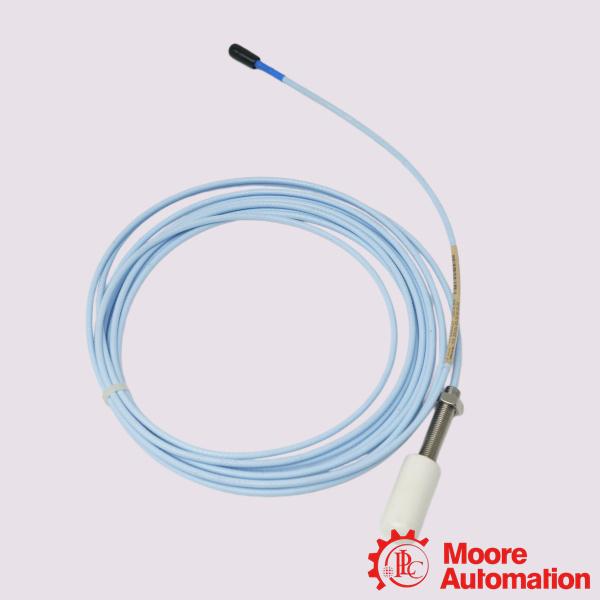

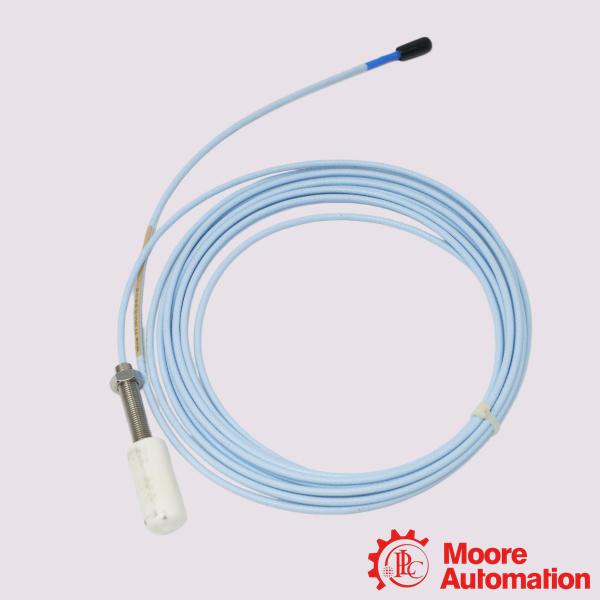

Bently Nevada 330101-00-15-10-01-05 3300 XL 8 mm Proximity Probe
| Mfr. Part Number: |
330101-00-15-10-01-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330101-00-15-10-01-05 is a 3300 XL 8 mm proximity probe primarily targeted at heavy rotating machinery in high-precision, safety-critical industrial applications. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Pulp & Paper Mills: Installed on large refining machinery and heavy-dryer section bearings.
Steel & Metal Smelting: Protects massive air-handling blowers and blast furnace fans.
Turboexpanders: Monitors high-speed machinery in liquified natural gas (LNG) processing.
Generators & Exciters: Safeguards large-scale power generators against severe shaft misalignments.
Frequently Asked Questions (FAQ)
Q:Can I mix 3300 XL components with older, non-XL 3300 series parts?
A:Yes, but with performance penalties. The XL components are physically and electrically interchangeable with non-XL 3300 5mm and 8mm parts. However, mixing them restricts overall system performance to non-XL standards.
Q:Does a 1.0-meter probe require an extension cable?
A:No. According to the manufacturer specifications, 1-meter systems connect directly to the Proximitor Sensor without an extension cable. Adding an extra cable will alter circuit resistance and ruin calibration.
Q:To what target material is this sensor calibrated by default?
A:The system is factory-calibrated to AISI 4140 steel. If your target shaft uses a different metal alloy, you must request custom calibration or apply correction factors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-15-10-01-05 |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
1.5 in. |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
