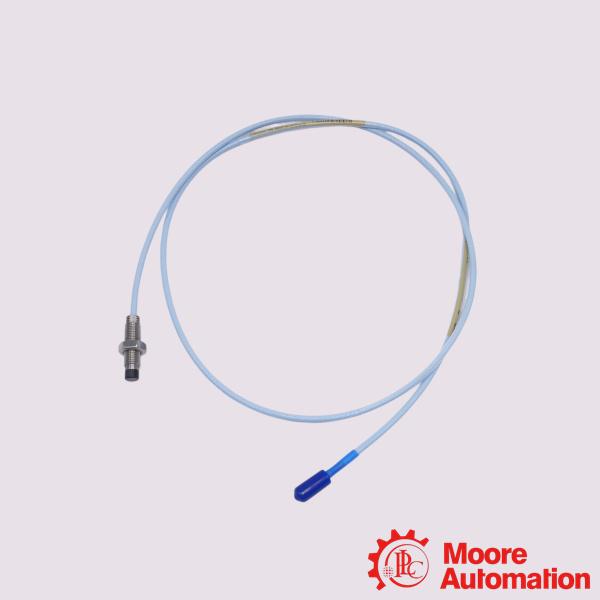

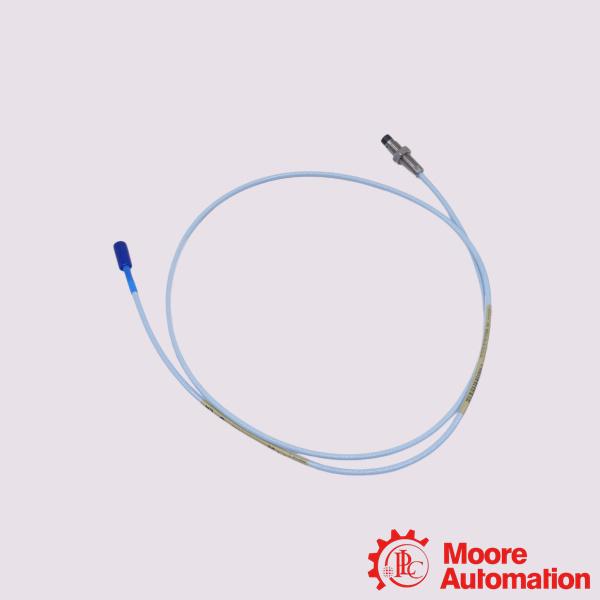

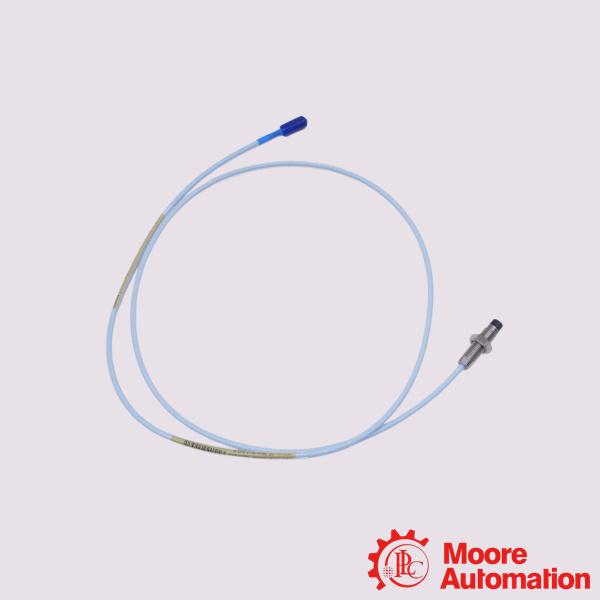

330101-00-13-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.6x1.4x112cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 330101-00-13-10-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-13-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-13-10-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330101-00-13-10-02-05 3300 XL 8 mm Proximity Probes delivers the most advanced performance in our eddy current proximity transducer systems.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-13-10-02-05 delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Application:

Steam & Gas Turbines: Tracks continuous radial vibration and axial thrust position of heavy turbine rotors to prevent catastrophic structural failure.
Generators: Monitors bearing oil-film gaps and shaft eccentricities during startup and continuous high-load states.
Boiler Feed Pumps: Guards heavy-duty fluid pumps against misalignment or cavitation-induced vibrations.
Pipeline Pumps & Turbo-expanders: Tracks rotating assemblies that push product over long-distance networks.

Frequently Asked Questions (FAQ)

Q:What is the scale factor/sensitivity of this probe?
A:The probe has a nominal scale factor of 200 mV/mil (7.87 V/mm) when paired with a matching 3300 XL extension cable and Proximitor sensor calibrated for a standard AISI 4140 steel target.
Q:Do I need special tools to connect this probe to the extension cable?
A:No. The model features a patented ClickLoc™ connector. It is a gold-plated, corrosion-resistant brass connection designed to be tightened finger-tight. A distinct "click" indicates that the self-locking mechanism has successfully engaged, preventing the connection from loosening due to machinery vibration.

Q:Is it necessary to match or recalibrate this probe to a specific sensor?
A:No. All components in the 3300 XL 8 mm system line are engineered with complete interchangeability. You can replace the probe, extension cable, or Proximitor sensor individually without the need to perform manual bench adjustments or custom recalibrations, provided the overall electrical lengths (e.g., 5-meter or 9-meter total system configurations) remain matched.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-13-10-02-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	1.3 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Thread Type	3/8"-24 UNF
Probe Tip Diameter	8 mm
