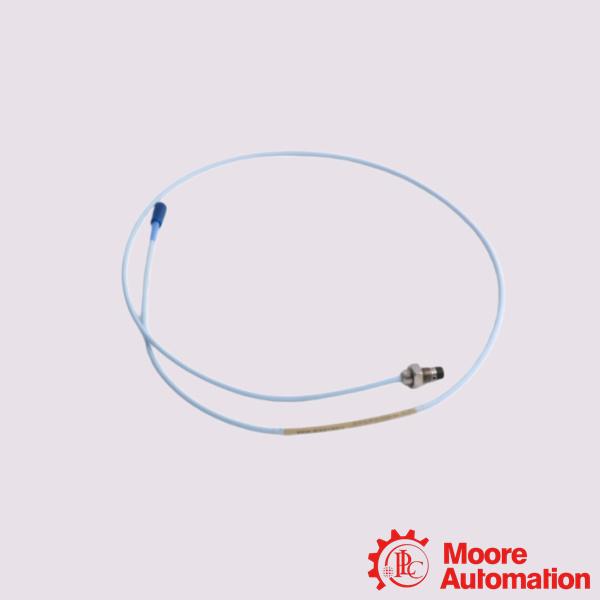

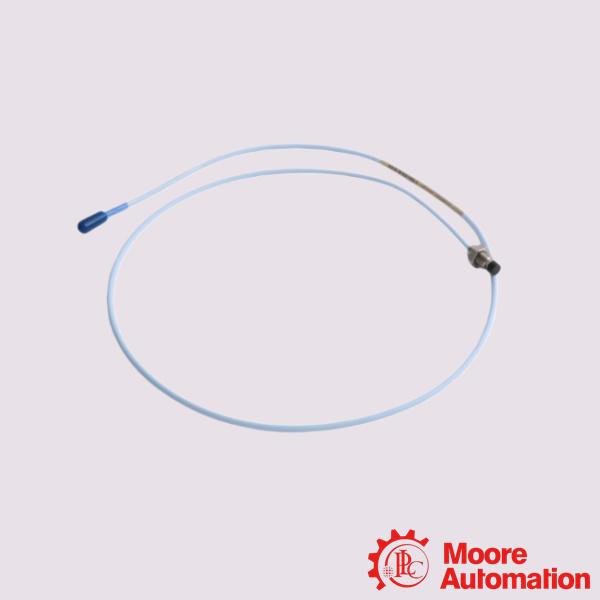

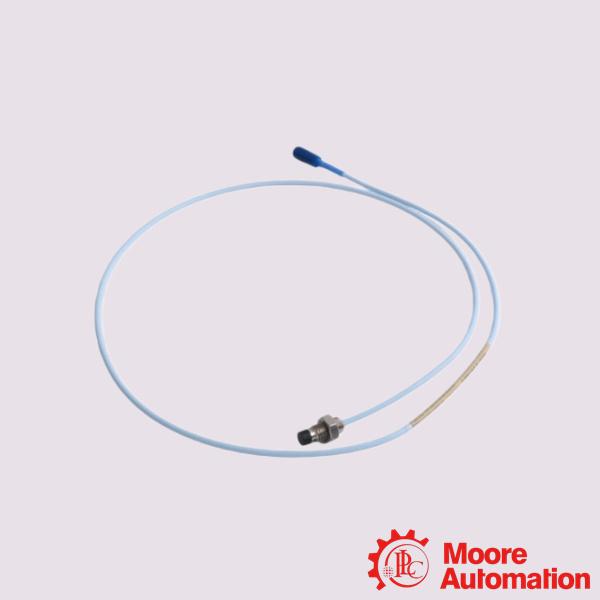

330101-00-60-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.5x1.3x116cm
Weight:
0.05kg
Country of Origin: :
USA
Description:
Bently Nevada 330101-00-60-10-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-60-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-60-10-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The 330101-00-60-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330101-00-60-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Steam and Gas Turbines: Monitors high-speed rotor dynamics and thermal casing expansion.
Generators: Measures radial vibration on main generator bearings to check mechanical stability.
Boiler Feed Pumps: Prevents catastrophic bearing damage from hydraulic pressure fluctuations.
Process Gas & Refrigeration Compressors: Tracks dynamic radial shaft position to identify fluid-film instabilities like oil whirl or oil whip.

Frequently Asked Questions (FAQ)

Q:What is the function of this proximity probe?
A:It is a non-contacting, eddy-current sensor that generates an output voltage directly proportional to the gap distance between the probe tip and a conductive target, such as a turbine shaft. It measures both static displacement (thrust position) and dynamic displacement (vibration).
Q:What is the scale factor/sensitivity of this system?
A:When paired with a matching 3300 XL extension cable and Proximitor sensor, the system features a nominal sensitivity of 200 mV/mil (7.87 V/mm) over a linear range of 80 mils (2.0 mm).

Q:What are the operational temperature limits for this probe?
A:The probe tip and body are rated for continuous operation and storage across a temperature spectrum of -51 °C to +177 °C (-60 °F to +351 °F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-60-10-02-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	6.0 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Minimum Target Size	15.2 mm (0.6 in) diameter (flat target)
