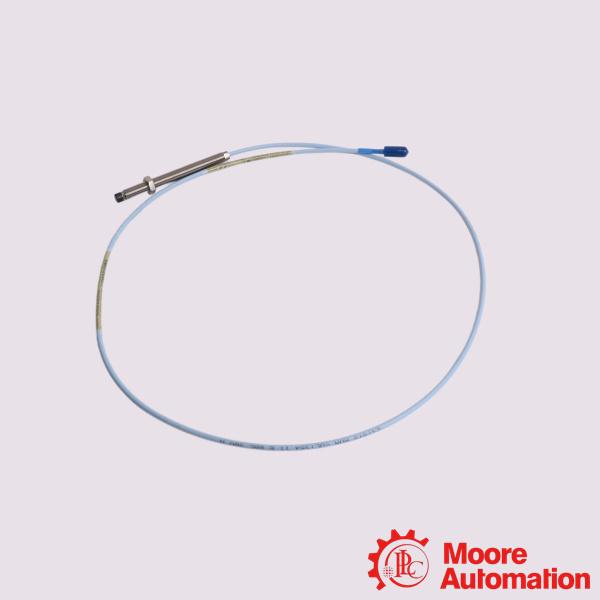

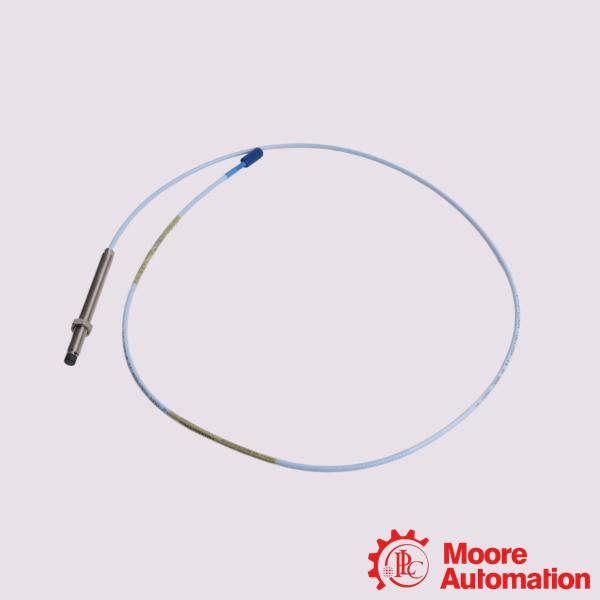

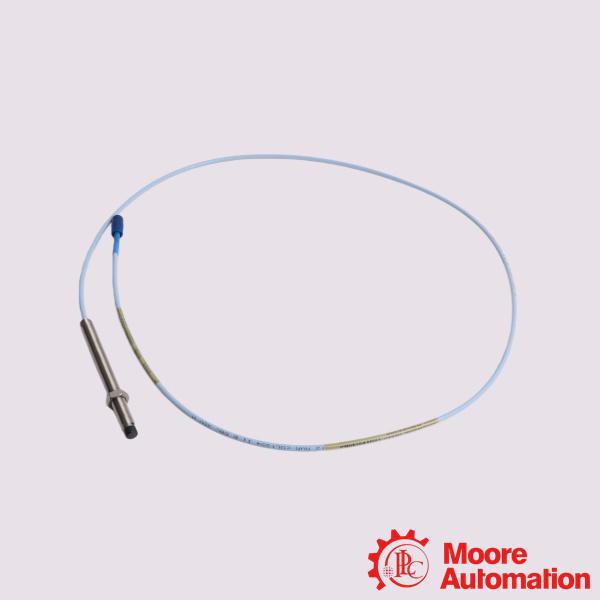

330101-00-40-10-01-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.5x1.3x68cm
Weight:
0.06kg
Country of Origin: :
USA
Description:
Bently Nevada 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-40-10-01-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probes

Full Description:	The 330101-00-40-10-01-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-40-10-01-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Application:

Power Generation: Used heavily in nuclear, thermal, and hydroelectric facilities to monitor heavy steam turbines, gas turbines, generators, and cooling tower pumps.
Oil and Gas (Upstream & Downstream): Deployed on offshore drilling platforms, refineries, and petrochemical plants. It monitors critical infrastructure like multi-stage centrifugal compressors, process pumps, and gas expanders.
Chemical Processing: Installed on high-speed mixers, reactors, and process air compressors to ensure safe operations with volatile materials.
Water & Wastewater Treatment: Implemented on large high-volume water transport pumps and blowers.

Frequently Asked Questions (FAQ)

Q:Can I use this 1.0-meter probe directly with a 5-meter or 9-meter Proximitor Sensor?
A:Yes, but you must use the correct extension cable. The total system electrical length must match the Proximitor Sensor rating exactly.
Q:What is the standard scale sensitivity of this system?
A:When paired with the matching 3300 XL Proximitor Sensor, it provides a linear measurement range of 2.0 mm (80 mils) with a nominal sensitivity of 200 mV/mil (7.87 V/mm). This enables high-accuracy tracking of machine tolerances.

Q:Does this specific variant come with an armored cable jacket?
A:No. The base part number 330101 denotes a standard unarmored triaxial cable. If your application features exposed lines vulnerable to sharp impact or physical grinding, you would require the 330102 model, which designates integrated stainless steel armor.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-40-10-01-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	4.0 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector
Agency Approval Option	CSA, ATEX, IECEx Approvals
Operating Temperature	-52°C to +100°C (-62°F to+212°F)
Output Resistance	50 Ω
