in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x111cmWeight:
0.06kgCountry of Origin: :
USADescription:

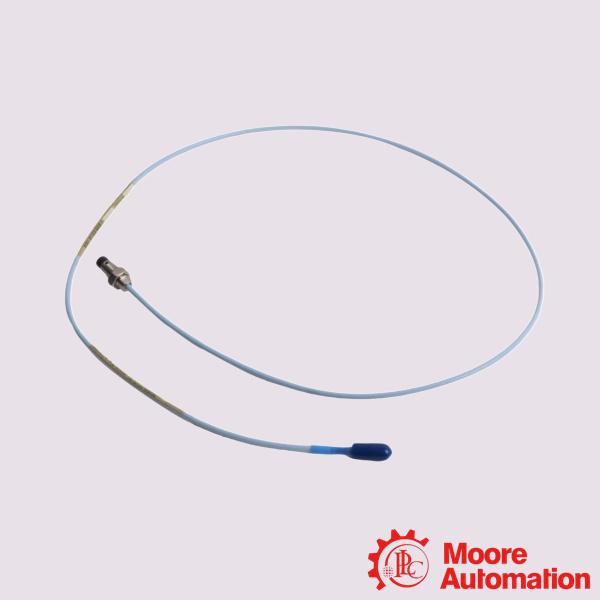

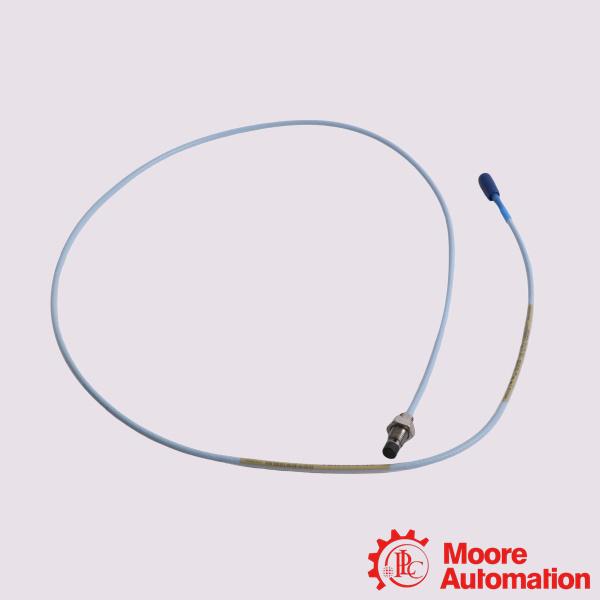

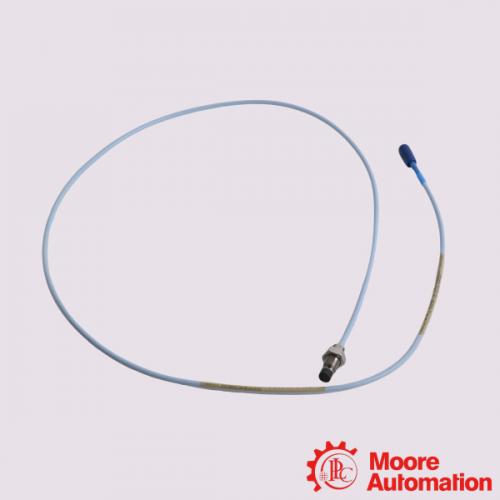

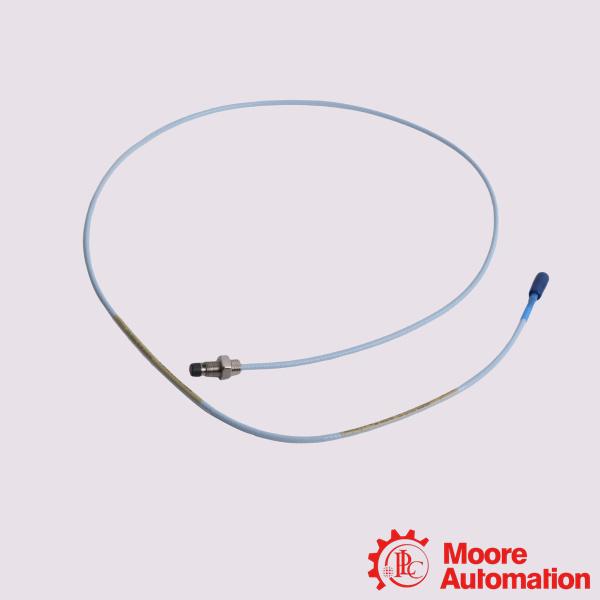

Bently Nevada 330101-00-08-15-02-CN 3300 XL 8 mm Proximity Probes
| Mfr. Part Number: |
330101-00-08-15-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The 330101-00-08-15-02-CN identifies a Bently Nevada 3300 XL 8 mm Proximity Probe. It is an eddy-current sensor used for real-time vibration and position monitoring in rotating industrial machinery. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Power Generation:Steam/gas turbines, turbo generators, boiler feed pumps, ID/FD fans for radial vibration, thrust position, Keyphasor speed pickup. API 670 compliant for critical turbine protection.
Oil & Petrochemical:Centrifugal process compressors, refinery large pumps, pipeline booster units. Stable signal under moderate casing heat up to 177°C.
Heavy Industry:Steel furnace blowers, cement mill fans, mine ventilation equipment. Rugged PPS tip resists minor mechanical impact.
Chemical Plants:High-speed fluid-film bearing compressors, circulation pumps for continuous shaft orbit and bearing wear trending.
Frequently Asked Questions (FAQ)
Q:What matching system parts work with this 1.5m probe?
A:Pair with 5m rated 330180 Proximitor and 3.5m standard extension cable (330130-035). Sum of probe + extension length must equal Proximitor full length. 1.5m probe cannot be used with 1m Proximitor.
Q:How to install ClickLoc connectors?
A:XL to XL connectors only finger-tight until audible click. No tools needed. Mating with old non-XL stainless connectors: finger tight plus 1/8 turn plier twist. Connector protectors recommended for oil-prone enclosures.
Q:What target material is factory calibrated?
A:Factory calibrated to AISI 4140 steel. Aluminum, stainless steel shafts shift scale factor and void interchangeability specs. Custom target calibration available via -05 certification option.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330101-00-08-15-02-CN |
|
Unthreaded Length Option |
0.0 in. |
|
Overall Case Length Option |
0.8 in. |
|
Total Length Option |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
