330171-00-28-10-02-05 | Bently Nevada 3300 5mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.1x0.9x75cm
Weight:
0.02kg
Country of Origin: :
USA
Description:

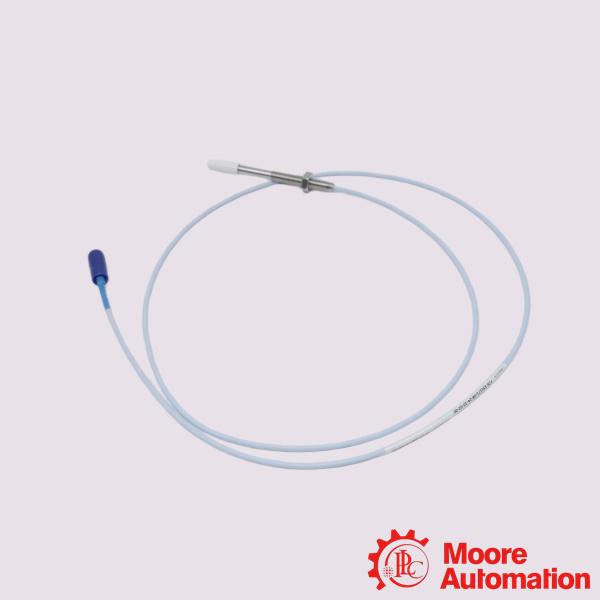

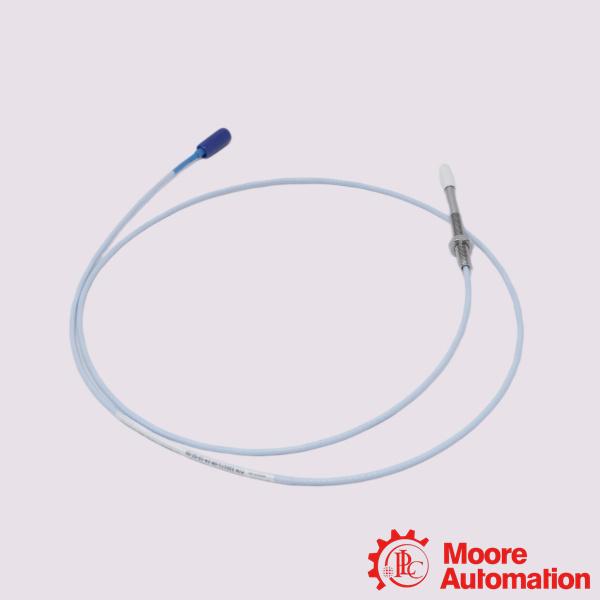

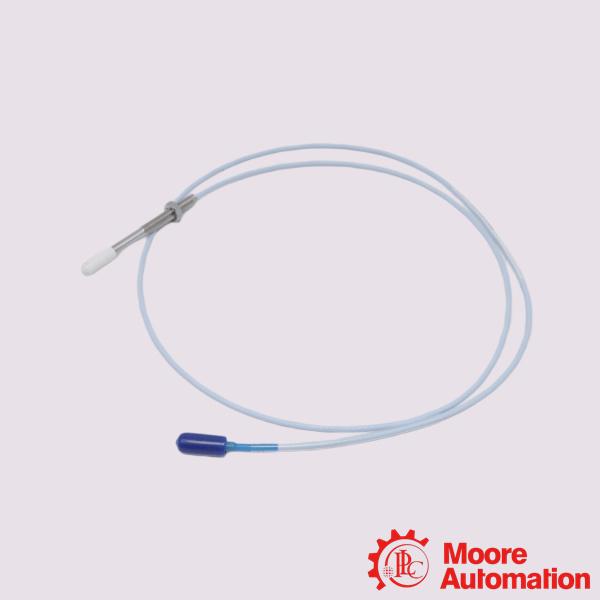

Bently Nevada 330171-00-28-10-02-05 3300 5mm Proximity Probes

Inquiry now

Mfr. Part Number:	330171-00-28-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330171-00-28-10-02-05 3300 5mm Proximity Probes

Full Description:	The 3300 5 mm Proximity Transducer System provides an accurate, stable signal output over a wide temperature range.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330171-00-28-10-02-05 3300 5mm Proximity Probes improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.

Application:

Power Generation: Monitors steam and gas turbines, hydro-turbines, and large generators to prevent catastrophic shaft failures.
Oil & Gas / Petrochemical: Safely tracks rotating components inside high-speed centrifugal compressors, pumps, and expanders in hazardous processing environments.
Heavy Manufacturing: Oversees critical gearboxes, fans, and blowers used in pulp, paper, and mining operations.
Steam & Gas Turbines: Monitors high-speed shaft vibration, structural misalignment, and thrust bearing wear.

Frequently Asked Questions (FAQ)

Q:What is the purpose of this proximity probe?
A:It operates via the eddy current principle to track shaft alignment, monitor bearing wear, and prevent critical machine failures by measuring displacement between the probe tip and the conductive target surface.
Q:What are its environmental and temperature limits?
A:The probe tip and cable are designed to withstand harsh industrial environments, with an operating temperature range typically rated from -35°C to +177°C (-31°F to +351°F).

Q:Does it require individual bench calibration or component matching?
A:No. According to technical specifications found on distributor platforms like Nordwel, the 3300 series supports full interchangeability. Probes, extension cables, and Proximitor sensors can be swapped without individual matching or manual calibration.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330171-00-28-10-02-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	2.8 in.
Total Length Option	1.0 metre (3.3 feet)
Connector Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple Approvals
Output Resistance	50 W
Recommended Gap Setting	1.27 mm (50 mils).
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Probe Temperature Range	-35°C to +177°C (- 31°F to +351°F)
