in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
37x9x8cmWeight:
1.7kgCountry of Origin: :
USADescription:

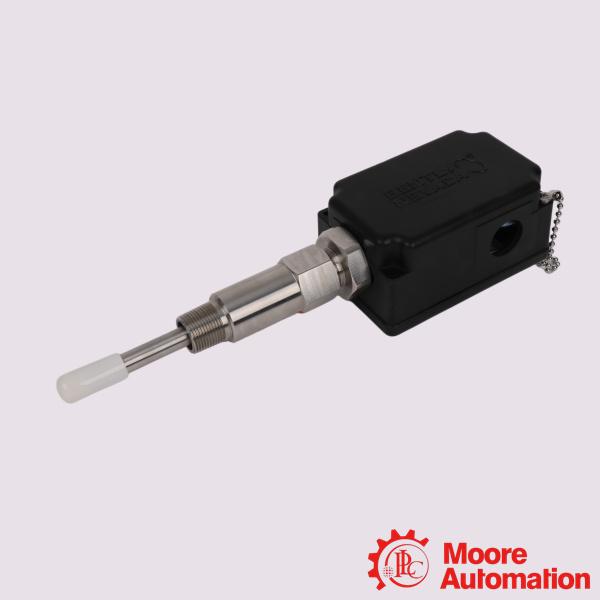

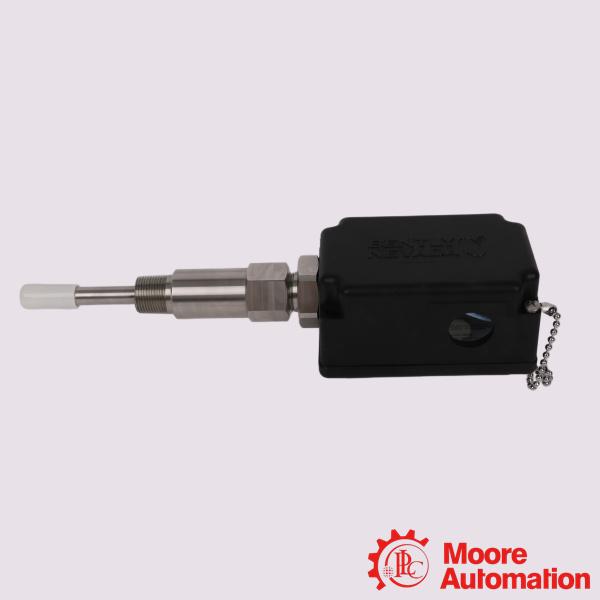

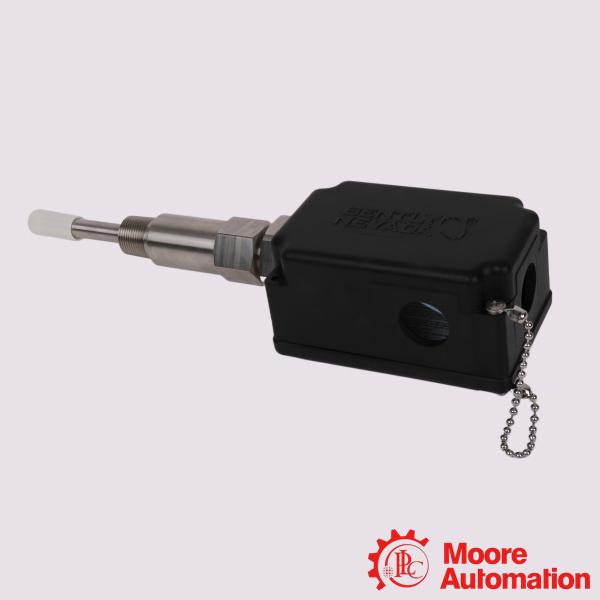

Bently Nevada 31000-16-05-00-071-03-02 Proximity Probe Housing Assemblies
| Mfr. Part Number: |
31000-16-05-00-071-03-02 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 31000/32000 Proximity Probe Housing Assemblies are
recommended when mounting proximity probes through the
machine case and are typically used for radially mounted
transducers, whether vibration or Keyphasor measurements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 31000-16-05-00-071-03-02 is a ruggedized Proximity Probe Housing Assembly for heavy industrial machinery. It serves to externally mount, position, and protect critical 3300 XL proximity sensors through a machine's casing to enable continuous condition monitoring, asset protection, and predictive maintenance. The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements.
Application:
Radial Vibration Measurement: Tracks dynamic shaft movement within fluid-film bearings to diagnose imbalances, misalignments, or mechanical looseness.
Mining & Heavy Manufacturing: Mounted on large gearboxes, air handling blowers, and high-capacity crushers that demand heavy physical protection for critical electronics.
Oil and Gas (Upstream & Downstream): Used on critical assets like multi-stage centrifugal compressors, turbo-expanders, and high-pressure water injection pumps.
Industrial Electric Motors & Generators: High-horsepower motors that rely on continuous monitoring of rotor position and bearing wear.
Frequently Asked Questions (FAQ)
Q:What is the primary purpose of this housing?
A:It allows machinery operators to adjust the probe gap externally or replace the proximity probe and extension cable without shutting down or dismantling the machine casing. It provides environmental isolation and explosive-area containment for critical machinery monitoring.
Q:Is this assembly corrosion resistant?
A:Yes. The internal components utilize Polyphenylene Sulfide (PPS) and stainless steel (SST) construction. The external enclosure is constructed of robust, anodized aluminum or cast iron depending on the exact housing shell selection, designed to withstand harsh industrial environments.
Q:Can the probe penetration depth be adjusted during installation?
A:Yes, but within a limited range. The sleeve adjustment range of Probe Penetration Option "D" (which is 7.1 inches in this configuration) allows for ±0.5 inches (13 mm) of fine adjustment.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：31000-16-05-00-071-03-02 |
|
Probe with Connector |
3300 XL 8 mm probe |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter Length |
No standoff adapter |
|
Probe Penetration Option |
7.1 in |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option) |
|
Operating and storage |
-51°C to +177°C (-60°F to + 351°F) |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
