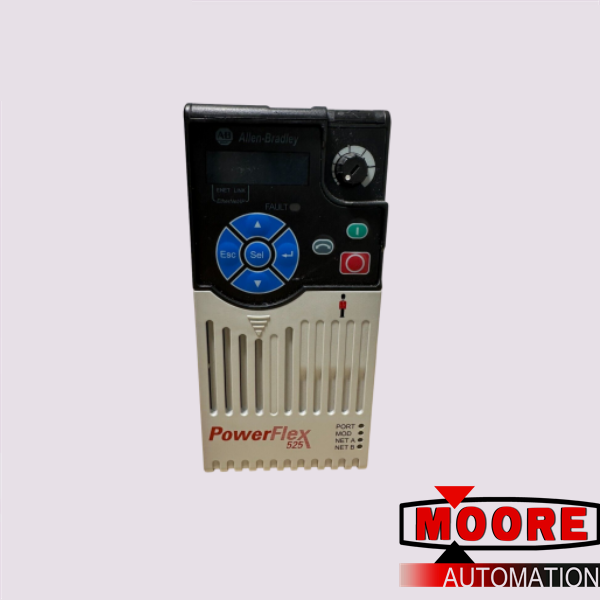

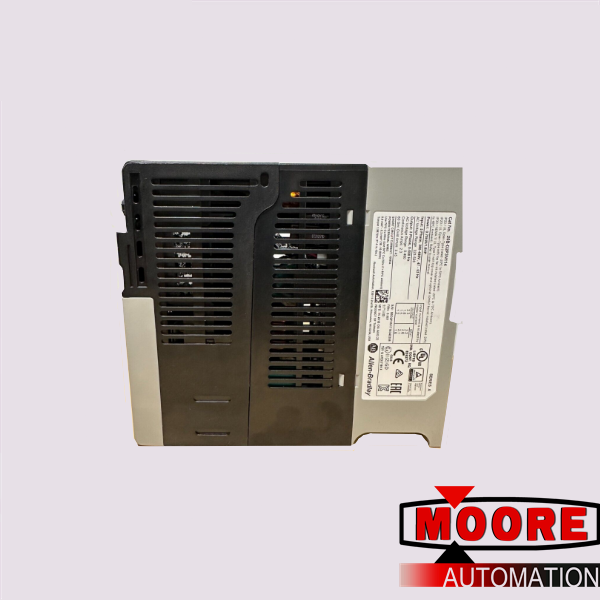

25A-D043N114 | | frequency drive

Brand/ Manufacturer:
Dimensions:
8.4cm*10.5cm*8.2cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
frequency drive

Inquiry now

Mfr. Part Number:	25A-D043N114

Manufacturer:

Description:	The 25A-D043N114 AC-powered drive is an adjustable frequency drive from the / Automation PowerFlex 523 series

Full Description:	The 25A-D043N114 adjustable frequency drive has a standard HMI and an EMC filter. Its frame is a Size E frame. The 25A-D043N114 adjustable frequency drive supports a maximum output current rating of 43 Amps.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Manufacturer	Automation
Brand
Part Number/Catalog No.	25A-D043N114
Series	PowerFlex 523
Voltage	Three Phase, 480 VAC

The 25A-D043N114 AC-powered drive is an adjustable frequency drive from the / Automation PowerFlex 523 series. It supports a 3-phase input voltage rating of 380 to 480 Volts AC and a 3-phase output voltage rating of 0 to 460 Volts AC.

The 25A-D043N114 adjustable frequency drive has a standard HMI and an EMC filter. Its frame is a Size E frame. The 25A-D043N114 adjustable frequency drive supports a maximum output current rating of 43 Amps.

The 25A-D043N114 drive is a part of the PowerFlex 523 series of compact, low-voltage drives. This drive operates using 3-phase, 480V AC voltage and it provides 43 Amperes output current. This device has a Frame E IP20 NEMA / Open Type enclosure and a modular design that will be the best fit for your industrial environment. The HMI feature for the PowerFlex drive is the standard HMI and there is 1 EMC filtering option.

The 25A-D043N114’s normal horsepower and kilowatt ratings are 30 HP and 22 kW, respectively, and the heavy-duty ratings are 25 HP and 18.5 kW, respectively. Its current output is 43 A. The 25A-D043N114’s input voltage range is 323-528V AC with a total Watts loss of 697 W.

Each 25A-D043N114 module features USB connection port programming. This drive has an Integral PID that adds to the flexibility. The drive allows for maximum user control using the PointStop motor-feature.
