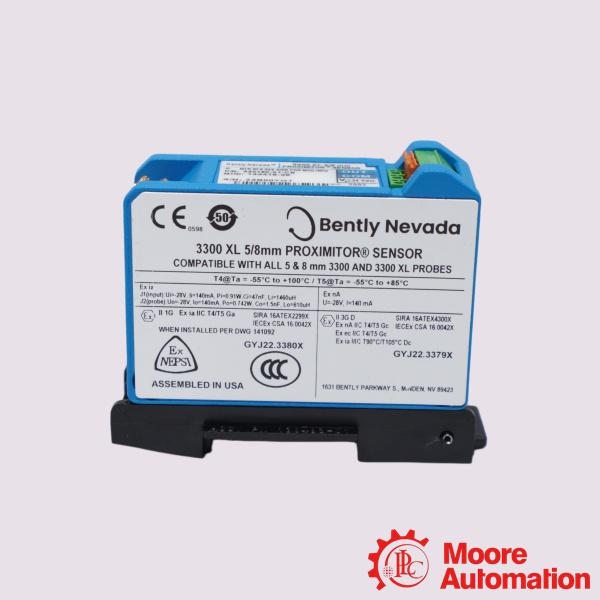

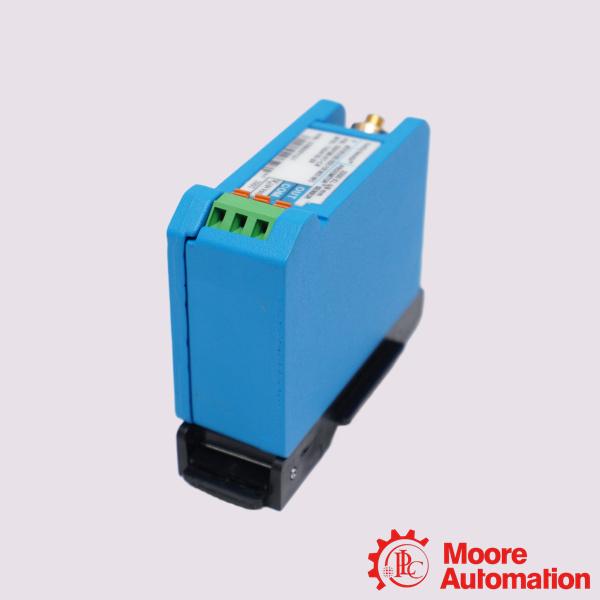

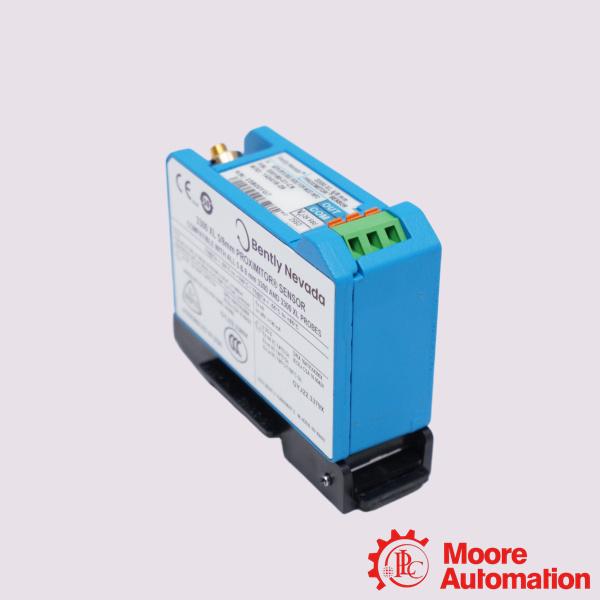

330180-X1-00 MOD: 145004-30 | Bently Nevada3300XL 5mm/8mm Proximitor Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.6x3.4x6.9cm
Weight:
0.22kg
Country of Origin: :
USA
Description:
Bently Nevada 330180-X1-00 MOD: 145004-30 3300XL 5mm/8mm Proximitor Sensor

Inquiry now

Mfr. Part Number:	330180-X1-00 MOD: 145004-30

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330180-X1-00 MOD: 145004-30 3300XL 5mm/8mm Proximitor Sensor

Full Description:	The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330180-X1-00 MOD: 145004-30 3300XL 5mm/8mm Proximitor Sensor delivers advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Application:

Oil & Gas Refining: Protecting upstream and downstream turbomachinery from unexpected breakdowns.
Power Generation: Monitoring critical turbine-generator sets in thermal and hydroelectric power plants.
Chemical & Petrochemical Processing: Ensuring structural integrity on compressors dealing with aggressive chemical mediums.
Marine & Offshore Systems: Applied to onboard propulsion shafts, turbochargers, and heavy auxiliary machinery exposed to saline conditions.

Frequently Asked Questions (FAQ)

Q:What happens if I use a standard 330180 sensor instead of this MOD version?
A:Using a standard sensor on an AISI 420 shaft will cause scale factor errors. Because different metals have distinct magnetic and electrical properties, the standard 200 mV/mil (7.87 V/mm) output sensitivity will drift, resulting in inaccurate vibration or thrust position readings.
Q:What probes and cables are compatible with this sensor?
A:This Proximitor is fully compatible with all 5mm and 8mm 3300 or 3300 XL proximity probes and their matching extension cables. However, ensure the total electrical length of your probe and extension cable equals 9 meters to match the sensor's tuning

Q:Do I need separate electrical isolation plates for mounting?
A:No. The integrated mounting base provides built-in electrical isolation, eliminating the need for separate isolator plates when securing it to the DIN rail

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330180-X1-00 MOD: 145004-30
Total Length and Mounting	Modification, DIN Mount
Agency Approval	Consult standard product datasheet; all options are available
Supply Voltage	-24 Vdc (standard negative voltage supply)
Load Resistance	10 kΩ
Linear Range	2.0 mm (80 mils) typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-51°C to +100°C (-60°F to +212°F)
Relative Humidity	100% condensing (non-immersion)
