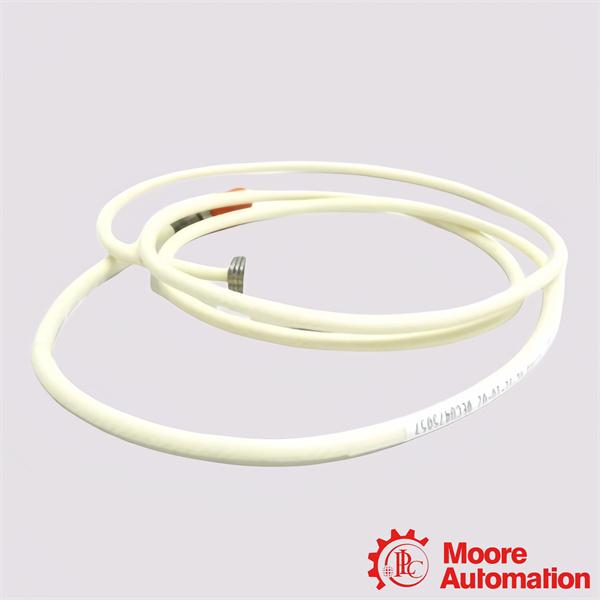

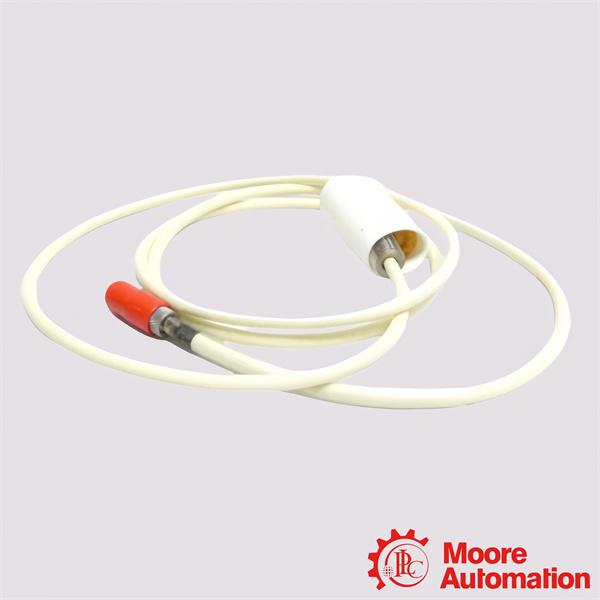

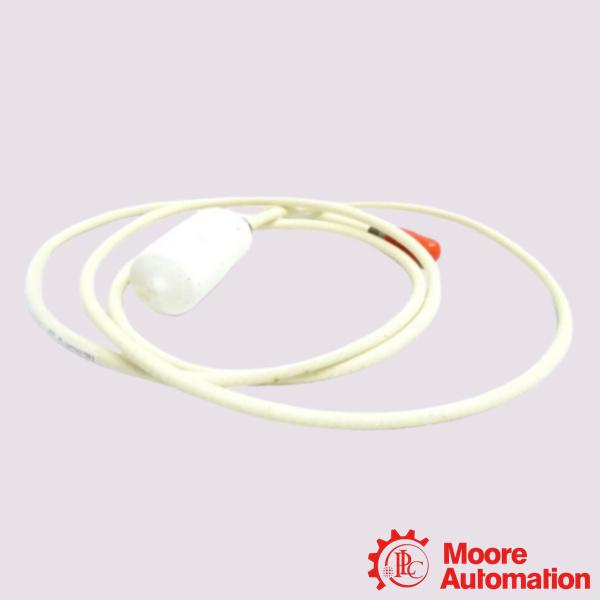

21508-02-12-10-02 | Bently Nevada Proximity Probe Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10.2 x 35.6 x 53.3 cm
Weight:
8.2kg
Country of Origin: :
USA
Description:
Bently Nevada 21508-02-12-10-02 Proximity Probe Sensor

Inquiry now

Mfr. Part Number:	21508-02-12-10-02

Manufacturer:	Bently Nevada

Description:	Bently Nevada 21508-02-12-10-02 Proximity Probe Sensor

Full Description:	The Bently Nevada 21508-02-12-10-02 is an eddy current bearing vibration/displacement proximity sensor, belonging to the classic 7200 series measurement system.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 21508-02-12-10-02 is a reverse-mounted eddy current displacement/vibration probe sensor specifically designed for monitoring industrial rotating machinery. This product belongs to the classic and reliable Bently Nevada 7200 series (5mm/8mm) proximity sensor system. It accurately measures the static and dynamic clearance between the surface of the measured metal shaft and the probe end face in a non-contact manner.

Application:

Power Generation: Continuous vibration monitoring of massive steam and gas turbines.Tracking bearing wear and rotor alignment in heavy-duty generator units.
Oil & Gas (Upstream & Downstream): Applied near process areas exposed to acidic, caustic, or variable chemical vapors that would corrode standard PLC hardware.Shaft runout detection in large centrifugal and reciprocating compressors.Axial thrust position tracking in high-pressure oil transmission pumps.
Chemical & Petrochemical Processing: Machinery condition monitoring for critical process pumps handling corrosive chemicals.Predictive maintenance data collection for high-speed industrial centrifuges.
Marine Engineering: Monitoring structural thrust bearing wear along primary propulsion shafts.

Frequently Asked Questions (FAQ)

Q:How to determine the probe installation distance (gap) during installation?
A:Fine-adjust the probe tightness until the voltage display shows -10.0 Vdc. At this point, the probe is exactly in the center of the linear measurement range (gap approximately 1.27 mm).
Q:What is the measuring range and sensitivity?
A:The 7200 series 8mm probe features a linear measuring range of 80 mils (2.0 mm). It features a nominal scale factor sensitivity of 200 mV/mil (7.87 V/mm) when paired with its matching Proximitor sensor.

Q:Which monitoring systems can this probe connect to?
A:The probe works natively with the 7200 Proximitor Sensor and is compatible with legacy 3300 and 9000 Monitoring Systems.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 21508-02-12-10-02
tal Cable Length Option	1.0 metre (39 inches)
nector Option	With miniature male coaxial connector
input	-17.5 Vdc to-26 Vdc at 12 mA maximum consumption
output	80 mils (2.0 mm)
Begins at approximately	10 mils (0.25 mm) from probe face
