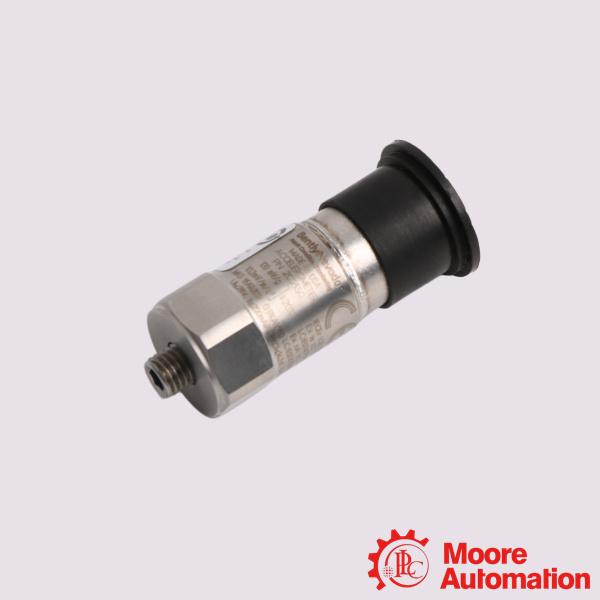

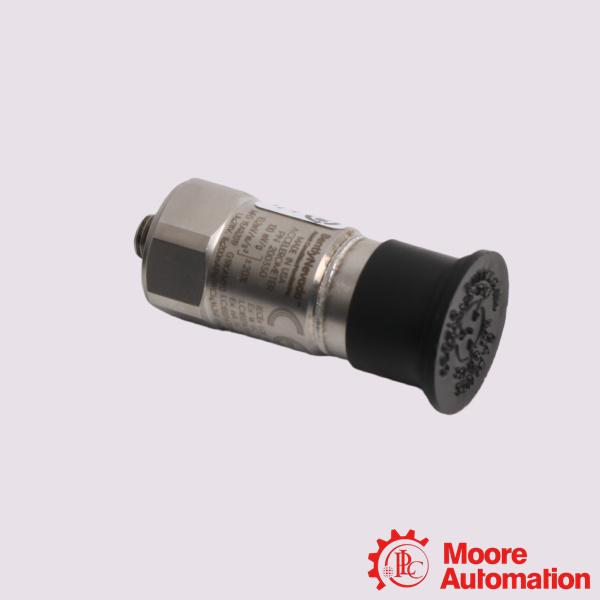

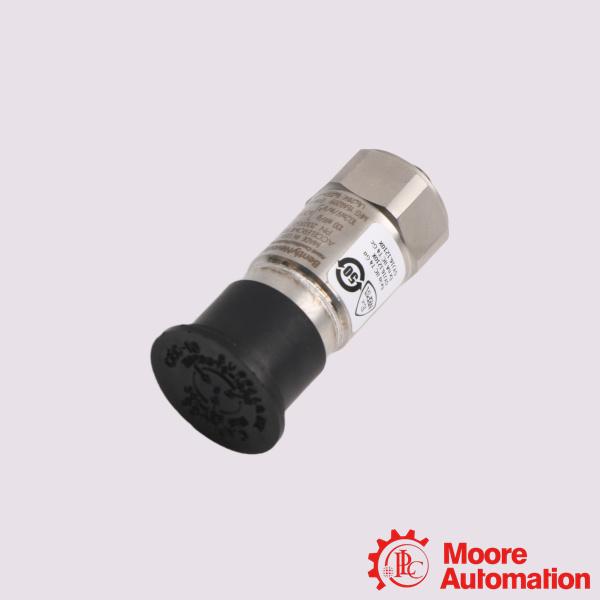

200350-09-00-00 | Bently Nevada Accelerometer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.2x3.6x3cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 200350-09-00-00 Accelerometer

Inquiry now

Mfr. Part Number:	200350-09-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 200350-09-00-00 Accelerometer

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 200350-09-00-00 Accelerometer is a general-purpose, case-mounted seismic transducer compatible with the Seismic Input Card (part number 149811-02) and the Seismic Direct Input Card (part number 164746-01). Each unit features a top-mounted 2-pin MIL-C5015 connector for easy signal cable installation and removal, while a ¼-28 threaded hole on the bottom of the casing provides multiple mounting options. Internally, the 200350-09-00-00 contains a piezoelectric sensing element that generates charge when exposed to vibration; this charge is electronically converted into a differential voltage signal proportional to the acceleration along the transducer's sensitive axis.

Application:

Cooling tower fans: Detects blade unbalance, structural looseness, and gearbox faults.
Water circulation pumps: Catches impeller cavitation, misalignment, and bearing wear.
Air compressors: Tracks case vibration to detect mechanical breakdown early.
Submersible & intake pumps: Detects clogging, shaft misalignment, and bearing distress.

Frequently Asked Questions (FAQ)

Q:Can I use this sensor with negative excitation systems?
A:No. The 200350 sensor hardware is designed exclusively for positive excitation voltage systems (+18 to +28 VDC). Do not use it with legacy systems providing negative excitation voltage (-Vex), as it will cause false data telemetry or permanent damage.
Q:What kind of cable connection does it use?
A:The top of the sensor features an industry-standard 2-pin MIL-C-5015 electrical connector. It connects via a 2-conductor twisted, shielded pair cable.

Q:What environment can this sensor withstand?
A:The unit boasts an IP68 enclosure rating, meaning it is dust-tight and completely waterproof against continuous immersion (non-submerged relative humidity up to 100% condensing). Its operating temperature range spans from -54°C to +121°C (-65°F to +250°F).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：200350-09-00-00
Mounting Stud	No mounting stud
Tolerance	100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)
Sensitivity	100 mV/g ±20% (10.2 mV/m/s^2 ±20%)
Measurement Range	± 50 g
Transverse Sensitivity	≤ 7%
Amplitude Linearity	± 1%
Output Bias Voltage	8 to 12 VDC
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Operating Temperature Range	-65°F to +250 ºF (-54°C to +121 ºC)
Shock Survivability	5,000 g pk
Approvals	No Approvals
