200350-00-00-CN | Bently Nevada Accelerometer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:

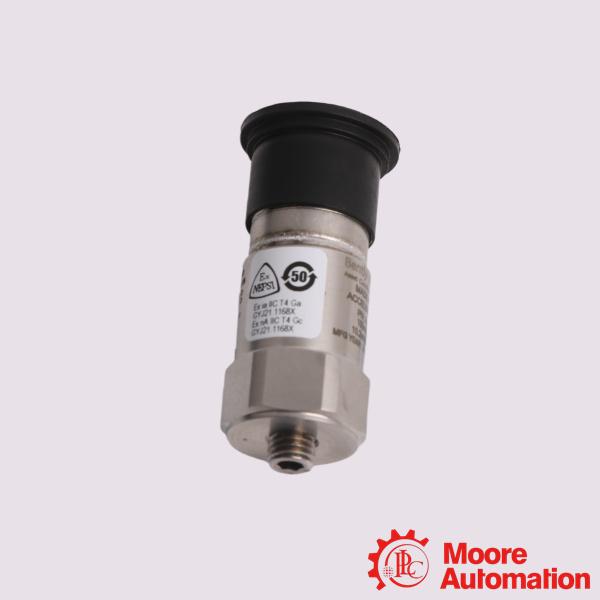

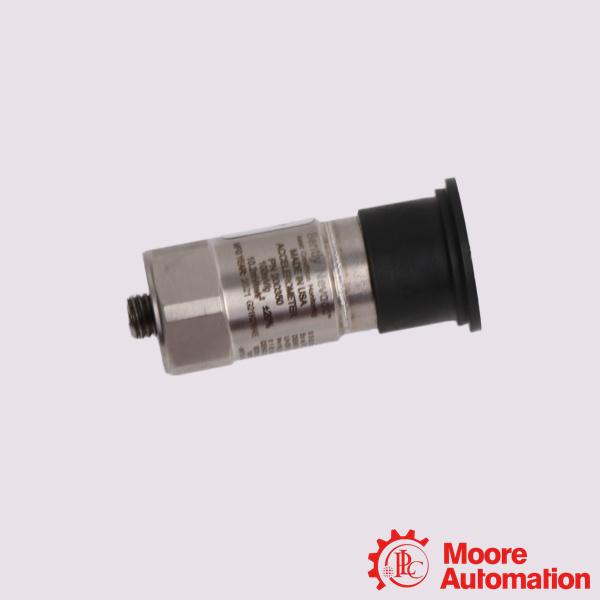

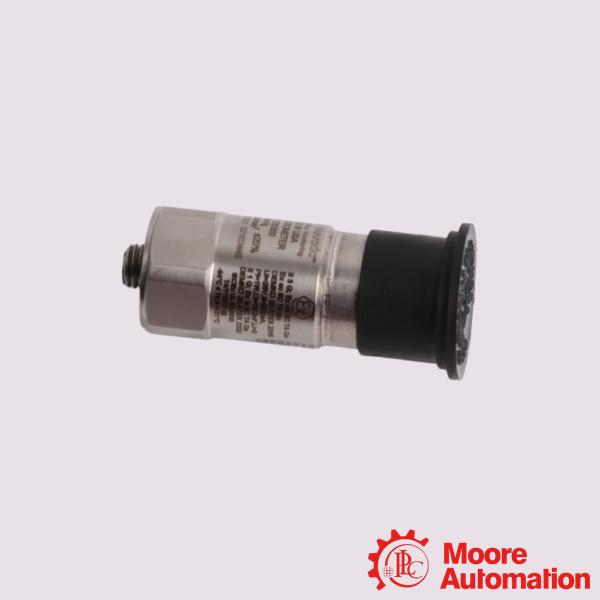

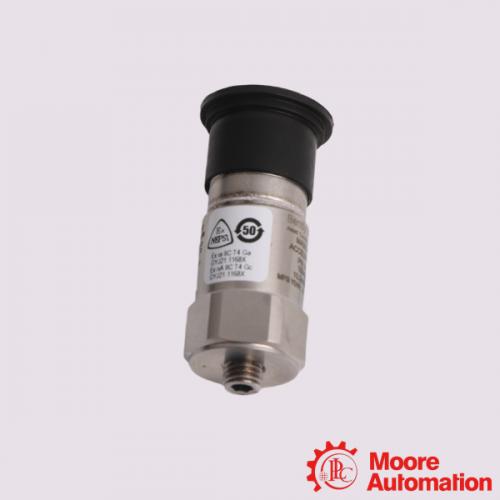

Bently Nevada 200350-00-00-CN Accelerometer

Inquiry now

Mfr. Part Number:	200350-00-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 200350-00-00-CN Accelerometer

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 200350-00-00-CN Accelerometer is a general-purpose, case-mounted seismic transducer designed for use with the Trendmaster Pro Constant Current Direct Input Card and the Seismic Direct Input Card. Housed in a hermetically sealed stainless steel case, the 200350-00-00-CN Accelerometer offers an exceptionally rugged design that is well suited for harsh industrial environments. Each unit features a top-mounted, 2-pin MIL-C5015 connector, enabling easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing provides multiple mounting options. The 200350-00-00-CN Accelerometer incorporates a piezoelectric sensing element that generates charge when subjected to vibration.

Application:

Power Generation: Fossil-fuel, nuclear, and hydro plants tracking continuous turbine and generator health.
Oil, Gas, and Petrochemicals: On-shore and off-shore processing plants monitoring critical pumps, compressors, and refining equipment.
Pulp and Paper Mill Processing: Roller bearing tracking on high-stress processing lines.
Water and Wastewater Management: Continuous operations monitoring for massive water distribution pumps.

Frequently Asked Questions (FAQ)

Q:Is a cable included under this part number?
A:No, the base configuration suffix -CN only designates the bare accelerometer unit with integrated pins. Compatible 2-conductor twisted shielded pairs (such as the Bently Nevada 9571 cable series) must be purchased separately based on your specific run length requirements.
Q:How should the sensor be mounted to ensure data accuracy?
A:The sensor should be screwed onto a flat, smooth, and clean machine casing surface using the provided ¼-28 stud. The manufacturer advises using a mounting torque between 2 to 5 ft-lb (2.7 to 6.8 N-m). Under-torquing leads to poor high-frequency response transmissibility, while over-torquing can crack the internal crystal sensor base.

Q:Can I use this sensor with negative voltage systems?
A:No. Unlike legacy Bently Nevada proximity probes that rely on a -24 VDC architecture, the 200350 accelerometer requires positive constant current excitation voltage (+18 to +28 VDC). Using negative excitation voltage (-Vex) will fault the system or permanently damage the internal ceramic shear electronics.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：200350-00-00-CN
Mounting Stud	¼-28 SS w/ Brass tip, 0.5”
Tolerance	100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)
Sensitivity	100 mV/g ±20% (10.2 mV/m/s^2 ±20%)
Measurement Range	± 50 g
Transverse Sensitivity	≤ 7%
Amplitude Linearity	± 1%
Output Bias Voltage	8 to 12 VDC
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Operating Temperature Range	-65°F to +250 ºF (-54°C to +121 ºC)
Shock Survivability	5,000 g pk
