in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

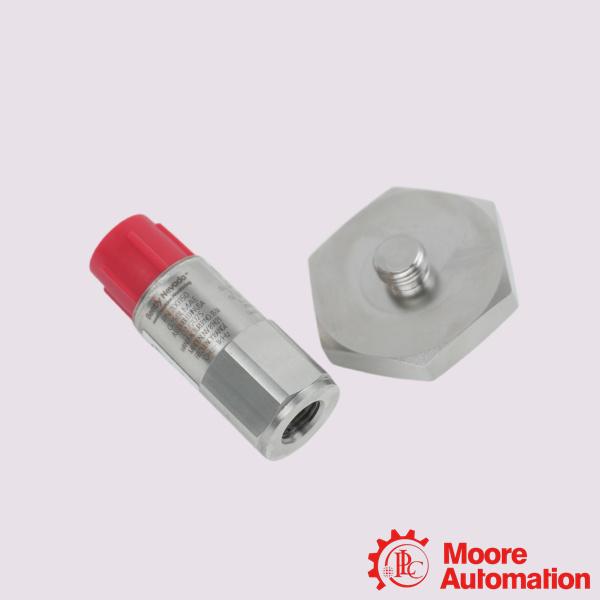

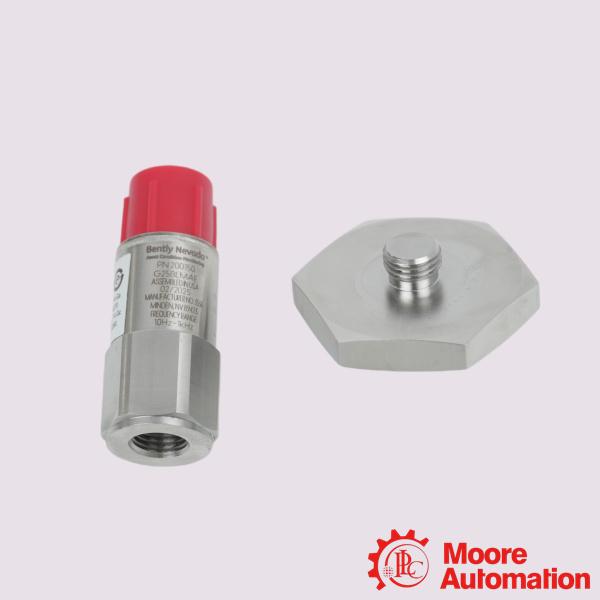

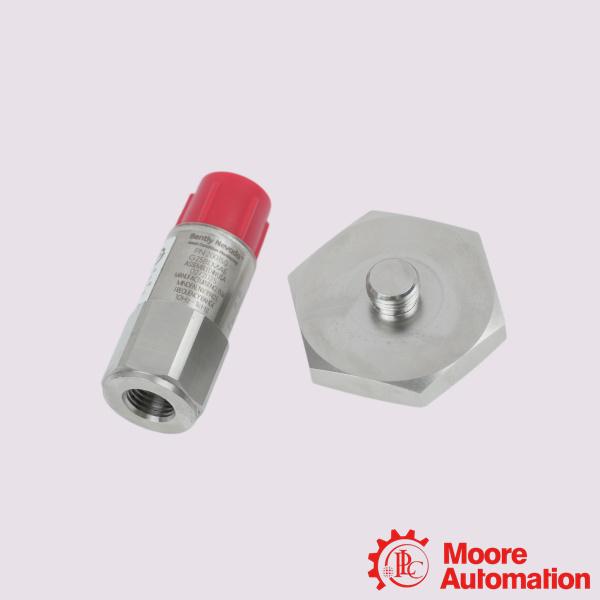

Bently Nevada 200150-21-CN Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-21-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-21-CN is a general-purpose, case-mounted piezoelectric accelerometer designed primarily for the Trendmaster Pro and Trendmaster 2000 condition monitoring systems. The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when it is subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
Application:
Oil & Gas Refineries: Deployed on secondary auxiliary rotating machinery.
Power Generation Facilities: Tracking balance-of-plant (BOP) assets like auxiliary feed pumps and cooling water systems.
Water & Wastewater Treatment: Guarding continuous-run intake and processing pumps.
Pulp, Paper, and Chemical Mills: Ideal for aggressive environments prone to ambient moisture and chemical exposure.
Frequently Asked Questions (FAQ)
Q:What systems are compatible with this accelerometer?
A:The sensor interfaces with the Trendmaster Pro and Trendmaster 2000 architectures. It connects directly via specialized cables to the 200200 proTIM-R, 200250 proTIM-C, 200100 Dual Accel-to-Velocity flexiTIM module, and the 1900/25 or 1900/27 stand-alone vibration monitors.
Q:What does the "-CN" approval rating signify?
A:The -CN option indicates country-specific certifications for explosive or hazardous locations. It brings compliance with NEPSI standards for China, ensuring the transducer satisfies intrinsic safety guidelines required in regional industrial environments.
Q:Can this sensor be mounted on any surface?
A:It features a 1/4-28 UNF mounting configuration. For high-frequency accuracy, it must be screwed tightly into a prepared surface using a torque between 2.7 and 6.8 N·m (2 to 5 ft·lbf).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-21-CN |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
