in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

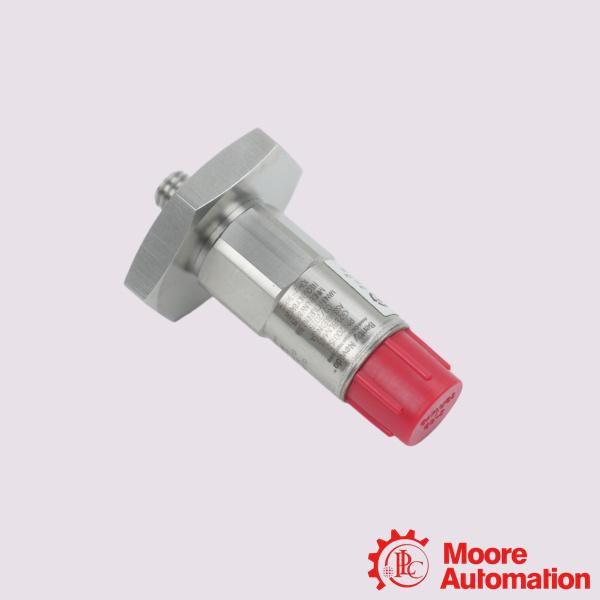

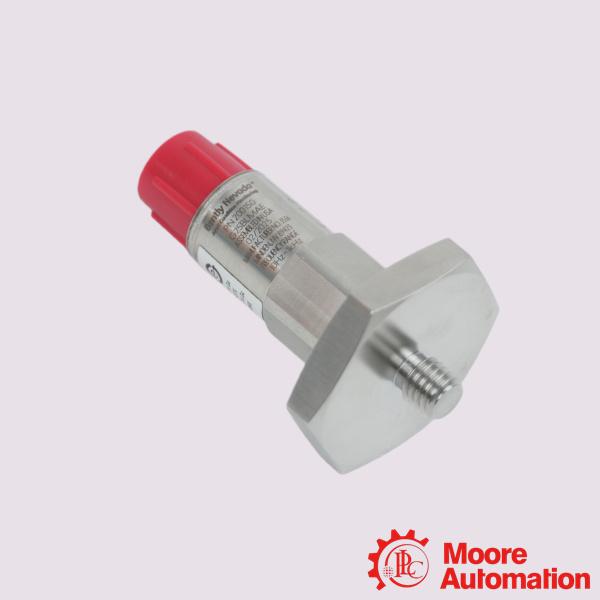

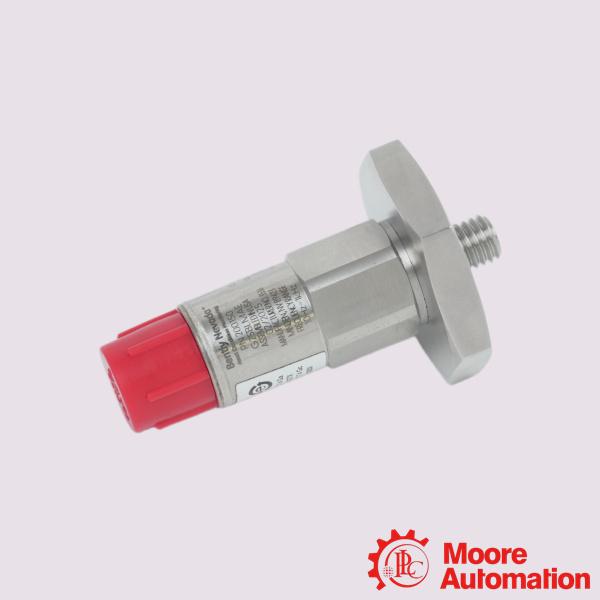

Bently Nevada 200150-20-CN Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-20-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-20-CN is a general-purpose The "-20" designates its specific mechanical mounting configuration, while the "-CN" suffix indicates country-specific regulatory approvals for mainland China. The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
Application:
Electric Motors: Continuous structural casing monitoring to track stator and rotor mechanical breakdown.
Centrifugal Pumps: Detection of cavitation, shaft misalignment, and impeller imbalances.
Industrial Fans & Blowers: Monitoring structural looseness or blade wear on heavy air-handling equipment.
Small Gearboxes: Vibration trend tracking across intermediate speed reducers.
Frequently Asked Questions (FAQ)
Q:What is the function of this sensor?
A:It leverages a built-in ceramic piezoelectric element to convert mechanical stress caused by machinery vibration into a standard differential voltage signal (sensitivity of 100 mV/g). This raw information is sent to a monitoring system to analyze machine anomalies like misalignment or unbalance.
Q:Which monitoring systems are compatible?
A:This case-mounted seismic transducer is built primarily to interface with the Trendmaster Pro Transducer Interface Modules (proTIMs) such as the 200200 proTIM-R and 200250 proTIM.
Q:How often must the sensor be calibrated?
A:Annual calibration is highly advised. Field verification can be easily achieved using industry-compliant diagnostic devices like The Modal Shop 9100D Portable Vibration Calibrator to generate NIST-traceable certificates and test alert trip parameters on the spot.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-20-CN |
|
Mounting Stud Option |
3/8-24 thread, 1 magnetic mount base |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
