in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

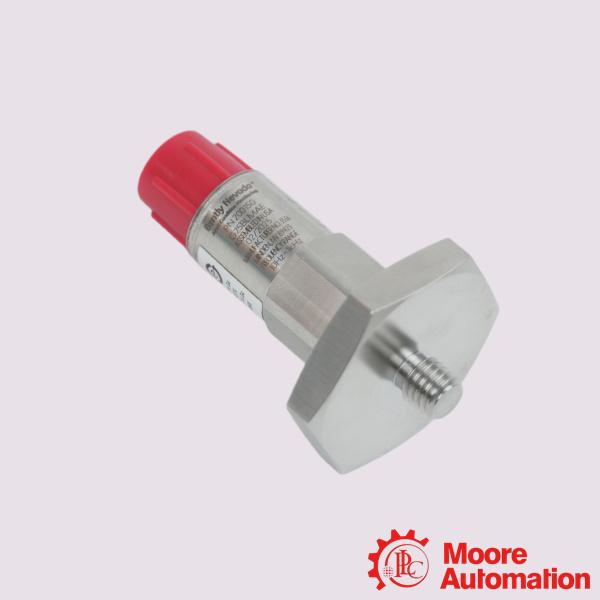

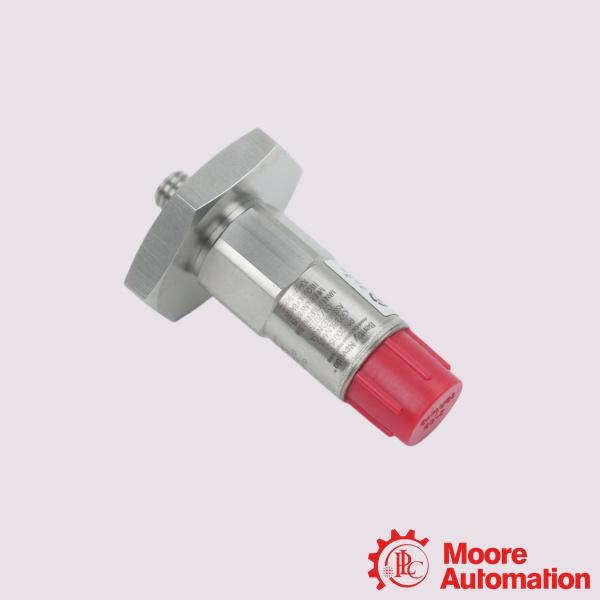

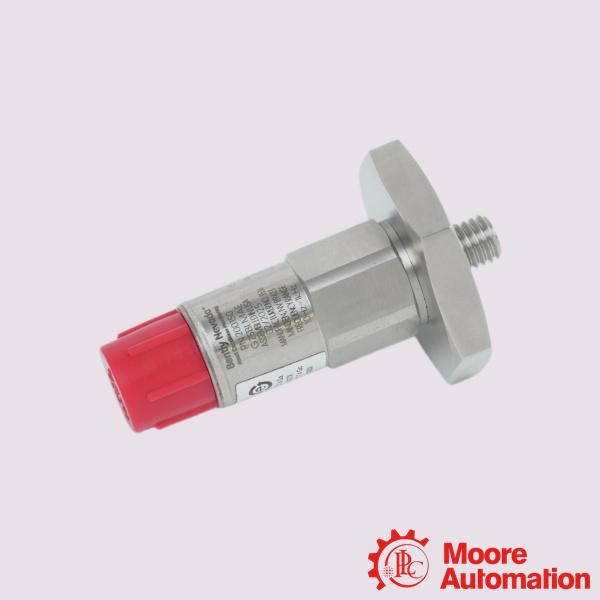

Bently Nevada 200150-17-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-17-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-17-05 is a general-purpose, case-mounted piezoelectric accelerometer engineered primarily for Balance of Plant (BOP) asset condition monitoring within harsh industrial environments. The 20015x Accelerometers are general purpose, wide frequency. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
Application:
Pumping Stations: Used extensively on centrifugal, axial, and reciprocating pumps in water treatment, chemical processing, and petrochemical refining.
Air Handling & Ventilation: Deployed on large industrial fans, blowers, and exhaust systems to prevent unbalance and catastrophic blade failure.
Power & Processing Plants: Monitors standard motors, small air compressors, and secondary Balance of Plant rotating machinery.
Industrial Gearboxes: Track gear mesh frequencies and mechanical degradation within automated manufacturing lines.
Frequently Asked Questions (FAQ)
Q:Why does this model use a shear-geometry design?
A:The internal piezoelectric ceramic sensing element is arranged in a shear-geometry configuration. This specialized layout physically decouples the internal crystal from base strain, structural twisting, and rapid thermal transients, preventing false vibration signals.
Q:How do I connect the sensor, and what are the cabling rules?
A:The transducer features a top-mounted, 5-pin 1/2-20 threaded connector. It links via standard 200151 interface cables (4-conductor, 22 AWG with braided shielding). The connection provides an IP67 environmental seal. Avoid flexing or bending the interconnecting cables if ambient operating temperatures drop below -20°C (-4°F), as this can compromise the PVC outer jacket.
Q:What does a sudden drop in bias voltage mean?
A:The normal bias voltage for this sensor hovers around 2.5 VDC. A sudden drop close to 0 V usually points to a short circuit in the interconnecting cable or moisture ingress inside the 5-pin connection head. A jump up toward 5 V indicates an open circuit or broken conductor pin.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-17-05 |
|
Mounting Stud Option |
3/8-24 to 3/8-16 UNC 1-3/8 inch hex plate stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
