in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

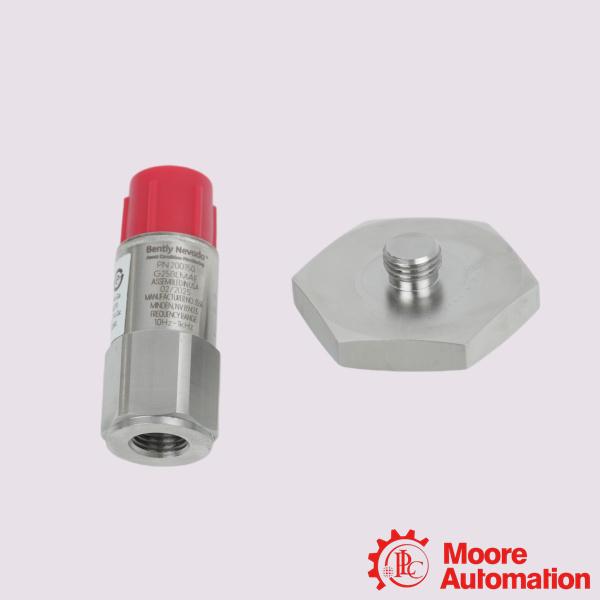

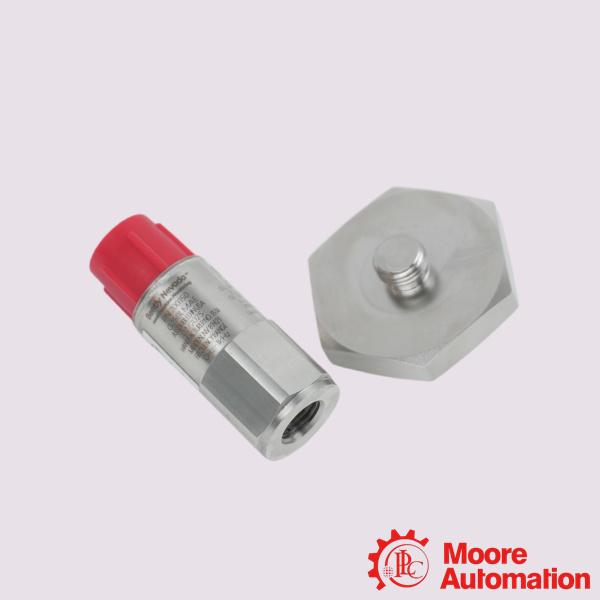

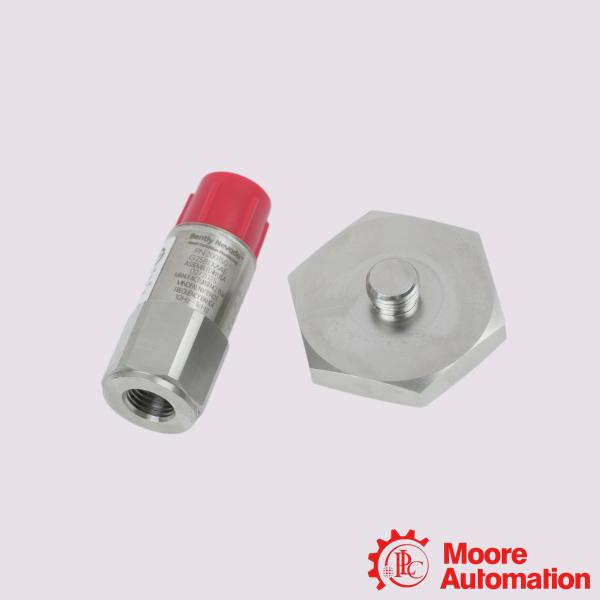

Bently Nevada 200150-18-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-18-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The 200150-18-05 is a general-purpose, housing-mounted Trendmaster Pro accelerometer used to measure high-frequency housing vibrations in rotating machinery. The 20015x series accelerometers are general-purpose, wideband, housing-mounted seismic sensors compatible with Trendmaster ProTIM series modules. This accelerometer is also compatible with the Trendmaster 2000 system and can be used with the following modules and monitors: the 200100 dual-channel accelerometer-to-velocity conversion flexiTIM module, the 89130-01 accelerometer-to-velocity conversion TIM, and the 1900/25 and 1900/27 monitors.
Application:
Oil & Gas / Petrochemical Plants: Monitoring hundreds of auxiliary process pumps and air handling units spread across a refinery.
Power Generation Facilities: Checking the health of balance-of-plant backup generators, fans, and cooling towers.
Water & Wastewater Treatment: Continuous surveillance of high-duty water transport and processing pumps.
Pulp & Paper / Manufacturing: Tracking continuous process roll components, fans, and motor drives.
Frequently Asked Questions (FAQ)
Q:What kind of connection cable does it require?
A:The transducer uses a top-mounted 5-pin connector for signal output. It typically mates with a 4-conductor, 22 AWG braided shield cable featuring an outer PVC jacket. When properly coupled, the connection provides an IP67 seal against dust and moisture ingress.
Q:Can this sensor be calibrated in the field?
A:Yes. The 200150 family can be checked using standard portable shakers. For instance, The Modal Shop 9110D Portable Vibration Calibrator offers specific calibration templates and firmware updates to seamlessly test Bently Nevada Trendmaster sensors.
Q:What is the required installation torque?
A:The sensor requires a mounting torque between 2.7 to 6.8 N⋅m (2 to 5 ft⋅lbf) to guarantee linear high-frequency transmission. Overtightening can permanently damage the internal ceramic shear element.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-18-05 |
|
Mounting Stud Option |
3/8-24 to M8x1 1-3/8 inch hex plate stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
