in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:
Bently Nevada 200150-16-CN Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-16-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

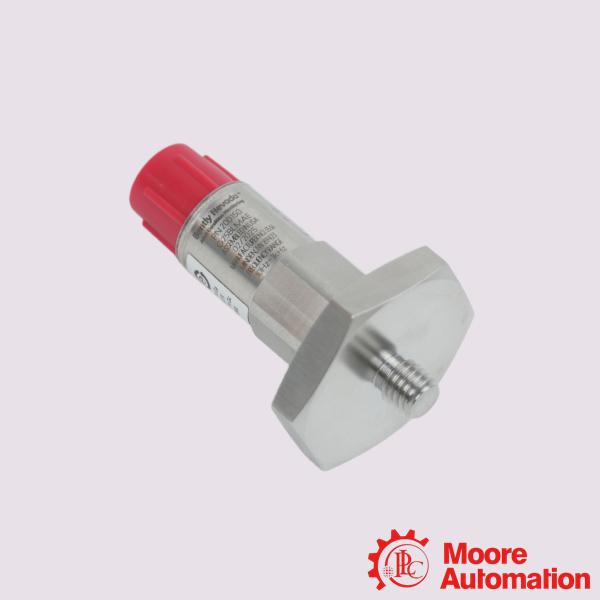

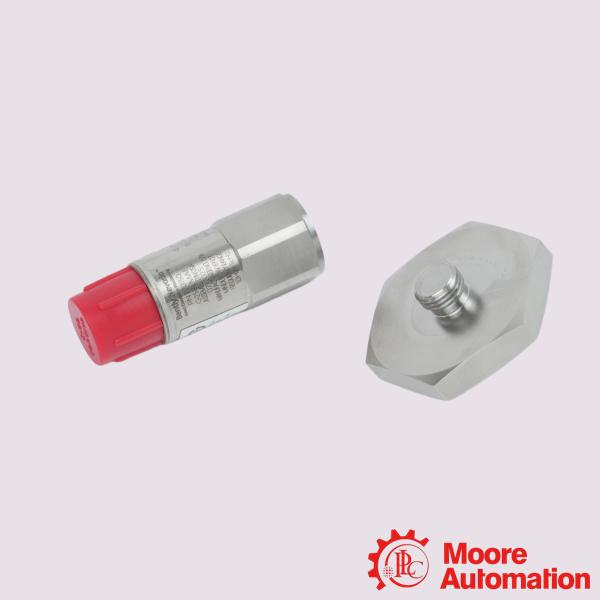

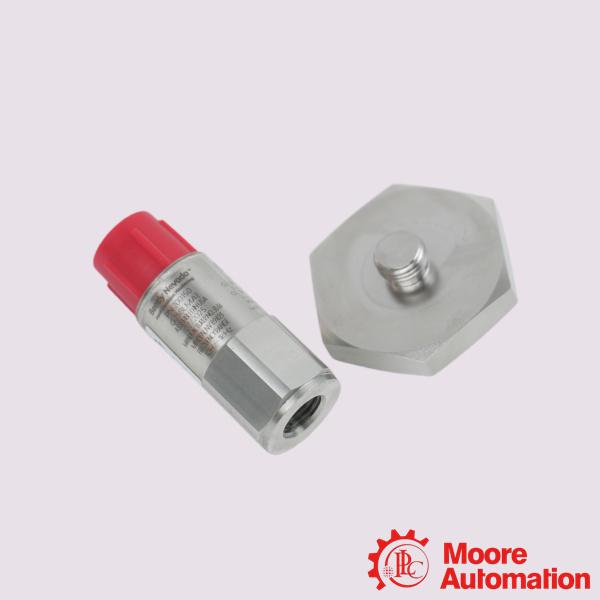

The Bently Nevada 200150-16-CN is a general-purpose, case mounted piezoelectric accelerometer . It acts as a baseline vibration sensor to track the health of secondary, low-to-medium speed rotating machinery before costly mechanical failures occur. The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
Application:
Power Plants & Utilities: Monitoring large cooling tower fans, water circulation pumps, ventilation blowers, and secondary feed-water pumps.
Oil & Gas Refining: Casing vibration monitoring for pipeline pumps, small centrifugal gas compressors, and auxiliary lube oil pumps.
Water & Wastewater Treatment: Tracking bearing health on large intake pumps, sewage lift pumps, and aeration tank blowers.
Mining & Metal Processing: Condition monitoring on large conveyor belt gearboxes, rock crushers, and ventilation air handlers.
Frequently Asked Questions (FAQ)
Q:What cabling is compatible with this model?
A:It relies on the 200151 or 200152 interface cable assemblies. These matching cables provide an IP67-rated seal at the terminal connection point, ensuring protection against moisture and dust ingress.
Q:Can this sensor be used with any vibration monitor?
A:No. The 200150 series is purpose-built to operate alongside the Trendmaster Pro system architecture. It interfaces directly with a matching 200200 ProTIM-R or 200250 module, rather than operating as a generic 3-wire or 4-20mA sensor on third-party hardware.
Q:Can I connect this sensor directly to a 3500/42M Machinery Protection monitor?
A:No. The 200150 is built specifically for Trendmaster-architecture hardware and localized Transducer Interface Modules (TIMs or proTIMs). Connecting it directly to a 3500 monitor's standard proximity or seismic card terminal strip will cause an "unsafe/Not OK" status loop due to voltage mismatches.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-16-CN |
|
Mounting Stud Option |
3/8-24 to 1/2-13 UNC, 3/4 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
