in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

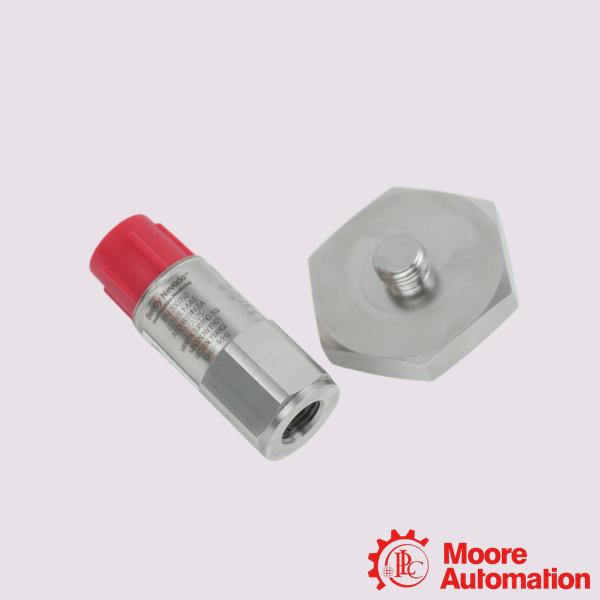

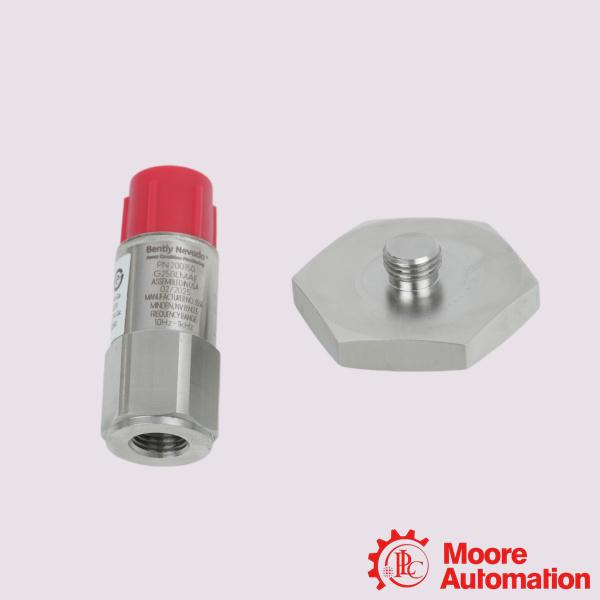

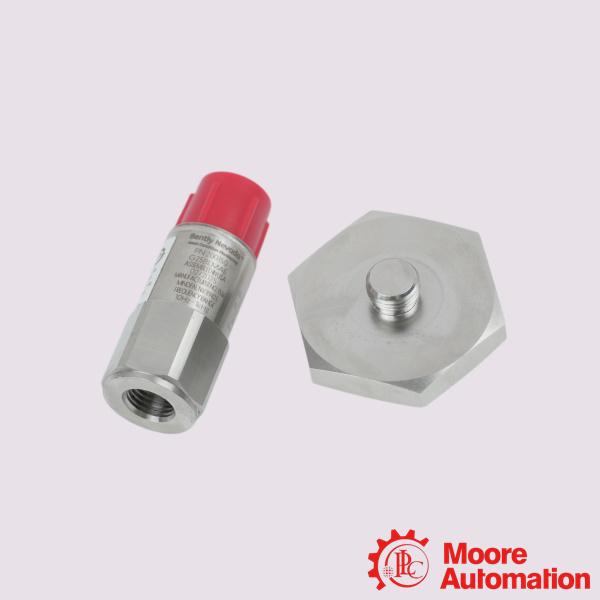

Bently Nevada 200150-15-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-15-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-15-05 is a general-purpose, case-mounted piezoelectric accelerometer. It translates mechanical vibration into a differential voltage signal to help detect early faults in rotating machinery. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM, as well as the 1900/25 and 1900/27 monitors.
Application:
Oil and Gas: Implemented on auxiliary machinery across upstream extraction sites, refineries, and downstream distribution hubs.
Power Generation: Used for balance-of-plant assets in thermal, hydro, and nuclear facilities to prevent unplanned outages.
Water and Wastewater Treatment: Monitors continuous-duty water distribution and fluid processing pumps.
Chemical and Petrochemical Processing: Withstands aggressive, hazardous, and corrosive environments while continuously tracking process pump health.
Frequently Asked Questions (FAQ)
Q:How is this sensor calibrated?
A:You can field-verify the sensor accuracy using a Portable Vibration Calibrator (such as Model 9100D or 9110D). Set the calibrator to its reference point (80 Hz or 159.2 Hz) to verify if the output tracks smoothly at 100 mV/g.
Q:What are the torque specification guidelines for installation?
A:When attaching the accelerometer to the -15 mounting stud adapter, apply a mounting torque between 2.7 and 6.8 N·m (2 to 5 ft·lbf). Avoid over-tightening, as excessive torque can permanently distort or fracture the internal ceramic shear sensing element.
Q:Can standard industrial cables be used?
A:No, the 200150 requires a specialized 5-pin 1/2-20 molded cable assembly (such as the 200151 or 200152 series). These cables have a minimum 85% braided shield coverage with a drain wire to insulate low-noise signals from EMI/RFI. They feature an IP67 rating and use DC4 insulating compound at the connector joints to resist moisture penetration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-15-05 |
|
Mounting Stud Option |
3/8-24 to 3/8-16 UNC, 3/4 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
