in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

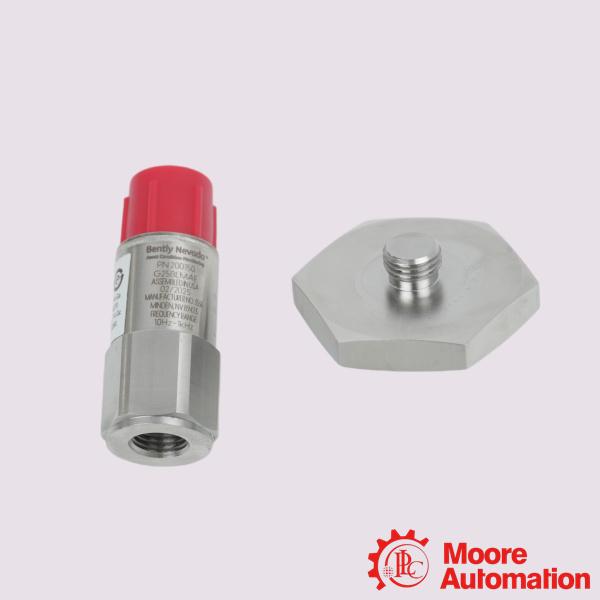

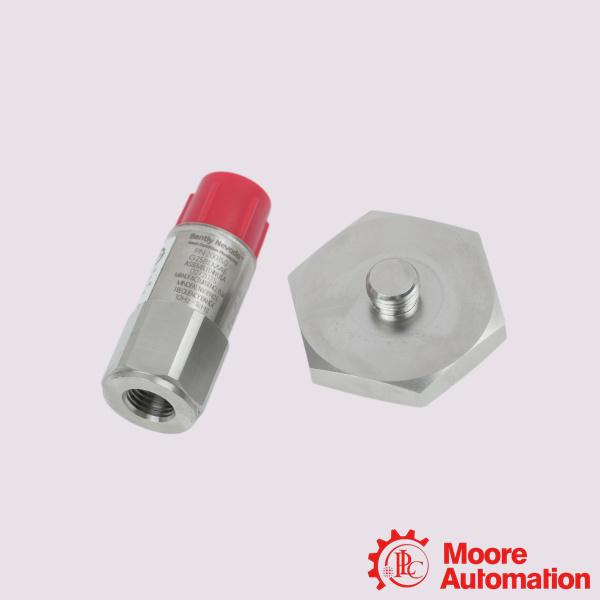

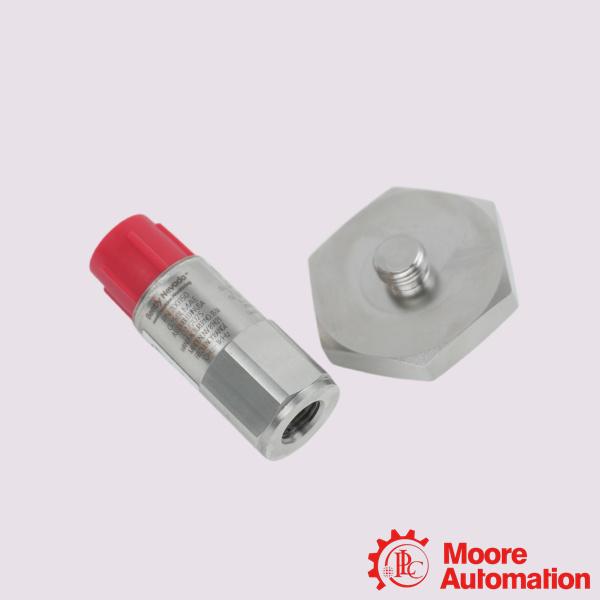

Bently Nevada 200150-09-CN Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-09-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-09-CN is a Trendmaster Pro general-purpose, case-mounted seismic accelerometer. It is primarily engineered for wide-frequency vibration monitoring on rotating industrial machinery. The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
Application:
Oil & Gas Refineries: Tracks the casing health of midstream pipelines, process pumps, centrifuges, and low-pressure gas compressors handling critical fluid transfer.
hemical & Petrochemical Processing: Monitors continuous-duty mixers, agitators, and exhaust fans operating in corrosive or volatile process lines where manual inspections are dangerous.
Water & Wastewater Treatment: Deployed directly on large intake pumps, sludge dewatering centrifuges, and aeration blowers that require remote, 24/7 uptime tracking.
Pulp, Paper, & Steel Mills: Tracks heavy-duty roller bearings, conveyor drives, and large material-handling fans subjected to intense heat and cyclical shock loads.
Frequently Asked Questions (FAQ)
Q:What system hardware does this sensor interface with?
A:The 200150 is designed to connect directly into the Bently Nevada Trendmaster ProTIM (Processor Transducer Interface Module) or compatible distributed monitoring modules like the 1900/25 and 1900/27 monitors. These systems integrate the sensor's raw acceleration data into a standard velocity measurement for monitoring systems like System 1.
Q:What does the "-CN" suffix mean for installation?
A:The -CN suffix indicates that the component satisfies hazardous area approvals specific to China. This implies the product features specialized housing stamps or metrology passports necessary to clear local safety audits for explosive, intrinsically safe environments.
Q:What cabling must be paired with this accelerometer?
A:It uses a specialized 4-conductor, 22 AWG twisted-pair shielded cable with a PVC outer jacket (such as the 200151 or 200152 families). The connectors provide a tight IP67 seal against dust and water infiltration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-09-CN |
|
Mounting Stud Option |
3/8-24 to 3/4 NPT, 1-1/4 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
