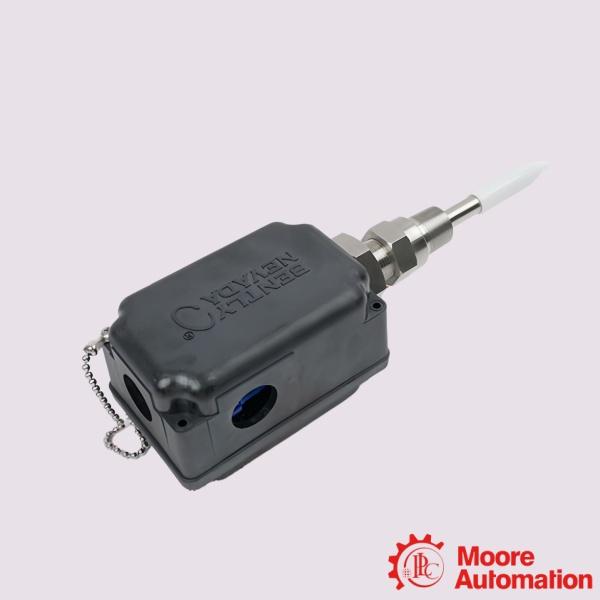

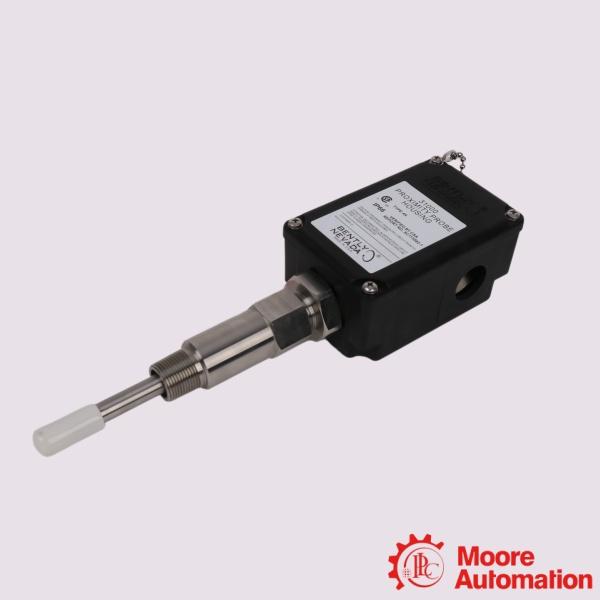

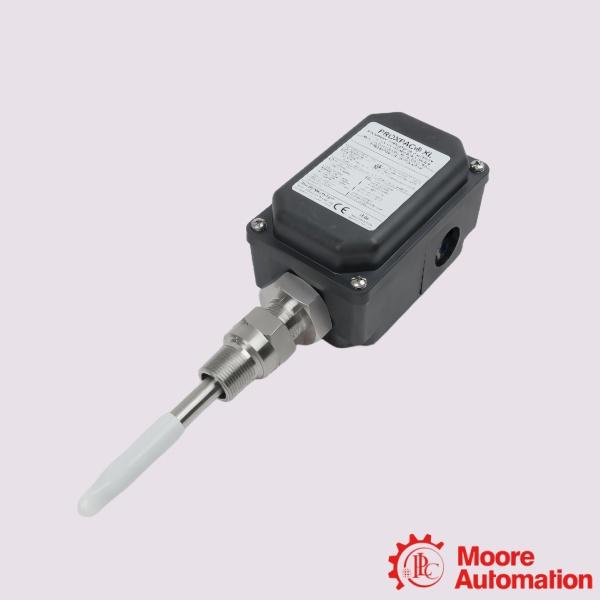

Bently Nevada 32000-30-05-10-088-07-02 Metric Proximity Probe Housing Assemblies

Description

The Bently Nevada 32000-30-05-10-088-07-02 is a metric proximity probe housing assembly designed for mounting 3300 XL 8 mm proximity probes through machine casings in radial vibration and Keyphasor® measurement applications. The assembly provides external access to the probe and extension cable, allowing probe gap adjustment or probe replacement without dismantling the machine. It features a durable polyphenylene sulfide (PPS) housing with corrosion-resistant stainless steel components and is supplied with a 3300 XL 8 mm probe with connector protector and multiple approvals, a 0.5 m probe cable, a 100 mm standoff adapter, an 88 mm probe penetration length, a PG21 × M20 conduit fitting, and a 3/4-14 NPT mounting thread. The housing complies with API 670 requirements for externally mounted proximity probe housings and is suitable for industrial machinery condition monitoring applications.

Parameter

Model: 32000-30-05-10-088-07-02 Proximity Probe
Probe with Connector: 30-3300 XL 8 mm probe, with connector protector, multiple approvals
Probe Cable Length: 05-0.5 m (20 in)
Standoff Adapter Length (Option C Dimension): 10-100 mm
Probe Penetration Option (Option D Dimension): 088-88 mm
MFittings: 07-One PG21 x M20 fitting Two plugs
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option.)

Frequently asked questions

Q:What is the Bently Nevada 32000-30-05-10-088-07-02?
A:The Bently Nevada 32000-30-05-10-088-07-02 is a metric proximity probe housing assembly designed for mounting a 3300 XL 8 mm proximity probe through a machine casing for radial vibration and Keyphasor® measurement applications. It provides mechanical protection while allowing external access to the probe and extension cable.

Q:Does the 32000-30-05-10-088-07-02 comply with API 670?
A:Yes. The 31000 and 32000 proximity probe housing assemblies are designed to comply with the API 670 standard for externally mounted proximity probe housings.

Q:What are the installation dimensions of this model?
A:The 32000-30-05-10-088-07-02 includes a 100 mm standoff adapter (Option C) and an 88 mm probe penetration length (Option D), allowing it to accommodate specific machine casing configurations.

Application areas

The Bently Nevada 32000-30-05-10-088-07-02 proximity probe housing assembly is intended for applications where proximity probes are mounted through the machine casing Typical application areas include:

• Oil & Gas Refineries & Petrochemical Plants: Resistant to corrosive process gasses, hydrocarbon vapors, and chemical splashes.
• Thermal & Nuclear Power Plants: Capable of withstand continuous vibration, thermal cycling on turbine decks, and harsh ambient environments.
• Hazardous Areas: Designed to comply with explosion-proof and intrinsically safe installation loops (when paired with certified Bently Nevada sensors and barriers).
